Pesticide 4 Side Sealing Packing Machine: The Complete Buying Guide in 2024

Are you trying to find a trustworthy, effective technique to package your pesticides? Have you been trying to find a machine to help you produce goods more quickly and efficiently without sacrificing their integrity or safety? If so, you might be curious about the newest packaging technology innovation—the pesticide 4 side sealing packing machine.

In agricultural and pest management, pesticide packaging ensures efficacy, safety, and adherence to regulations. As the demand for efficient and dependable packaging solutions increases, the pesticide 4 side sealing packing machine is making waves in the market.

The pesticide 4 side sealing machine provides a novel solution to packaging using a tamper-proof and secure seal that is crucial when handling sensitive and possibly dangerous materials like pesticides. Knowing the features and advantages of the pesticide 4 side sealing packing machine is vital for businesses aiming to stay ahead of the market competitors.

In this comprehensive buying guide, we will explore the details of this amazing technology. Join us on this journey!

Add a header to begin generating the table of contents

1.What is a pesticide 4 side sealing packing machine?

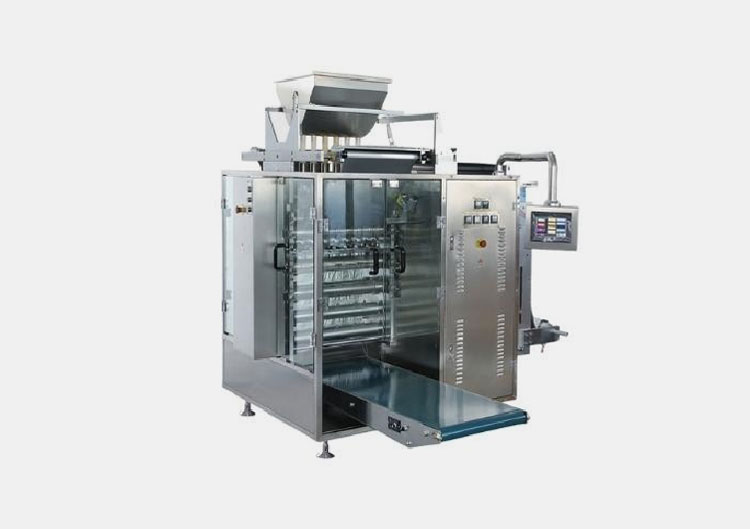

Pesticide 4 Side Sealing Packing Machine

The pesticide 4 side sealing packing machine is a remarkable piece of equipment used in the agricultural industries to package various pesticide chemicals efficiently. The entire packaging process of different products, including pesticide packing, is increasingly automated in today's industrial world.

Manufacturers can satisfy their current needs and remain competitive using automated pesticide 4 side sealing packing machines. The device helps businesses save time and money by streamlining the intricate production process and reducing operating expenses.

2.What are the benefits of using a pesticide 4 side sealing packaging machine?

Picture Courtesy: Forbes

Given the intense rivalry in the market today, manufacturers must figure out how to differentiate their brands on the shelves from those of their rivals. Additionally, buyers tend to favor a product with an eye-catching and innovative packaging design. The pesticide 4 side sealing packing machine is beneficial in this regard.

In addition to sparing you from the tiresome manual packaging, the automated processing of the device will benefit you in the following ways:

Cost-effective

Cost-effective Equipment

A pesticide 4 side sealing packing machine may be expensive initially, but the cost savings are substantial in the long run. The efficiency and caliber of output contribute to the company’s growth and improve return on investment.

Furthermore, the automation of the process reduces labor costs, time consumption, and human errors.

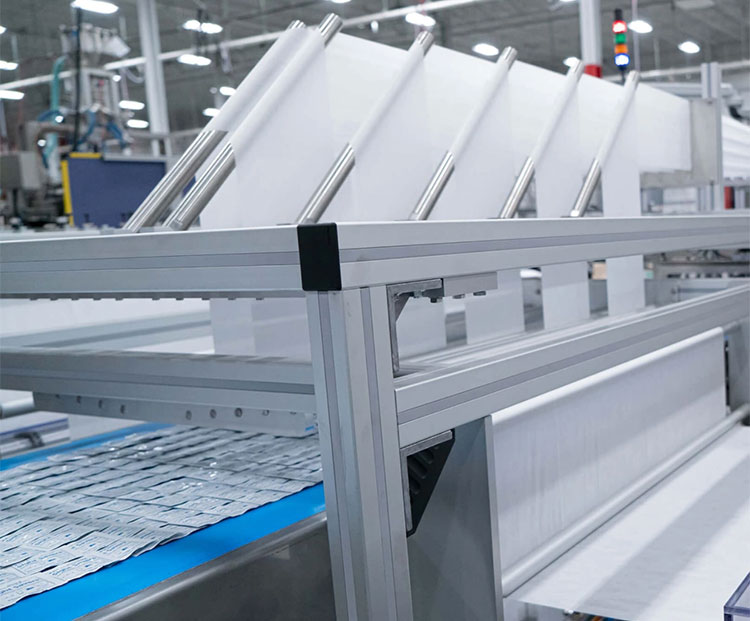

Efficient and Rapid Production

Efficient & Rapid Production – Picture Courtesy: Multi-Pack Solutions

A manufacturer with high production demand always seeks speed while maintaining efficiency. The pesticide 4 side sealing machine offers rapid production with efficient and accurate results, making it an ideal tool for various industries.

Precision

Precise Filling & Sachet Production – Picture Courtesy: Pestfix

Automatic weighing and metering mechanisms are installed in the pesticide 4 side sealing packing machine. Precise product loading in the sachets is made possible by these technologies. Furthermore, packaging is made reliably in terms of size and shape every time with an exact forming station. Thus, uniformity in each batch is ensured.

Flexibility

Flexibility & Versatility

Certain variations of the pesticide 4 side sealing packing machine are highly versatile and adaptable, making them an excellent industrial tool that helps manufacturers process several products.

Operational and Maintenance Ease

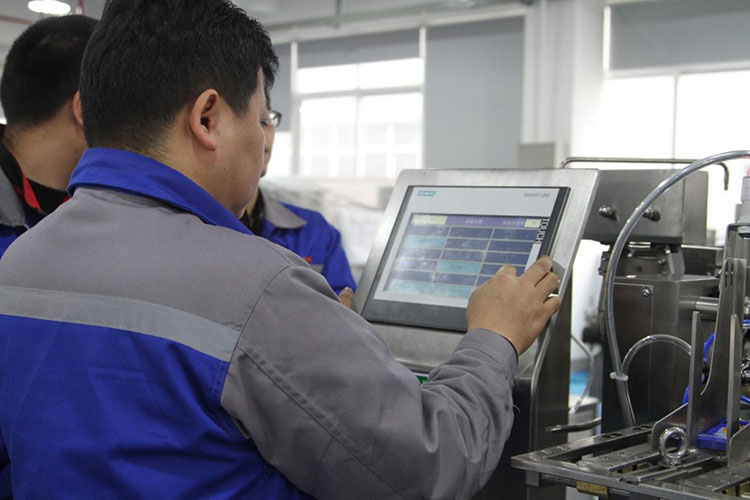

Operational & Maintenance Ease – Picture Courtesy: ECHO Machinery

Strong and sturdy stainless steel is used in the construction of the equipment. In addition to being corrosion resistant, this material is also easily cleaned. Because each part is simple to remove, cleaning and maintaining this machine is made easy.

Moreover, the device has a user-friendly panel system through which the entire process can be easily monitored and controlled without extensive operating training.

Brand Building

Brand Building

The automated features and reduced human intervention ensure uniform sachets production with consistent quality. This helps in the resource preservation and increased shelf life of the product, resulting in improved brand awareness of providing quality products.

3.What are the industrial applications of a pesticide 4 side sealing packing machine?

The pesticide 4 side sealing packing machine is a versatile and indispensable tool in various industrial applications. Its accuracy and effectiveness in precisely packaging pesticides and other chemicals make it useful in multiple industries. Here are a few important industrial uses:

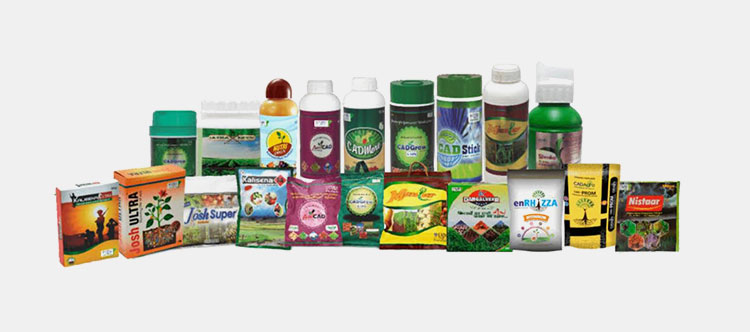

Agricultural Industry

Use of Pesticide 4 Side Sealing Packing Machine in the Agricultural Industry

The pesticide 4 side sealing packing machine has extensive applications in the agricultural sector. It efficiently packages various products such as herbicides, fungicides, insecticides, and powdered and liquid fertilizers.

Chemicals Industry

Use of Pesticide 4 Side Sealing Packing Machine in the Chemicals Industry

In the chemical industry, the pesticide 4 side sealing packing machine packages industrial chemicals that require secure, effective, and tamper-proof storage. It ensures safety and compliance with strict industrial regulations.

Horticulture and Greenhouse Industry

Use of Pesticide 4 Side Sealing Packing Machine in the Horticulture & Greenhouse Industry – Picture Courtesy: UW Madison News

The pesticide 4 side sealing packing machine is also used in the horticulture and greenhouse industry to seal pesticides and growth regulatory chemicals for plants in secure packaging.

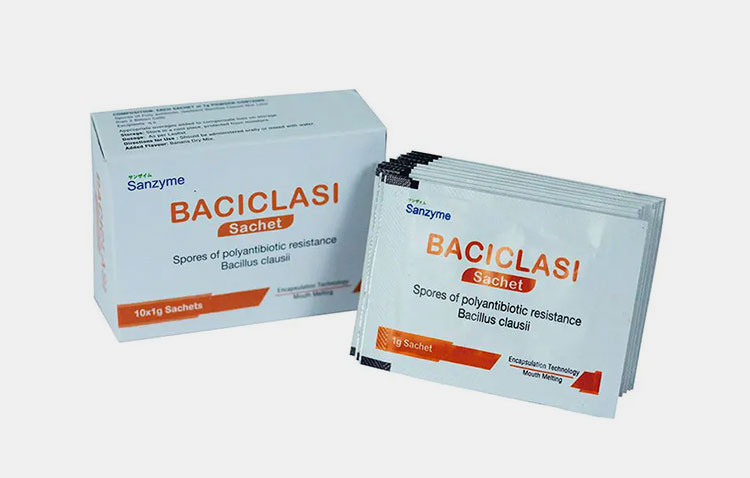

Pharmaceuticals Industry

Use of Pesticide 4 Side Sealing Packing Machine in the Pharmaceutical Industry

In the pharmaceutical industry, the pesticide 4 side sealing packing machine maintains the purity and efficacy of sensitive pharmaceutical compounds via safe and secure packaging. It packages single-dose medicines in individual sachets for convenient use.

Food and Beverage Industry

Use of Pesticide 4 Side Sealing Packing Machine in the Food & Beverage Industry

Yes, you read that right. The pesticide 4 side sealing packing machine is also utilized in the food and beverage facilities to package various powdered and liquid beverage items such as juices, food powders, coffee, tea, etc.

Veterinary Industry

Use of Pesticide 4 Side Sealing Packing Machine in the Veterinary Industry

The pesticide 4 side sealing packing machine can also be used to package various veterinary products in secure sachets, such as animal health products, feed, and medicines.

Cosmetics Industry

Use of Pesticide 4 Side Sealing Packing Machine in the Cosmetics Industry

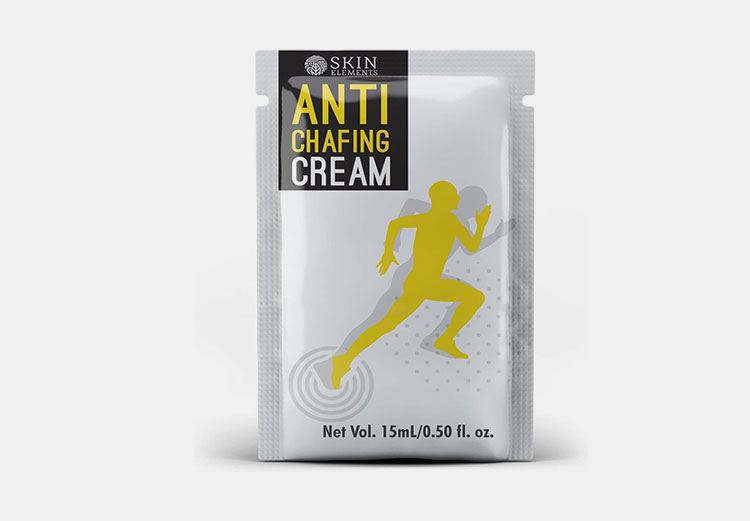

In the cosmetics industry, the pesticide 4 side sealing packing machine is used for packaging various cosmetic and personal hygiene products in sachets, such as talcum powder, hair growth oils, shampoos, creams, and baby powders.

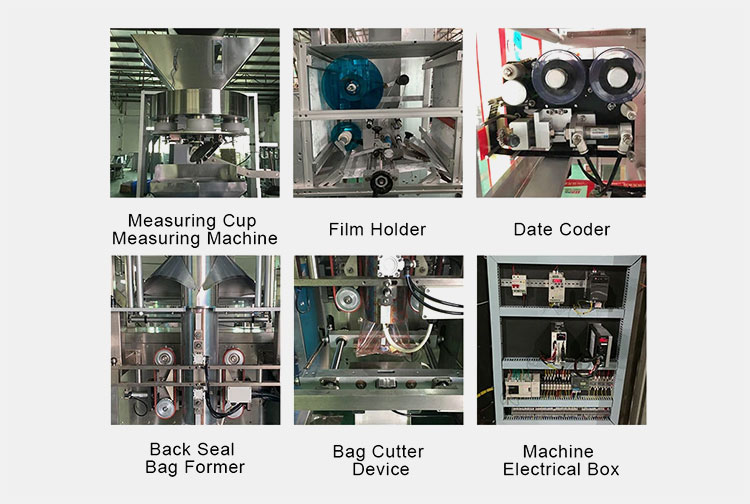

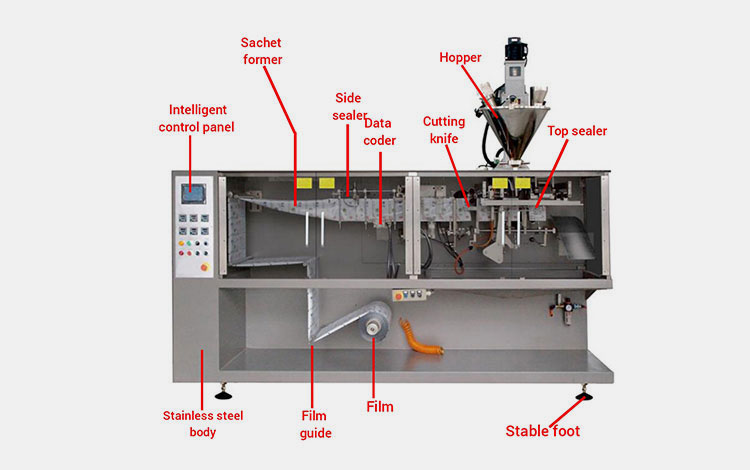

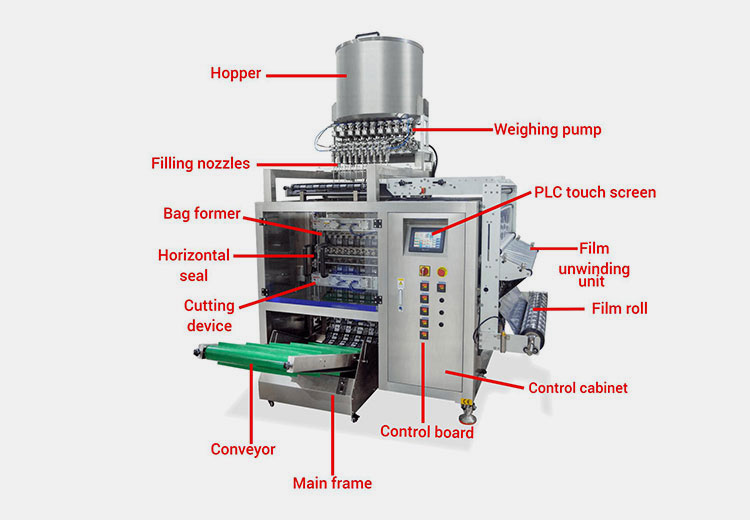

4.What are the fundamental components of a pesticide 4 side sealing packing machine?

The pesticide 4 side sealing packing machine consists of several basic components that work in perfect harmony to provide optimal functioning. Below, we'll go over each of these elements in more detail:

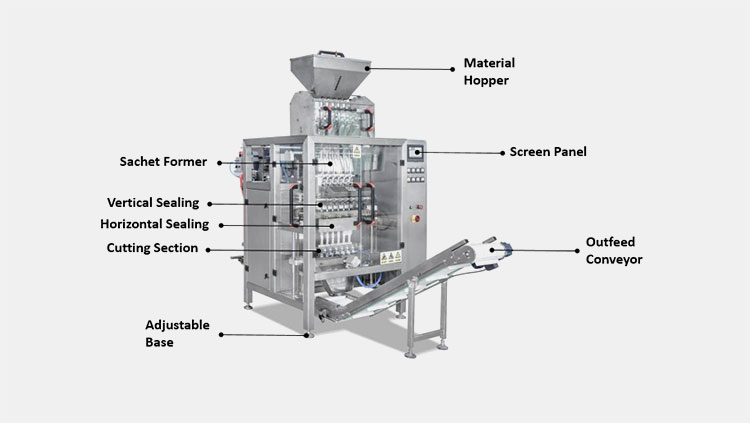

Components of the Pesticide 4 Side Sealing Packing Machine

Components	Description
Material Hopper	It is a component that temporarily holds a significant amount of the material (depending on its size and capacity) and maintains its steady supply.
Sachet Former	It comprises shaping tubes responsible for producing sachet packs of desired dimensions from the supplied packaging film.
Vertical Sealing	The vertical sealing section consists of the heated sealing bars, forming the side edges of the sachets.
Horizontal Sealing	The horizontal sealing section consists of the sealing clamps, sealing the top and bottom edges via applied pressure.
Cutting Section	This section is responsible for cutting the formed sachets using the cutting knives.

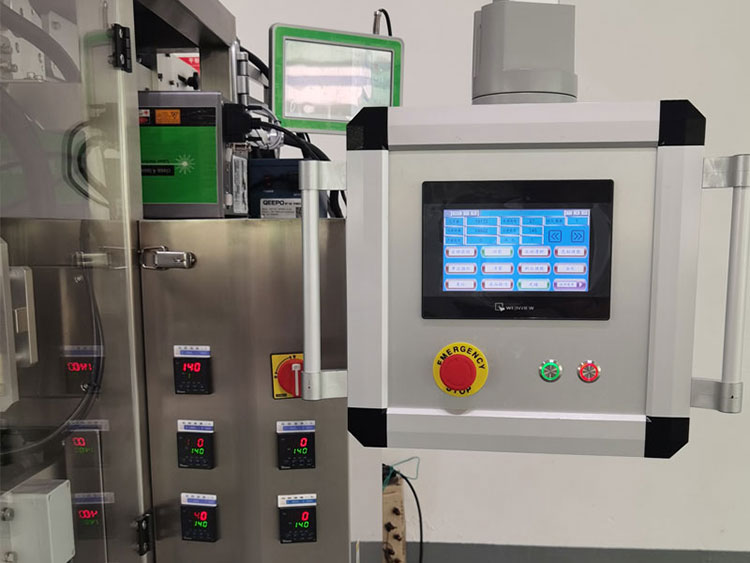

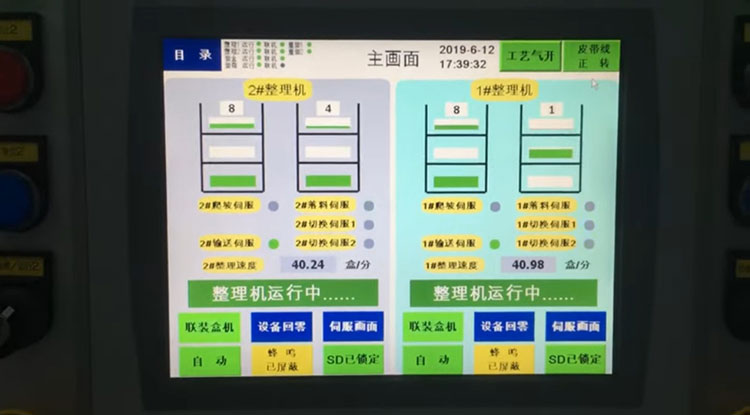

Screen Panel	It is an important component through which the entire process is controlled.
Outfeed Conveyor	The component that provides an exit to the finished sachets from the machine.
Adjustable Base	The component that offers a firm base and desired adjustments to the device.

5.How does a pesticide 4 side sealing packing machine work?

Working of the Pesticide 4 Side Sealing Packing Machine

The pesticide 4 side sealing packing machine comprises several components that perform different functions. The components work in synchronicity for optimal and streamlined operation. Here are the basic functional steps described briefly:

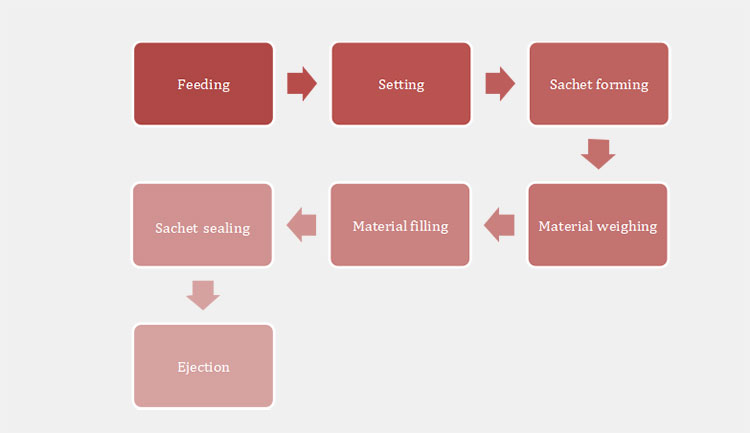

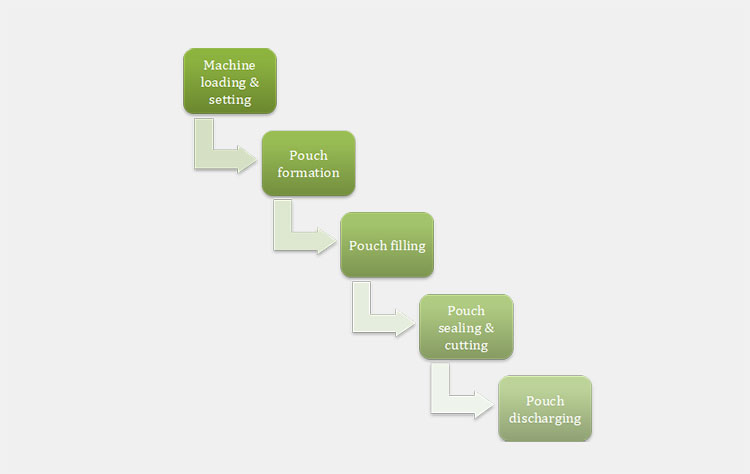

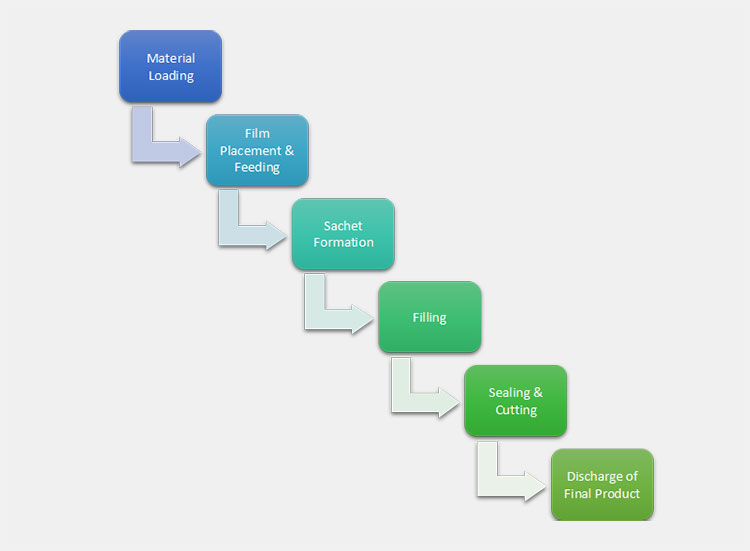

Working Steps of the Pesticide 4 Side Sealing Packing Machine

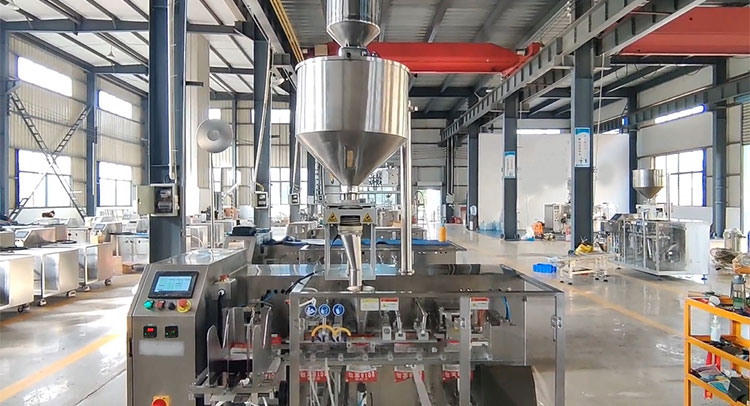

Material Loading

It is the primary step of the process in which the material gets loaded into the hopper to be supplied and processed. The material is either loaded manually or via an integrated automatic mechanism.

Film Placement and Feeding

A large packaging film reel is properly placed in the center of the film holder which is then unwound and fed to the machine for the sachet formation.

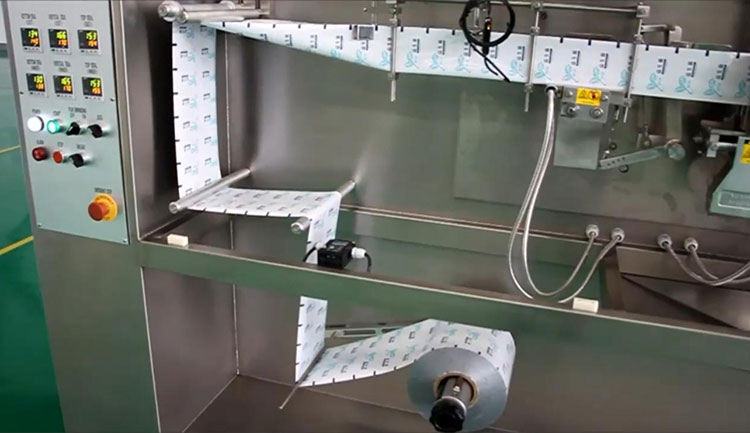

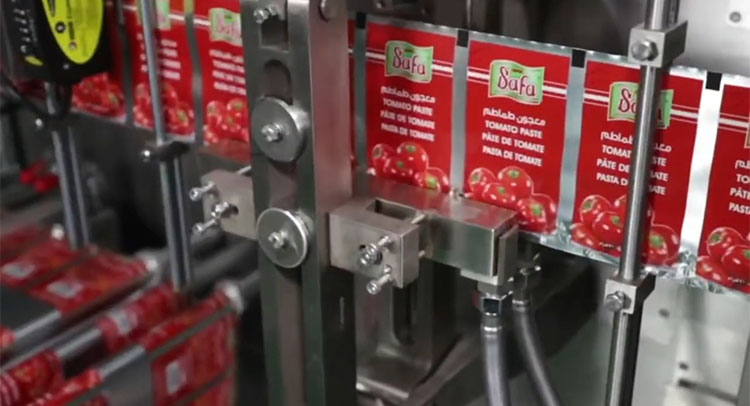

Sachet Formation

In this step, the shaping tubes fold the supplied packaging film and produce the sachets of the desired dimensions.

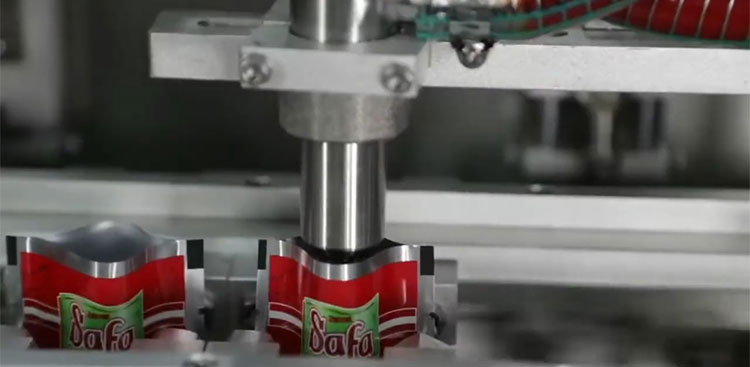

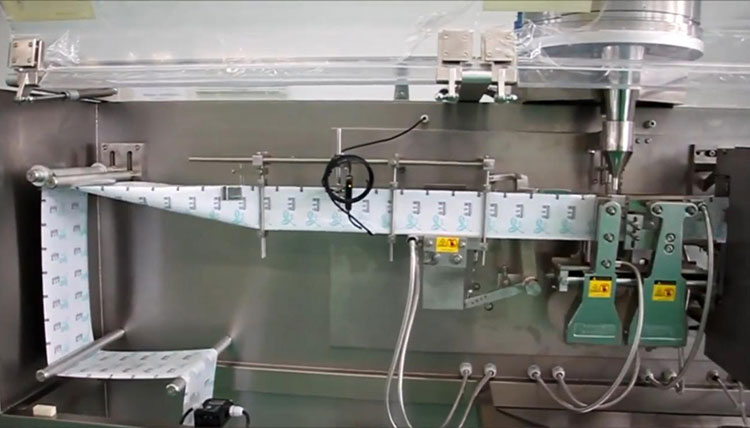

Filling

In this step, a significantly metered amount of the material gets filled into each sachet via filling nozzles.

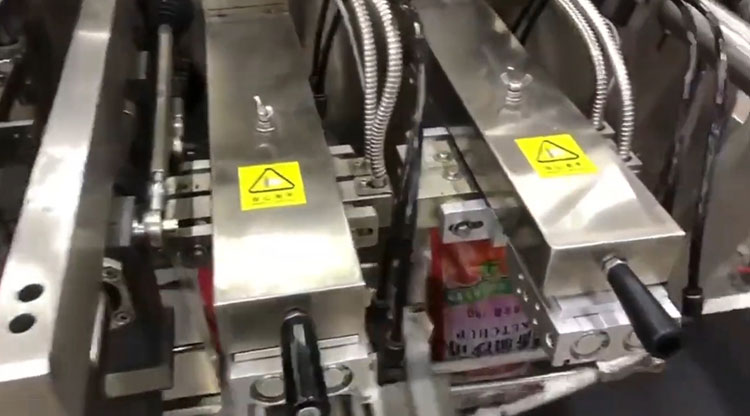

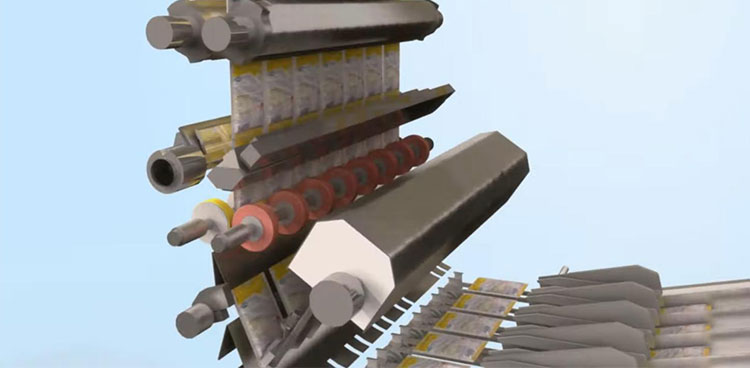

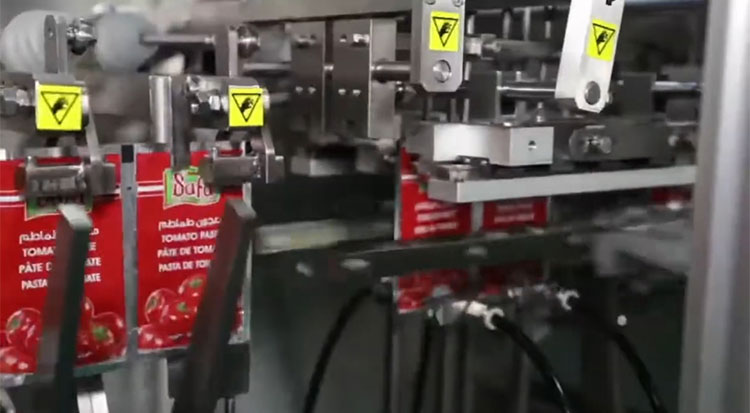

Sealing and Cutting

The filled sachets are ultimately top-sealed to secure the material followed by the cutting of the sachets from the continuous film.

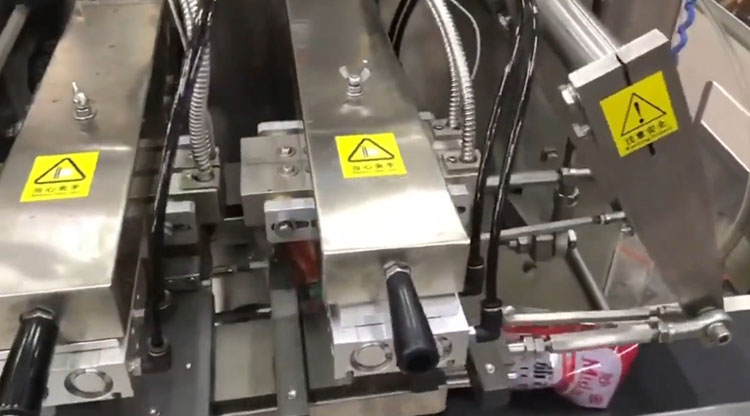

Discharge of Final Product

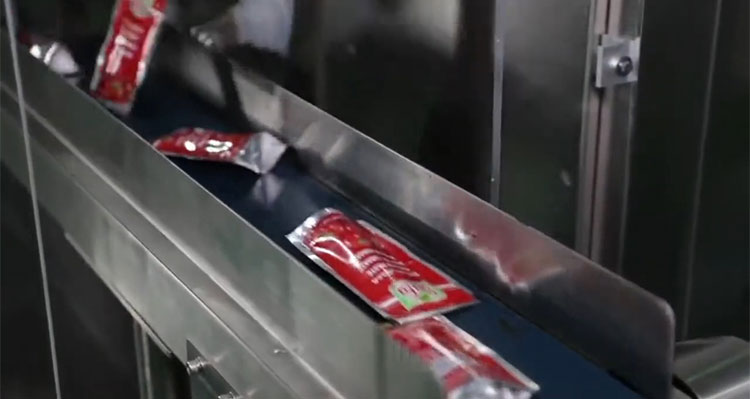

The finished sachets get expelled from the device via an outfeed conveyor.

6.How do you classify a pesticide 4 side sealing packing machine?

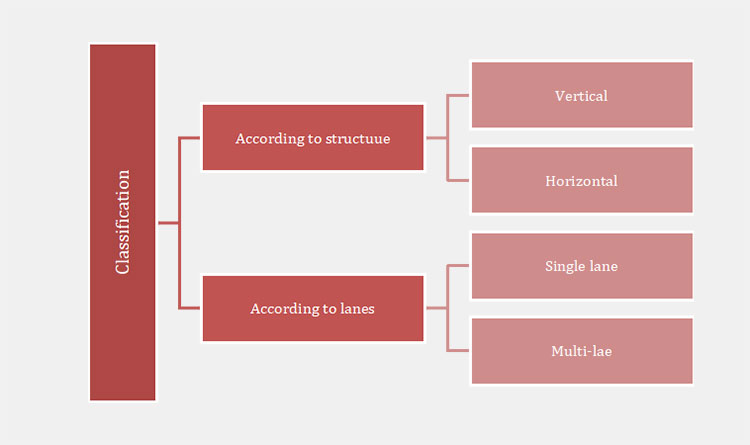

The pesticide 4 side sealing packing machine has evolved over the years, including various architectures and functionalities to meet the specific requirements of its customers. The market offers a variety of models.

These models are categorized based on configuration, automation level, filling mechanism, and number of lanes. Here is a detailed overview of these categories:

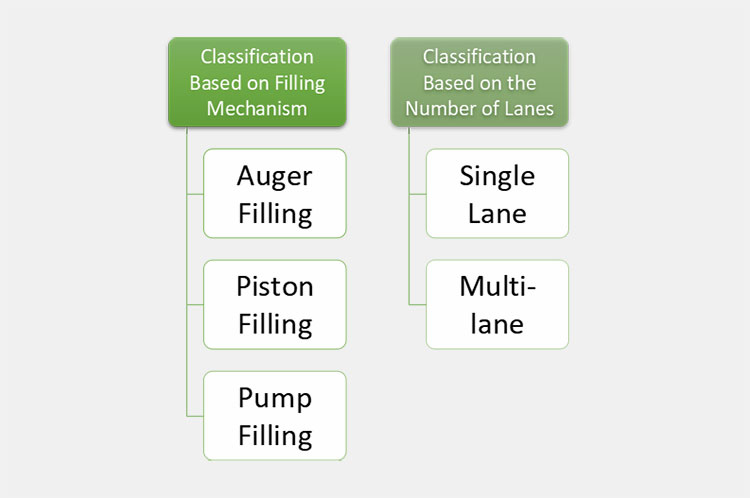

Classification of the Pesticide 4 Side Sealing Packing Machine

Classification Based on Configuration

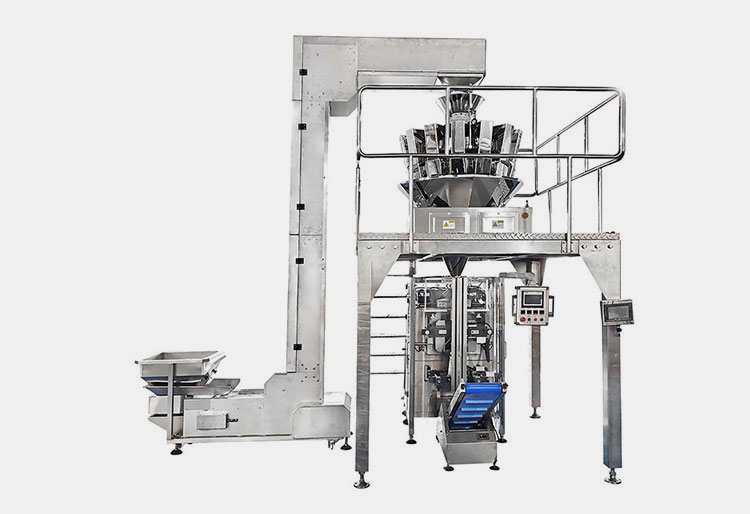

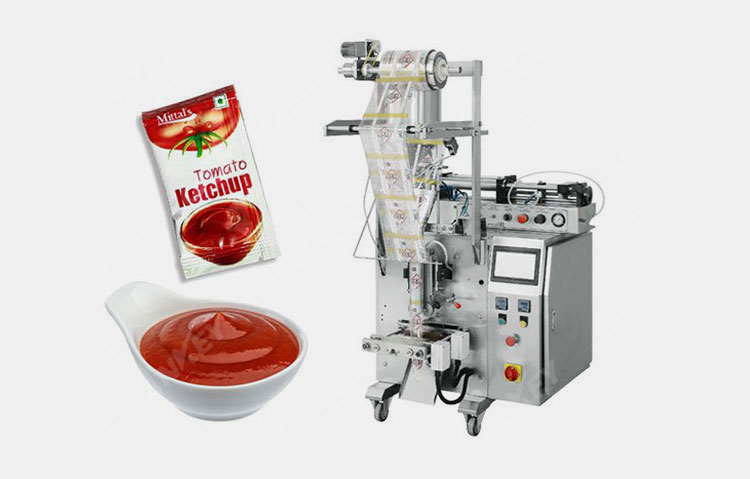

Vertical Form Fill Seal (VFFS) Pesticide 4 Side Sealing Packing Machine

Vertical Form Fill Seal (VFFS) Pesticide 4 Side Sealing Packing Machine

The pesticide 4 side sealing packing machine with vertical form, fill, and seal technology is a productive and rapid manufacturing equipment. It is the perfect piece of machinery for handling products that flow freely. The appliance is well-known for its quick operation.

With the help of sealing clamps and a shaping tube, packing films are formed into the wrapping bags. After that, the materials are added to the sachets and top-sealed using horizontal sealers.

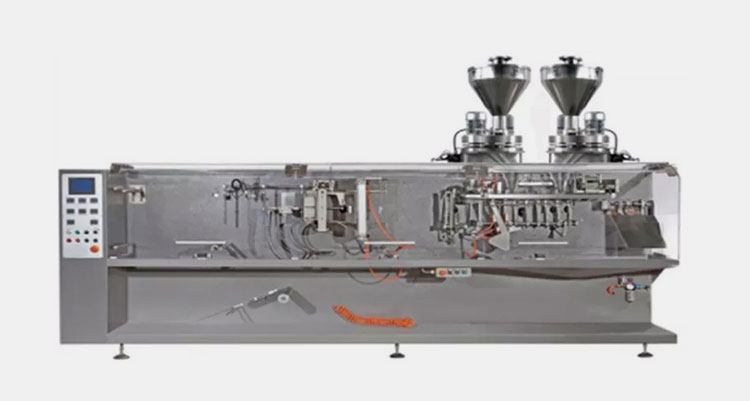

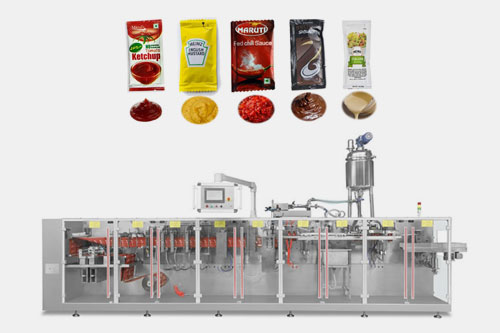

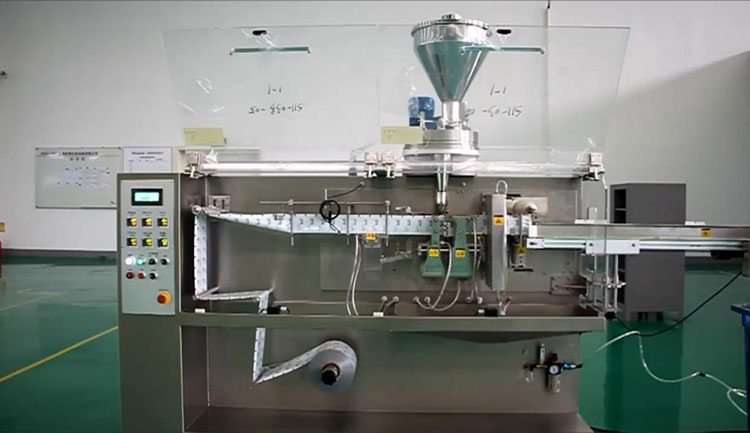

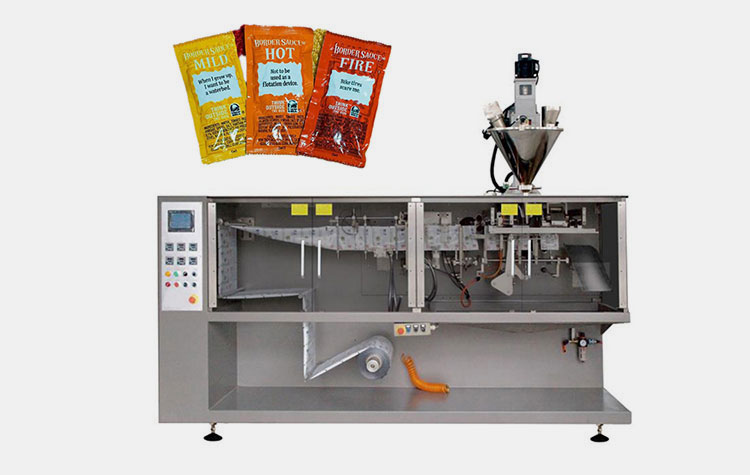

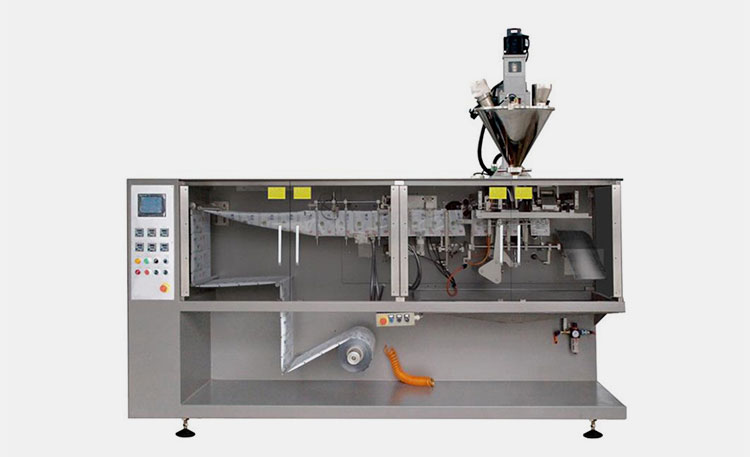

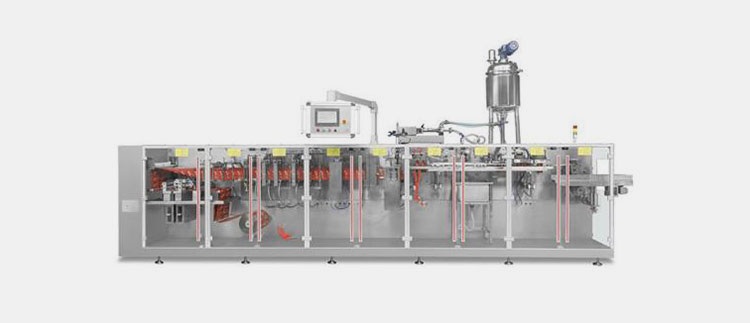

Horizontal Form Fill Seal (HFFS) Pesticide 4 Side Sealing Packing Machine

Horizontal Form Fill Seal (HFFS) Pesticide 4 Side Sealing Packing Machine

The HFFS machine variant has several horizontally structured sections for making sachets, product filling, and sealing the sachets. It is a well-functioning automated instrument.
The film reels are unwound and guided towards the bag-producing region where the desired form of sachets is produced. The filled station receives the formed sachets after which the package is securely shut with sealing clamps.

Classification Based on Automation

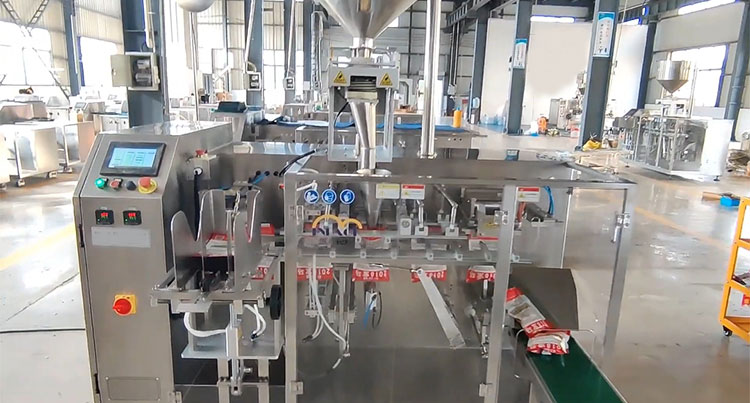

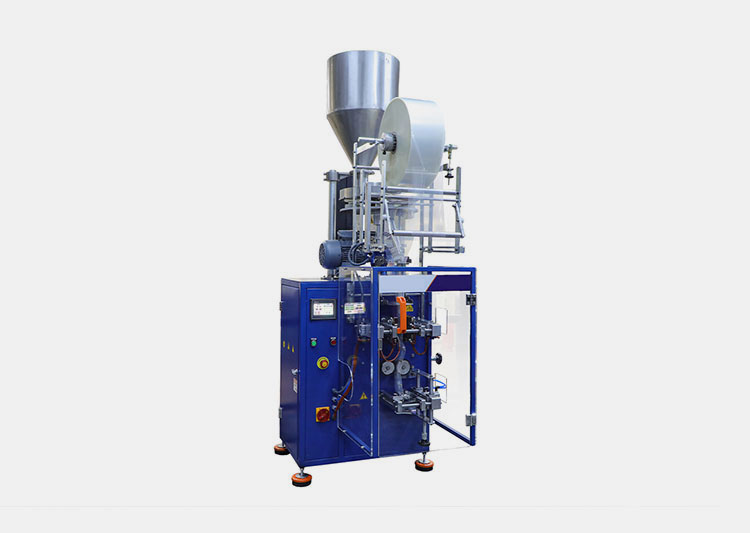

Semi-Automatic Pesticide 4 Side Sealing Packing Machine

Semi-Automatic Pesticide 4 Side Sealing Packing Machine – Picture Courtesy: Fodapack

As the name indicates, the semi-automatic pesticide 4 side sealing packing machine has partial automation with human involvement for certain processing steps, including material input and removing filled sachets. However, the rest of the activity is completed by the machine automatically.

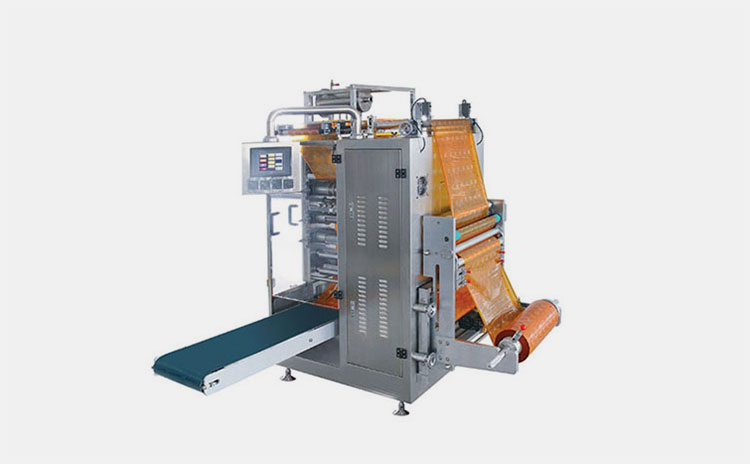

Automatic Pesticide 4 Side Sealing Packing Machine

Automatic Pesticide 4 Side Sealing Packing Machine

Full automation eliminates the need for constant human intervention in the packing process. All that is required of the worker is to set the working parameters; the gadget takes care of the rest.

These gadgets are made up of sensors that help to coordinate different parts of the process. For example, a filling sensor determines the estimated amount of product and signals the device to stop filling. The sensors guarantee functional precision and help to minimize human mistakes.

Classification Based on Filling Mechanism

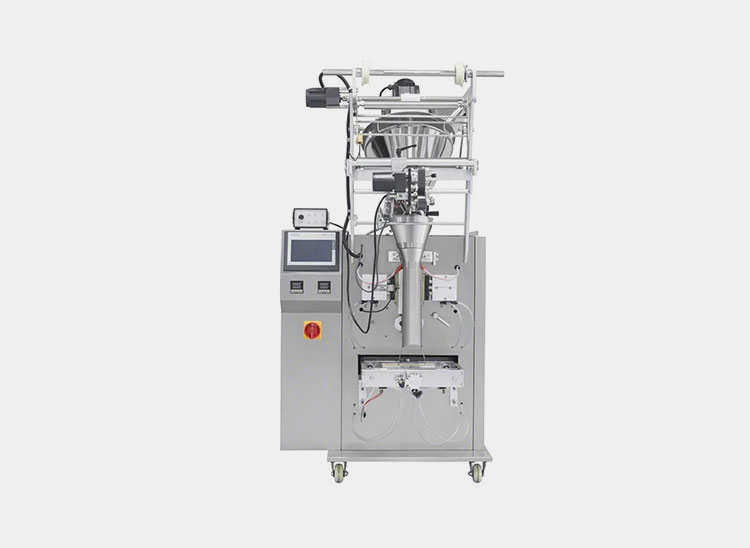

Auger Filler Pesticide 4 Side Sealing Packing Machine

Auger Filler Pesticide 4 Side Sealing Packing Machine – Picture Courtesy: iPharmachine

Precise and consistent amounts of dry granules, powdered pesticides, or other materials are filled into sachets using this kind of pesticide 4 side sealing packing machine. The powder is driven to the auger plate using a rotating auger screw in this apparatus.

The powder is then transferred from the plates into the sachet. The auger blades also revolve in the opposite direction to avoid air entrapment.

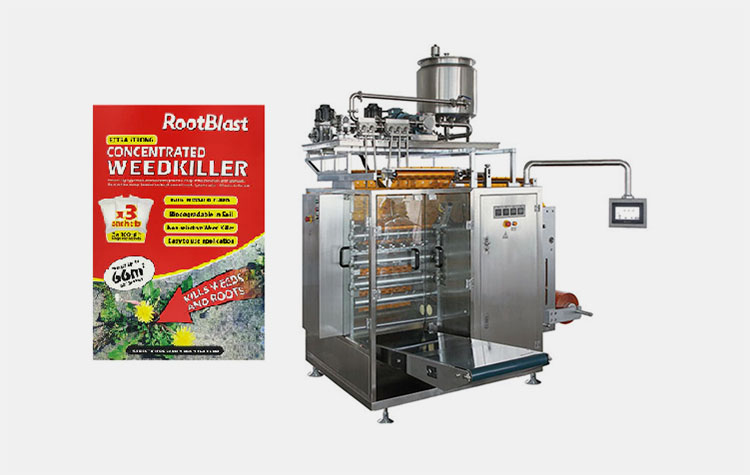

Piston Filler Pesticide 4 Side Sealing Packing Machine

Piston Filler Pesticide 4 Side Sealing Packing Machine

The piston filler pesticide 4 side sealing machine packages the liquid pesticides and other liquid goods into the sachets. The device guarantees precise filling using a piston. The liquid product is drawn into the sachets from the hopper using a smoothly operating piston.

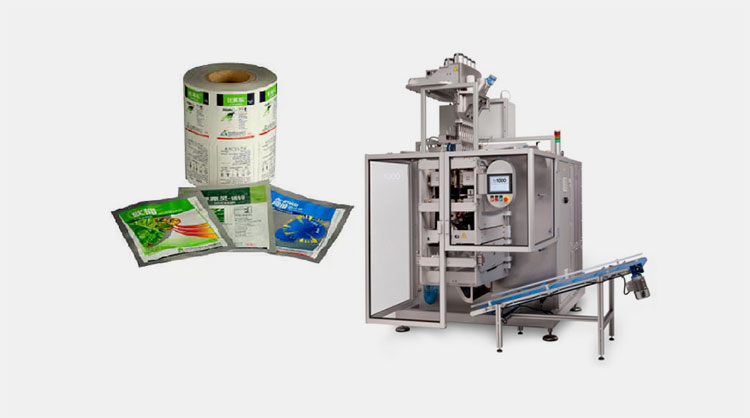

Pump Filler Pesticide 4 Side Sealing Packing Machine

Pump Filler Pesticide 4 Side Sealing Packing Machine

This equipment is used to precisely and reliably fill sachets with liquid products. It is the ideal device for the pharmaceutical sector. The liquid is directed from the hopper to the nozzle using revolving pumps. It is a flexible tool that works with both viscous and non-viscous liquid substances.

Classification Based on the Number of Lanes

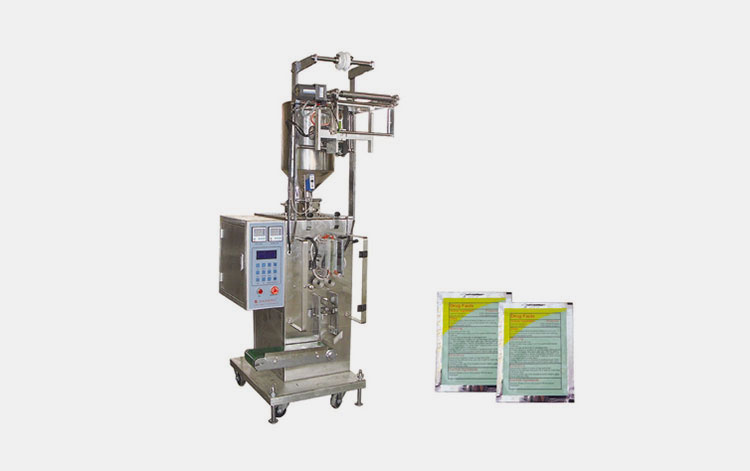

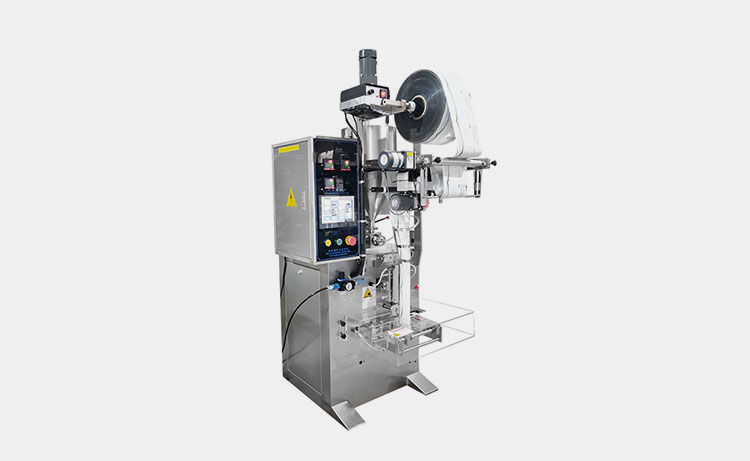

Single Lane Pesticide 4 Side Sealing Packing Machine

Single Lane Pesticide 4 Side Sealing Packing Machine

This kind of equipment has a single lane for processing the material. Small businesses might benefit from it because of its affordable price and efficient performance.

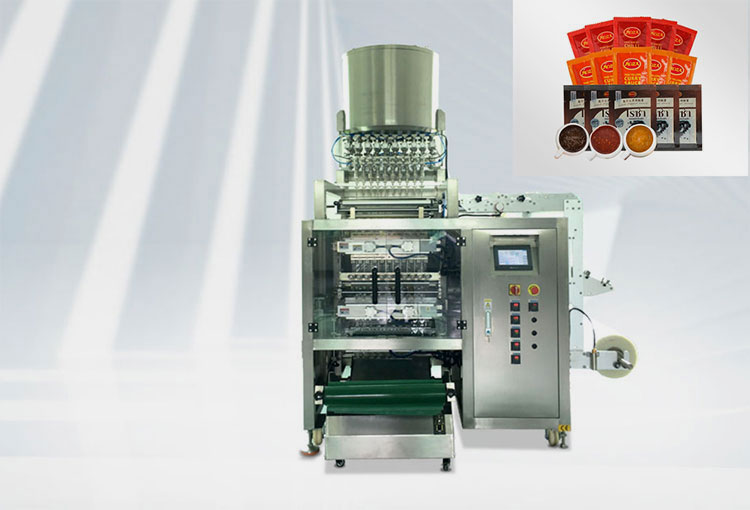

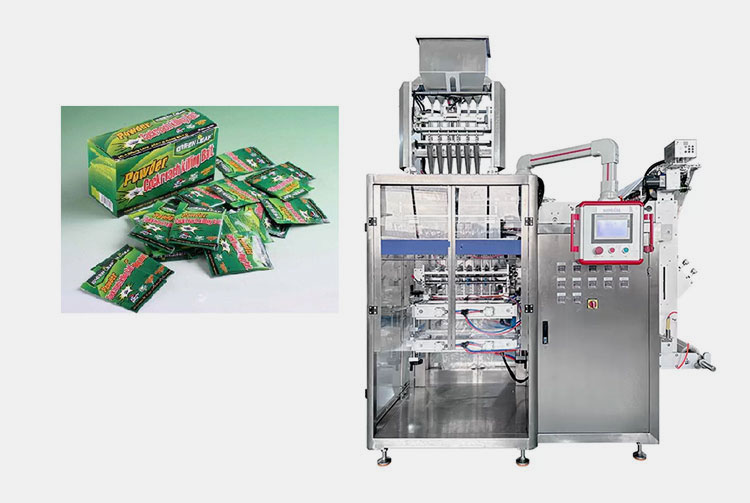

Multi-lane Pesticide 4 Side Sealing Packing Machine

Multi-lane Pesticide 4 Side Sealing Packing Machine

This device is an upgraded version with numerous lanes that operate concurrently to create multiple sachets at once. Its purpose is to increase the rate of production. It is mostly embraced by large manufacturing sectors. Its intricate design and effective operation make it a costly gadget.

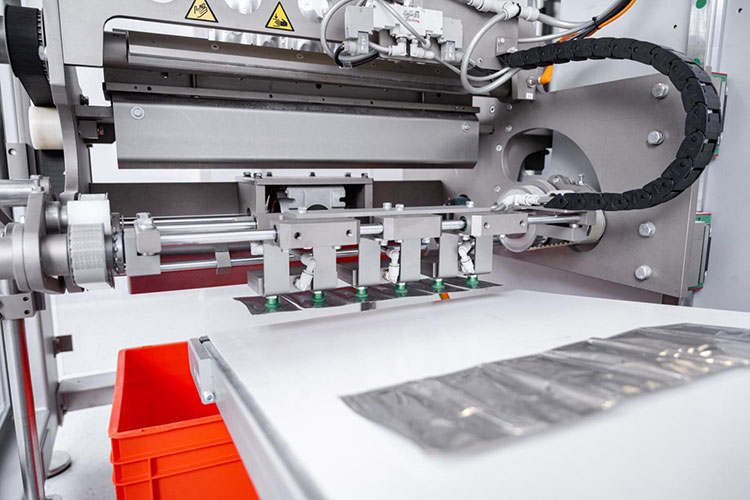

7.What is the typical production speed of a pesticide 4 side sealing packing machine?

Picture Courtesy: pharmaalliance

Different pesticide 4 side sealing packing machine models have different production speeds. The number of sachets that each model can produce in a minute determines its rating. An automated pesticide 4 side sealing packing machine can usually form, fill, and seal 200–300 sachets in a minute.

However, the real pace of production depends on several variables, including the nature of the product, the size of the bags or sachets, the type of equipment, and the operator's abilities.
By running a test trial, one may estimate the machine's speed.

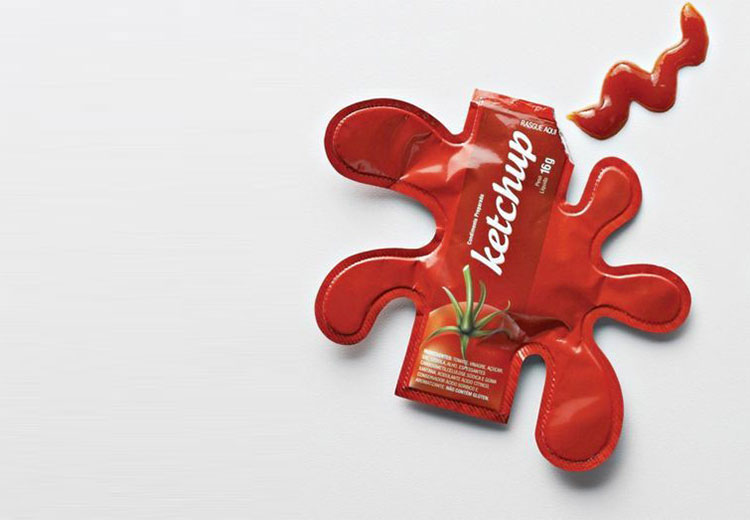

8.Can the pesticide 4 side sealing packing machine be customized for different packaging sizes and shapes?

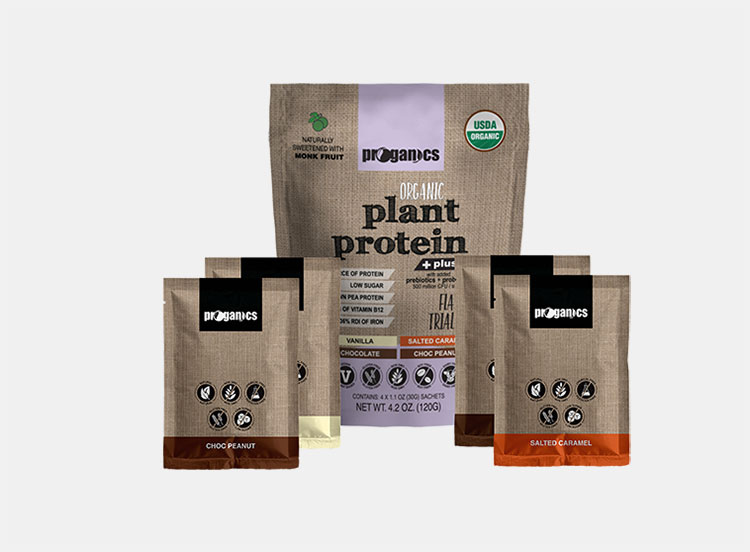

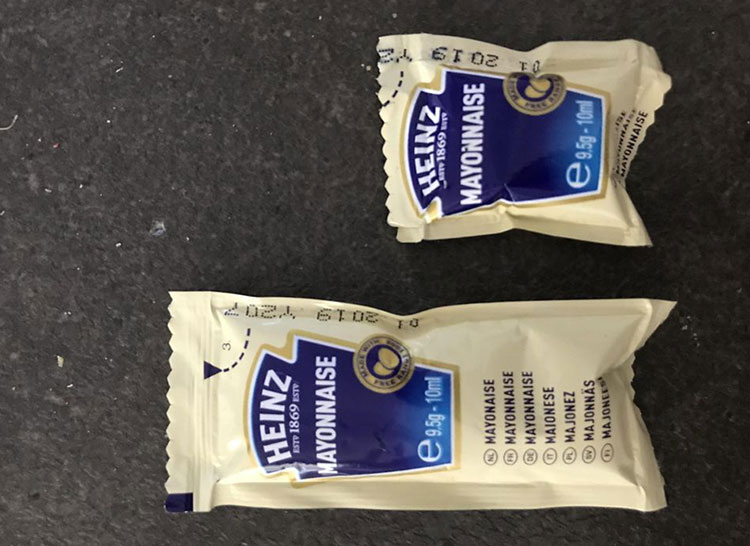

Multiple Sized Sachets

"Yes, in most cases," is the brief answer. Changeover, the process of altering the equipment to accommodate different types of bags or sachets, may require minutes or hours, dependent upon several variables.

Not every time is a universal machine the ideal option. If your needs are more varied it is recommended to invest in a variety of technologies or to automate certain particular process stages.
The pesticide 4 side sealing packing machine is made to work best under certain conditions, which justifies this. Modifying the machine's settings to accommodate varying needs might be challenging, costly, and ineffective.

Sometimes it's better to have a device that excels at one job rather than one that accomplishes several tasks "just all right."

9.What types of pesticides can be packaged using a pesticide 4 side sealing packing machine?

A pesticide 4 side sealing packing machine is highly adaptable and can handle several pesticide types. The varieties of pesticides that may be packed using this equipment are discussed in depth below:

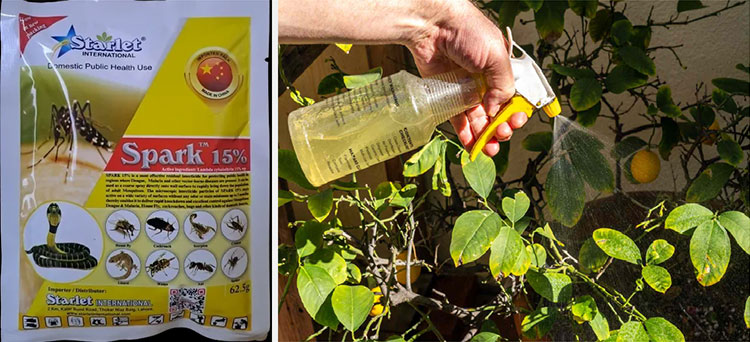

Liquid Pesticides

Liquid Pesticides

These are the widely used pesticides and can be packaged using piston and pump type pesticide 4 side sealing packing machine. These pesticides can be applied via aerosol sprays and fogging. Examples of these pesticides include;

Insecticides:They are used to control or kill insects.
Herbicides:These are used to control unwanted vegetation and weeds.
Fungicides: They are formulated to eradicate or prevent plant fungal infections.
Rodenticides:They are used to control rodent populations.
Nematicides:They control and target nematodes affecting plant roots.

Powdered Pesticides

Powdered Pesticides

These are solid forms of pesticides. They are used for long-term pest control. Such pesticides can be packaged using the auger filling pesticide 4 side sealing packing machine. Examples of powdered pesticides are:

Dusts:These are finely crushed powders that can be directly applied to the surfaces of plants.

Wettable Powders:Powders that are reconstituted with water and applied as a spray.

Granules:They are coarser than dusts and are applied for soil treatment and long-lasting control.

10.What are the maintenance requirements for a pesticide 4 side sealing packing machine?

For optimal functioning and long life of the pesticide 4 side sealing packing machine, managers should pay special attention to the device’s regular cleaning and maintenance. Here are some protocols you can follow for the device’s maintenance.

Device Cleaning and Lubrication

Cleaning & Lubrication – Picture Courtesy: CBS News

Wipe the device exterior with a gentle cloth, water, or a suitable cleansing agent. Additionally, clean the device components such as the hopper, feeder, and filling nozzle to reduce the possibility of cross-contamination.

Do a thorough cleaning of the machine once a week. Take out every component and thoroughly wash it with a gentle cleaner that works well to eliminate the product residue. Use proper sanitizers for device sterilization.

Periodically lubricate all the dynamic parts of the machine to prevent friction and ensure smooth working.

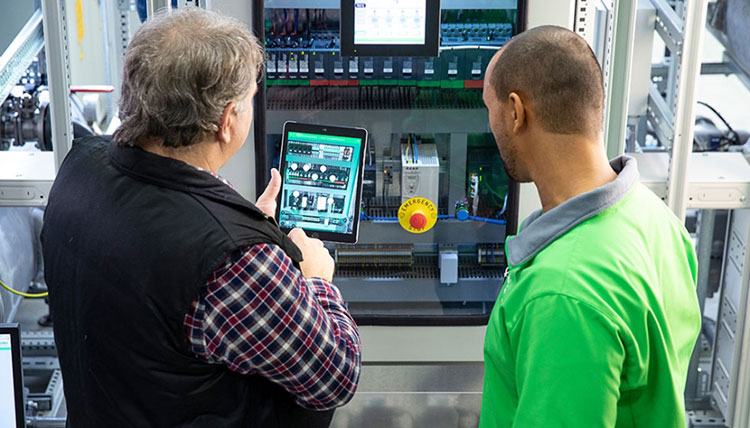

Maintenance and Changeovers

Maintenance & Changeovers – Picture Courtesy: Parsable

Inspect all the components for any damage, leaks, or tears. Repair or replace the damaged components or indicate any sign of damage, immediately. Calibrate the filling and shaping systems after replacement and maintenance. Regularly update the device software.

11.What are the common challenges faced during the operation of a pesticide 4 side sealing packing machine, and how can they be overcome?

Some common problems may arise when running the pesticide 4 side sealing packing machine that could cause production delays and downtime. Nonetheless, if you know these unforeseen faults and their fixes in advance, troubleshooting them will be simple.

For your convenience, we will outline a few typical issues, their root causes, and solutions.

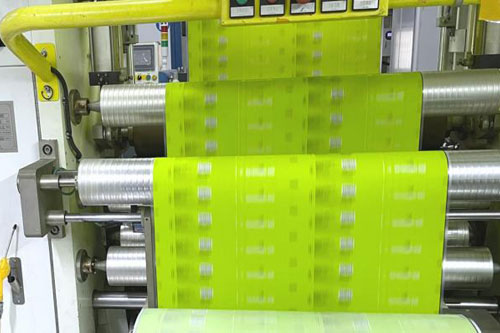

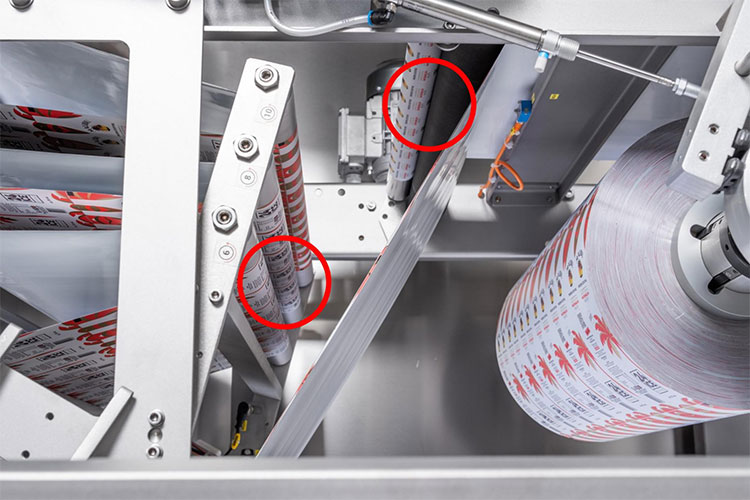

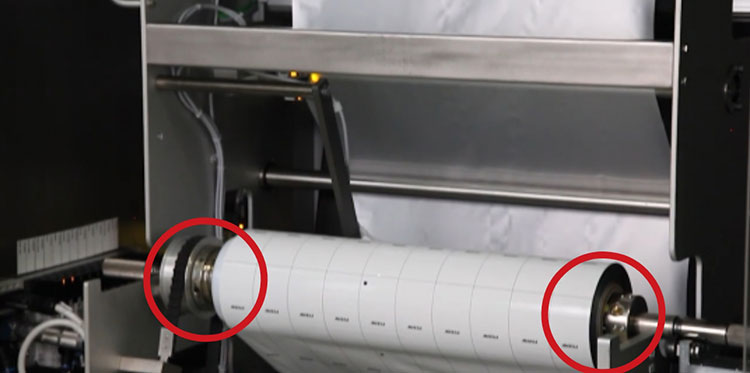

Furrowing of the Packaging Film
Causes	Solution	Image
Obstructed path of the packaging film. Insufficient film tension. The film was not positioned correctly on the holder/film frame. The dancing rollers are defective or loose.	Clear the obstruction in the path of the film. Check and validate the film tension to be maintained. Place the film roll appropriately in the center of the holder to ensure smooth function. Tighten the dancing rollers or replace the defective ones.	Picture Courtesy: BowePack

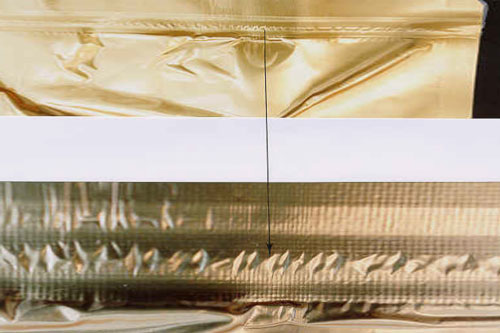

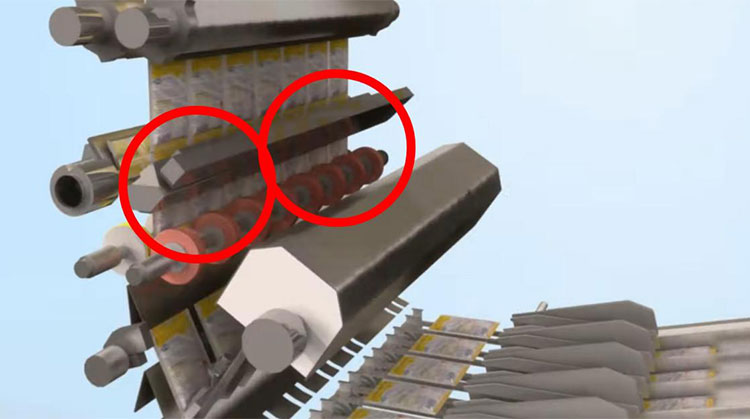

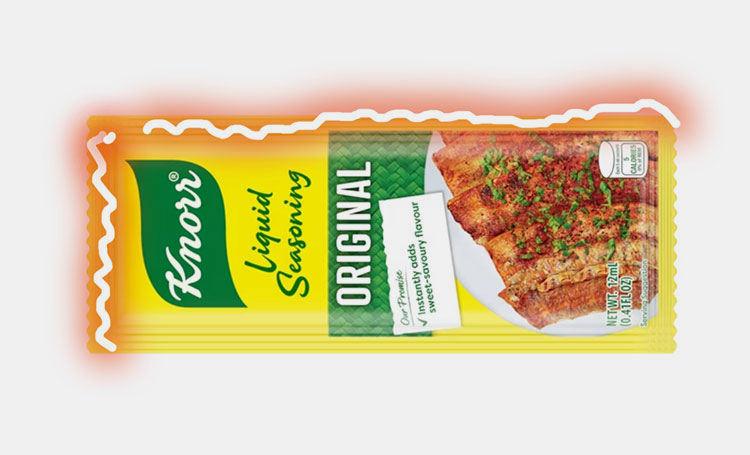

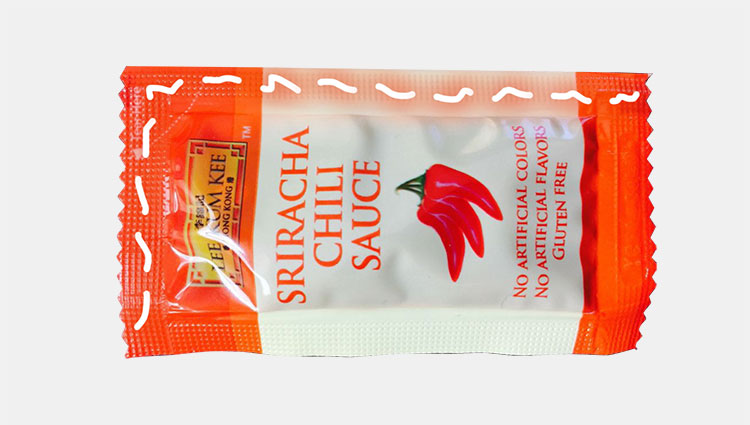

Broken Seals
Causes	Solution	Image
Impaired sealing jaws. The parameters such as sealing temperature, pressure, and time are not adjusted properly. The sealing section is dirty.	Repair or replace the sealing clamps. Monitor the process parameters (sealing pressure, temperature, time) and regulate them accordingly. Regularly clean the sealing station.
Variable Sachet Sizes
Causes	Solution	Image
Incorrect adjustment of the dimensions. The software may be outdated or have an error. The film feed is not smooth. The cutting blades are dull or damaged.	Properly adjust the desired dimensions and validate them. Update the device software regularly. Ensure the smooth film feed. Inspect the cutting blades and replace them (if necessary).

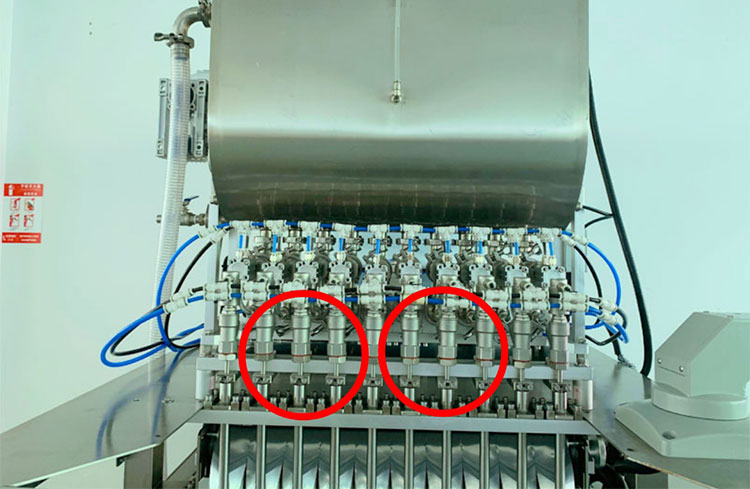

Inconsistent Filling
Causes	Solution	Image
Improper settings of the fill parameters. The product supply is not uniform. The filling nozzles are damaged or blocked. The filling components are not calibrated.	Set the filling parameters and cross-check them. Ensure the product feed is smooth and uniform. Clean the nozzles or replace them (if damaged). Calibrate the components regularly, particularly after changeovers.

12.What should businesses consider when selecting a pesticide 4 side sealing packing machine?

A pesticide 4 side sealing packing machine requires a substantial financial outlay, therefore making the right decision is crucial to your business's long-term success.

When looking for a pesticide 4 side sealing packing machine, some crucial things to take into account are;

Budget Estimation

Budget Estimation – Picture Courtesy: The News International

Determine whether the purchase prices of several machine variants are within your budget by estimating and comparing them. When making a purchase, take into account the machine's utility consumption as well as the expenses of upkeep and repairs.

Product Type and Characteristics

Product Type & Characteristics

Different items have distinct features and characteristics. A device variant may handle one item efficiently and may not be able to process other types of items effectively. The items you handle and wish to package should be familiar to you. Think about the machine type that can handle your items with the best results.

Production Capacity and Needs

Production Capacity & Needs Evaluation

Evaluate your production demands and the capacity of the machine. If you own a large-scale industry with high-volume production needs, you must opt for the advanced and automatic form of the device to satisfy your needs. Small businesses should go for semi-automatic variants or variants with limited production capacity as they are economical and could meet their requirements.

Device Flexibility

Device Flexibility of Handling Several Products

It is crucial to choose a pesticide 4 side sealing packing machine that can handle a range of goods effectively and is adaptable. The best gadget to choose is one that can handle several items with easy changeovers and adjustments.

Regulatory Compliance

Regulatory Compliance – Picture Courtesy: Sensidyne

Any company's top focus should be the wellness of its customers. To guarantee the product’s security and effectiveness, a machine variant that complies with regulatory requirements should be chosen. Public trust in the business will also increase with sanitary goods and packaging.

Conclusion

The pesticide 4 side sealing packing machine is an essential tool that each manufacturer should own to increase the packed goods' effectiveness, dependability, and caliber. Knowing the essential features of a pesticide 4 side sealing packing machine will make it easier to choose one that will be ideal for your needs. Select the device that best suits your production needs. If you are seeking to get this amazing equipment or need any further guidance, contact Allpack, you will be guided in a better way. Please get in touch with us if you need the ideal packing solution!

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Pesticide 4 Side Sealing Packing Machine from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

Pesticide 4 Side Sealing Packing Machine: The Complete Buying Guide in 2024 Read More »

Stick Packaging Machine VS Sachet Machine

Sachet Machine, Stick Packaing Machine

Stick Packaging Machine VS Sachet Machine

All kinds of products require packaging, and now there are various types of packaging available. Diversified packaging can beautify products and attract customer interest in purchasing. Are you often attracted by the diversified packaging? Among them, stick packaging and sachet are widely used, and we often see them in various occasions.

Both stick packaging machines and sachet machines are common packaging machines, but what is the difference between them? Do you want to know more information about stick packaging machines and sachet machines? So, let’s start to explore these two kinds of machine!

Add a header to begin generating the table of contents

1.What Is Stick Packaging Machine VS Sachet Machine?

To begin with, in order to learn the basic knowledge about stick packaging machine and sachet machine, let’s discuss the definition of them.

Stick Packaging Machine

Allpack Stick Packaging Machine

A stick packaging machine is a kind of device with multiple functions, which can achieve automatic small-doze automatic flexible packaging.

This kind of machine is commonly applied in a lot of industries. They usually use PLC program control and touch human-machine interface, combined with servo system drive, to ensure the accuracy and stability of the packaging process.

Sachet machine

Allpack Sachet Machine

The sachet machine is an automated equipment, which is mainly used for accurately measuring and packaging materials such as liquids, powders and particles into small bags. This type of machine is widely used in industries such as food, medicine, and chemical engineering, which can improve production efficiency and ensure packaging quality.

2.What Are the Applied Industries of Stick Packaging Machine VS Sachet Machine?

Have you often seen stick packaging and sachets in supermarkets? For example, you must have seen instant coffee with stick packaging before. To be honest, the stick packaging machine and sachet machine are applied in various industries. Then, let’s explore them one by one!

Chemical Industry

Desiccants - Sourced: widgetco

As is known to all, chemical products need to be packaged and sealed in a sterile environment. The stick packaging machine and sachet machine can flexibly develop packaging plans to meet the packaging requirements of chemical products, ensuring product hygiene and safety.

The stick packaging machine and sachet machine can package desiccants, pesticides, and other products.

Food Industry

Dove Chocolate - Sourced: facts.net

The stick packaging machine and sachet machine have the capability to efficiently package a wide array of food products, ranging from chocolate and coffee to biscuits and more. These foods usually need to be easy to carry and store, and small bag packaging can well meet this demand.

Pharmaceutical industry

Pharmaceutical Sachet - Sourced: formika

The stick packaging machine and sachet machine can adjust packaging parameters according to the properties and needs of different drugs, such as packaging materials, sealing temperature, packaging speed, etc. These machines are suitable for packaging various forms of drugs such as powder and tablets.

The stick packaging machine and sachet machine ensure accurate drug dosage and reduce errors through precise measurement and packaging techniques.

Cosmetic industry

Cosmetics Sachet - Sourced: freepik

The stick packaging machine and sachet machine have extensive applications in the cosmetics industry, offering significant advantages that bring numerous conveniences and benefits to the sector.

The packaging form is convenient to carry, easy to store, and can enhance the overall aesthetics of the product. In terms of cosmetics, an aesthetically pleasing packaging design can effectively capture the attention of potential consumers.

In a word, after continuous optimization and adjustment, the stick packaging machine and sachet machine are now suitable for various materials and widely used in various industries, improving the safety and aesthetics of products.

3.What Is the Difference Between Stick Packaging Machine and Sachet Machine?

The distinction between stick packaging machines and sachet packaging machines is often blurred due to their numerous similarities, causing confusion for many. Next, I will introduce the differences between them.

Appearance

Stick Packaging Machine VS Sachet Machine

As you can see, the stick packaging machine and the sachet machine have many similarities in appearance. They all have hopper, control panel, filling device, etc.

Nonetheless, the stick packaging machine incorporates a sleek and compact design that caters specifically to the requirements of lengthy stick packaging. The design of sachet machines may be more diverse to accommodate sachet of different sizes and shapes.

Packaging format

Packaging Format - Sourced: musgravemarketplace.ie

The packaging formats produced by these two packaging machines are different. The product packaging produced by the stick packaging machine is slender and long, generally with back sealing.

However, the packaging produced by sachet machines is wider than that of stick packaging, usually with 4 side or 3 side sealing.

4.What Material Do the Stick Packaging Machine VS Sachet Machine Adopt?

You have eaten ketchup, and drink milk powder with stick package or sachet. Whether it is stick packaging machine or sachet machine, they use a wide range of materials.

Powder

Milk Powder - Sourced: bcdairy.ca

The stick packaging machine and sachet machine are particularly suitable for powdered materials such as coffee powder, milk powder, seasoning powder, pharmaceutical powder, sugar, desiccants, etc. They are often disposable products, which is convenient to carry.

Granule

Chewing Gum - Sourced: candywarehouse

Having you eaten chewing gums? Some are packaged with sachet or stick packaging. Moreover, both stick packaging machines and sachet machines can package granular items like candies, grains, and nuts.

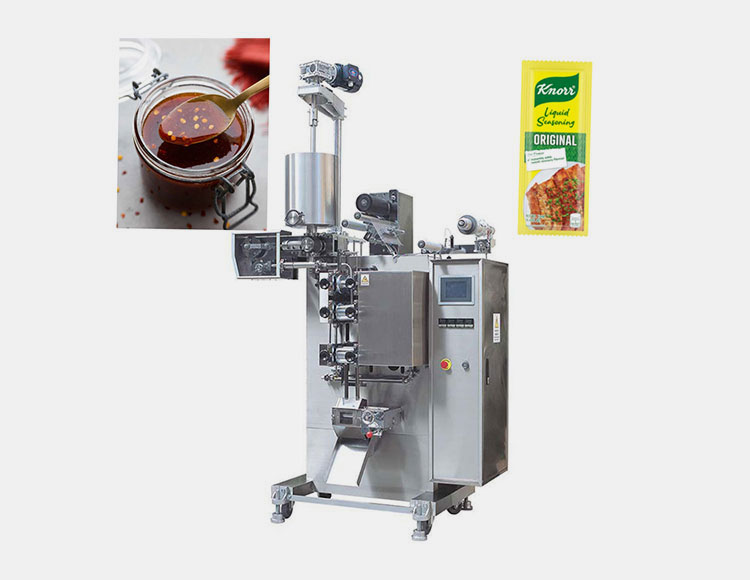

Liquid

Ketchup - Sourced: foodandwine

Have you ever eaten fried chips or fried chicken with ketchup? Do you pay attention to the packaging of ketchup? To be honest, in addition to ketchup, the stick packaging machines and sachet machines are also suitable for packaging many liquid materials, such as soy sauce, vinegar, milk, soy milk, beverages, etc.

5.What Are Advantages of Stick Packaging Machine VS Sachet Machine?

Do you know the advantages of stick packaging machine and sachet machine? Their advantages are reflected in the following aspects:

Diverse bag types

Diverse Bag Types - Sourced: xmlinkcn

Stick packaging machines and sachet machines can adapt to products of different shapes and sizes, with a variety of packaging sealing types including back sealing, straight cutting, 3 side sealing, and 4 side sealing.

High degree of automation

In today’s world, fully automatic stick packaging machines and sachet machines are usually equipped with automated control systems, which can automatically complete a series of packaging processes such as measuring, filling, and sealing.

Accurate measurement

Accurate Measurement - Sourced: javatpoint

Utilizing advanced measurement technology, stick packaging and sachet machines guarantee precise and uniform weight or quantity for every packaged product. This accuracy not only minimizes material waste but also enhances material utilization efficiency.

High production efficiency

The two kinds of machines adopt automated operations and reduce manual intervention, improve production efficiency, and lower production costs.

Cost saving

Cost Saving - Sourced: digitaldealer

The use of stick packaging machines and sachet machines can significantly reduce labor costs and save expenses for companies. This device can achieve continuous operation, reduce production interruptions and waiting time, and further reduce costs.

6.What Are the Main Parts of the Stick Packaging Machine VS Sachet Machine?

Do you know the main parts of the stick packaging machine and sachet machine? Let’s move on to this section.

Stick Packaging Machine

The Main Parts of Stick Packaging Machine

Filling device	It is used for temporary storage of materials to be filled, ensuring the continuity of the filling process.
Pouch forming	It is mainly responsible for shaping packaging materials (such as film, paper, etc.) into packaging containers or bags that meet product requirements through certain processes and mechanisms.
PLC	As the core device of the control system, PLC is mainly responsible for controlling the logical operations of the entire packaging process. Through pre-set programs, PLC can accurately control the various execution mechanisms of the packaging machine.
Seal (vertical seal and horizontal seal)	During the packaging process, vertical and horizontal sealing (horizontal edge sealing) are combined to jointly complete the sealing work of the packaging bag. The sealing quality directly affects the sealing, aesthetics, and service life of packaging bags.
Multi lane filling	Filling is a core process in packaging machinery, mainly responsible for filling liquid, granular or powdered materials into packaging containers in predetermined quantities.

Sachet

The Main Parts of Sachet Machine

Roll film	Roll film is one of the indispensable parts in the automated packaging process. According to the different materials, there are various types of film rolls, such as PVC shrink film rolls, PE rolls, PET protective films, etc.
Hopper	A hopper is a device used for storing and conveying materials, ensuring that the materials can be continuously and stably supplied to the packaging machine.
Filling volume adjustment	Filling volume adjustment is to ensure the accuracy and efficiency of product filling. During the adjustment process, attention should be paid to the interaction and coordination of various components to ensure the stability of the entire system.
Bag former	The bag former uses high temperature, high pressure and other processes for sealing, printing and other subsequent processing to meet the packaging needs of different industries.
Packaging control panel	The main functions of the control panel include setting packaging parameters (such as bag size, inflation rate, etc.), monitoring equipment status (such as running speed, fault information, etc.), and performing necessary operational controls (such as starting, stopping, pausing, etc.).
Upper heat sealing	By heating, the contact surface of the packaging material reaches a molten state, and then it is bonded together under pressure to achieve sealing. This process requires control of heating temperature, pressure, and time to ensure the quality of sealing.

7.What Technology Do Stick Packaging Machine VS Sachet Machine Adopt?

The importance of technology is self-evident, as it plays a crucial role in the entire packaging machine. Let’s explore the packaging technology used by the stick packaging machine and sachet machine.

Technology - Sourced: standards.org.au

The stick packaging machine and the sachet machine adopt two kind of technology: Vertical Form Fill Seal (VFFS) and Horizontal Form Fill Seal (HFFS).

Vertical Form Fill Seal

VFFS usually refers to a packaging technology that package materials (such as plastic film or paper) in a vertical direction. This technology is commonly used to manufacture various vertical packaging bags, and is particularly suitable for dry products such as sugar, grains, etc.

Horizontal Form Fill Seal

HFFS is another packaging technology in which the packaging material is formed horizontally, filled with items, and sealed.

8.The Market of Stick Packaging Machine VS Sachet Machine

You must be curious about the market situation of these stick packaging machine and sachet machine, as detailed in the following analysis.

Market Drivers

Consumer Demand for Stick Packaging and Sachet - Sourced: slimstock

With the increase in consumer demand, industries such as food, medicine, and daily chemicals has provided a broad market space for the packaging machinery industry. The increasing demand for packaging machinery in these industries has driven the growth of the stick packaging and sachet machine market.

Owing to the convenience and distinctive features of stick packaging and sachets, the demand for machines that produce these formats is steadily rising among consumers.

Market Restraint

Stick packaging and sachet may be affected by moisture, which can shorten the shelf life of the product. In addition, some drugs also require sterile packaging, which poses a great challenge to ordinary packaging. Therefore, companies need to ensure product quality based on product requirements.

Market Opportunity

Market Opportunity - Sourced: okcredit.in

At present, the stick packaging machine and sachet machine have undergone significant advancements in incorporating sensors, controllers, and human-machine interfaces. These sophisticated integration enable precision monitoring and seamless automatic adjustments throughout the packaging process, thereby enhancing the overall stability and quality of the packaging operation.

For example, intelligent control systems can automatically adjust equipment parameters to meet different packaging requirements, while achieving fault self diagnosis and early warning, reducing downtime.

Market of Stick Packaging and Sachet - Sourced: straitsresearch

Based on the figure above, the market share of stick packaging and sachet is similar. In 2023, the market size for stick packaging and sachet machines globally exceeds USD 500 million. It can be seen that the market environment for these two machines is relatively good.

9.Which One is Better? Stick Packaging Machine VS Sachet Machine?

Which packaging machine do you want to choose? There is no good or bad distinction between these two types of machines. Your choice depends on your needs. When you selecting a suitable packaging machine, you requires considering many factors.

Product features

Different Packaging Forms - Sourced: visionhunters

As the picture showed above, there are many packaging forms. So, you should consider the packaging forms of the product, such as stick packaging, sachet, etc., to ensure that the selected packaging machine supports these packaging forms.

You should determine the size range of the product, such as length, width, height, etc., in order to select the appropriate packaging machinery.

Besides, you should pay attention to the weight range of the product and ensure that the packaging machine can handle the required weight of the product.

Price

Price - Sourced: price2spy

Before selecting a packaging machine, the first step is to determine your budget range. This will help you quickly screen out devices that meet budget requirements and avoid unnecessary waste.

You should keep in mind that don’t just pursue low prices, but consider the cost-effectiveness of the equipment. Equipment with high cost-effectiveness usually performs well in terms of performance, quality, and after-sales service.

Visit the manufacturer and machine

Visit the Manufacturer and Machine - Sourced: auroratextile

If possible, you can try to conduct on-site inspections at the equipment manufacturer to understand the production environment, manufacturing process, and quality control of the equipment.

You can try to bring samples for machine testing as much as possible to ensure that the equipment can meet its actual production needs.

In addition, you can pay attention to observing and evaluating the performance and stability of the equipment during actual operation.

Conclusion

After reading this article, do you have a general understanding of stick packaging machines and sachet machine? If you want to know more information about how to choose a packaging machine, you can contact Allpack and we will provide you best service.

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Stick Packaging Machine Or Sachet Machine from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

Stick Packaging Machine VS Sachet Machine Read More »

What is the Difference between a Stick Pack and a Sachet?

sachet, Sachet Machine, Stick Packaing Machine

What is the Difference between a Stick Pack and a Sachet?

In modern society, product packaging is not only to protect products, but also the key to conveying brand image and attracting consumers. More and more customers are choosing to purchase single use products with stick packs or sachets. Both are widely used in various industries, such as food, agriculture, and pharmaceuticals.

The two packaging forms occupy a place in the market due to its portability and diversity. Because of their similarities, many customers often confuse them.

What is the difference between a stick pack and a sachet? I think you must have thought about such a question. Today, let’s explore their differences.

Add a header to begin generating the table of contents

1.What Is a Stick Pack and a Sachet?

As we all know, the stick pack and sachet have many common points. You must have many questions about them. Let me first introduce to you the definition of two kinds of packaging.

Stick Pack

Stick Pack - Sourced: blackcoffeeroastingco

Stick packs, also known as stick packaging, are a kind of long and narrow packaging. This kind of packaging is mainly used for single servings of liquids, powders, and granules.

Sachet

Sachet

Sachet - Sourced: fifoplus

A sachet refers to a tiny container within little material. The sachet is usually wider than a stick pack. A variety of products are applied as single doses using these compact, light-weight packaging.

2.What Are the Applied Industries of Stick Packsand Sachets?

Believe it or not, you must have seen many stick packs and sachets in your daily life. These two kind of packaging are widely used in a lot of industries, such as food, pharmaceutical, cosmetic, agriculture, and chemistry.

Food industry

Coffee Stick Pack & Sachet - Sourced: nicejugsmk & pandemanila

In the food industry, whether it is brewed coffee, fruit juice, or health products, stick packs and sachets can provide precise weight control while ensuring the sealing and clean of food.

Pharmaceutical industry

Pharmaceutical Sachet - Sourced: webpackaging.

Having you seen the pills with stick packs and sachets? These two kinds of packages are widely used in the pharmaceutical industry, especially suitable for tablets, capsules, suppositories, pills, cold granules, etc.

This packaging form has such advantages as light weight, and easy portability. It has good protection for the packaging material and meets the special packaging requirements of drugs and health products.

Cosmetic industry

Cosmetics Sachet - Sourced: linkedin

The stick pack and sachet design of cosmetics usually reflect the high-end and luxurious feeling of the product, attracting the attention of consumers. At the same time, the two kinds of packaging also facilitate consumers to control usage, and keep the product fresh.

This type of packaging not only meets consumer demands for simplicity of use but also improves the product’s sales attractiveness. It is also comfortable to carry.

Agricultural industry

Vegetable Seeds - Sourced: lowes

Stick pack and sachet are widely used in the agricultural field, and with their unique characteristics and advantages, they provide great convenience for agricultural production, storage, transportation, and sales. Small bag packaging is widely used in the packaging of agricultural products, such as vegetable seeds and grains.

Chemical industry

Desiccant - Sourced: edcosupply

Stick pack and sachet are widely used in the chemical industry, and its unique design and functionality make it an ideal choice for packaging many chemical products.

Due to their good sealing characteristics, stick pack and sachet are particularly suitable for packaging such chemicals as chemical reagents, catalysts, and desiccants, making it convenient for users to use and manage.

3.What Is the Difference between a Stick Pack and a Sachet?

After knowing the basic information of a stick pack and a sachet, you will find that they have many things in common. However, it is precisely because of their similarities that many people are easily confused. Do you know their difference? Let’s move to study their differences.

Form

The Form of A Stick Pack and A Sachet - Sourced: yellowimages

The stick pack have a long and narrow design. And it has many bag styles, such as straight cutting, round, serrated, and diamond.

However, the sachet is wider than the stick pack, usually with 3 or 4 side sealing.

Capacity

The capacity which can be packaged in the stick pack and sachet are different. In terms of powder, the stick pack can accommodate several grams of powder. In terms of liquid, the stick pack can accommodate 1 to 60 milliliters.

In terms of powder, the sachets can package several grams of powder. In terms of liquid, the stick pack can package 1 to 10 milliliters of liquid, far less than stick pack. This capacity is very suitable for single servings of lotion or shampoo.

Cost

Cost - Sourced: mckenzielake

To be honest, stick packs are often more expensive than sachets, because of their distinct shape, such as diverse cutting types what we have discussed in the above. Stick packs, on the other hand, provide a few benefits over sachets.

4.What Materials Can Be Packaged in a Stick Pack and a Sachet?

Stick pack and sachet are a kind of flexible and practical packaging form that is suitable for various types of materials. The following describes in detail the materials that can be packaged in stick pack, especially liquid, granule, and powder:

Liquid

Tomato Sauce - Sourced: mcdonalds

Stick pack and sachet are particularly suitable for liquid materials, such as beverages, condiments, sauces, milk, etc.

This packaging form can effectively prevent liquid leakage and is convenient for consumers to carry and use. Through appropriate material selection and structural design, stick pack and sachet can ensure the stability and safety of liquid materials during storage and transportation.

Granule

Coffee Granule - Sourced: mashed

Products such as coffee granules, candy granules, and grain granules are also suitable for using stick pack and sachet.

Stick pack and sachet can neatly package granular materials in bags to prevent material form being scattered or moisturized. Meanwhile, by controlling the size and shape of the packaging bag, it can be ensured that the amount of granules taken each time is accurate and convenient.

Powder

Seasoning Powder - Sourced: lowcarb-nocarb

Milk powder, coffee powder, seasoning powder are also common materials in stick pack and sachet. Stick pack and sachet can keep the powder dry and hygienic, and prevent moisture or contamination.

By precise packaging control, it is possible to ensure the accurate amount of powder in each bag, making it convenient for consumers to use according to their personal needs.

5.What Is the Advantages of a Stick Pack and a Sachet?

Advantages - Sourced: opening

When you go out, would you try to bring stick pack or sachet of products? The portability of two kinds of packaging forms will reduce the burden of travel. To be honest, the advantages of a stick pack and a sachet are more than this.

Convenience and portability

The stick pack and sachet are compact and are easy to carry, and especially suitable for business trips or travel.

For some special drugs, such as children’s drugs, they can be designed in unique shapes to increase children’s willingness to take drugs.

Good sealing

Good Sealing - Sourced: newfoodmagazine

Stick packs and sachets have good sealing properties, which can completely prevent moisture and oxygen from entering, and ensure the effectiveness and safety of drugs or other products.

High precision

Stick packs and sachets can be filled quantitatively with high precision, with a minimum capacity of 0.3g, suitable for products with strict dosage requirements.

Good protection

PET - Sourced: pakpackages

PET and other materials are used in stick pack and sachet. PET material has the characteristics of being lightweight and sturdy, making it easy to carry and use, while also having good impact resistance.

In addition, PET material is easy to process into various shapes and sizes of products, suitable for large-scale production. It also has a good barrier effect on gases and water, which can effectively prevent the oxidation and deterioration of food, beverages, and other items.

6.What Are the Machines for Producing Stick Packs and Sachets?

Do you know the machines for producing stick packs and sachets? Let’s take a look at these two kinds of packaging machines.

Stick pack machine

A stick pack machine is a machine, which was used for packaging of powder, liquid and granular materials. The stick pack machine has the characteristics of fast speed, high accuracy, and wide applicability. Next, I will introduce two types: multi-lane stick pack machine and single lane stick pack machine.

Multi-lane stick pack machine

Allpack Multi-lane Stick Pack Machine

The multi-lane stick pack machine can pack 2, 4, or 8 lanes of materials simultaneously. It fills materials into multiple independent packaging bags through feeding devices and forming molds, and then undergoes sealing, cutting and other processes to form multiple parallel rows of stick packaging products.

Single lane stick pack machine

Allpack Single Lane Stick Pack Machine

A single lane stick machine is a mechanical device, which can only package one lane of material at a time. It usually only has one feeding device and one molding mold, which fills the material into a single packaging bag, and after sealing, cutting and other processes, forms a single row of stick packaging products.

Sachet pack machine

A sachet pack machine is a equipment specifically designed for packaging items into small bags and sealing them. The small bag packaging machine can package various items (such as food, medicine, cosmetics, etc.) into independent small bags and ensure the sealing of the items inside the bags.

Horizontal sachet pack machine

Allpack Horizontal Sachet Pack Machine

The horizontal sachet pack machine is a composite film automatic packaging machine independently developed for the diversity of packaging materials and the adaptability of packaging bag types. It adopts a horizontal fully automatic bag making, filling, and sealing form.

Vertical sachet pack machine

Vertical Sachet Pack Machine - Sourced: samfull.net

The vertical sachet pack machine is an automated packaging equipment, the body is vertical to the ground and the top is facing upwards. It is mainly used for various operations, such as filling, sealing, and labeling packaging bags, and it can automatically detect, count, and weigh during the packaging process.

In a word, both kinds of pack machines have many advantages. If you use a stick pack machine or sachet machine, it will bring you many benefits. The specific details are as follows:

High precision quantitative filling

The sick pack machine and sachet pack machine adopts fully automatic packaging, which can achieve high-precision quantitative filling of materials such as drugs and food.

High efficiency

High Efficiency - Sourced: solitaireconsulting

The sick pack machine and sachet pack machine typically have fast packaging speeds and can quickly complete the packaging of large quantities of materials, greatly improving production efficiency. This high efficiency meets the requirements of modern industry for production speed.

Cost savings

Cost Savings - Sourced: cashflowinventory

The packaging form used by sick pack machine and sachet pack machine is more economical, which can save manufacturers and sellers 35% of costs.

Conclusion

What is the difference between a stick pack and a sachet? You must have your own answer. The decision between stick packs and sachets will ultimately come down to your own requirements. If you want to know more information about a stick pack and a sachet, you can contact to Allpack at any time.

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Stick Pack Machine or Sachet Pack Machine from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

What is the Difference between a Stick Pack and a Sachet? Read More »

Liquid Sauce Sachet Packing Machine: The Complete Buying Guide In 2024

Sachet Machine

Liquid Sauce Sachet Packing Machine: The Complete Buying Guide In 2024

Sauces are used in our daily life food taking from a cup of noodles to burger, pizza, and more. So, why not go for producing more tantalizing sauces and discovering ways for their preservation? Of course! If so, what will be the best option? Well, liquid sauces are all time preferable over other forms of sauces due to their instant use. As far as the packaging of these liquid sauces is concerned, so, single serving flexible packaging is what both the consumer and producers are looking for.

That's why, we have come up with a detailed buying guide about a new machine which is Liquid Sauce Sachet Packing Machine. This machine is a display of advanced technology and high automation where you will not be bothered to intervene manually in packaging but will get precisely finished liquid sauce sachets. Not only that, but its handling is extremely easy with precise structure and efficient performance. So, let's embark on the journey to know more about a Liquid Sauce Sachet Packing Machine!

Add a header to begin generating the table of contents

1.What Is A Liquid Sauce Sachet Packing Machine?

Allpack APK-110 liquid sauce sachet machine

Liquid sauce is a free-flowing or viscous mixture added into food for enhancing their visual appeal, aroma and taste. That's why, most of the food industries are now delivering liquid sauces in handy packages and due to home delivery services for products like pizza, burger, and fries, single serving sachets are used for this purpose.

Similarly, a specific machine is manufactured to deal with the packaging of liquid sauces including ketchup, mayonnaise, soy sauce, and chilli sauce in small sachets. This machine is termed as liquid sauce packing machine. It is highly intelligent and effective in its performance of creating sachets and filling them with liquid sauces astonishingly. So, whatever the type of liquid sauces and seasoning you process, this machine is perfectly suitable.

2.Write Down The Eclectic Advantages Of A Liquid Sauce Sachet Packing Machine?

A liquid sauce sachet packing machine is an outstanding equipment designed with multiple features each having several advantages for your business. So, let's enumerate few of them for your information!

Ensure Protection

Stringently packed sachet

As a liquid sauce sachet packing machine comes up with compact and hygienic stainless steel body, it is fully safe to process your vary sauces and liquids. It thus ensures that the contact parts of filling material and packaging material are food grade to avoid any sort of contamination caused during operation.

Customizable

Customized mayonnaise sachets

In today's era, where customers are not only looking for relevant material but also attracted by beautiful and unique design packages, a liquid sauce sachet packing machine is very instrumental as it is highly resilient to support multiple packaging formats. For instance, you can employ it to create 4 side, 3 side, twin sachets, shaped sachets with vibrant sealing and cutting.

Fast Performance

Fast performance of liquid sauce sachet packing machine- Picture Courtesy: universalpack.it

Speed is what matters the most especially when it comes to packaging machinery. It is because machine replace human labor which not only reduce material waste but also enhance the packaging efficiency.

High Precision & Accuracy

Precisely packed tomato ketchup sachet

A liquid sauce sachet packing machine is fully automatic in technology, therefore, it realizes all the functions of sachet forming, filling, sealing, and cutting automatically. In this way, the electric sensors and other controlling components make sure that machine produce packages of similar size, shape, and material with consistent volume.

Cost-effective

Cost-effective icon

This machine is extremely reliable in terms of price and overall expenses of liquid sauce sachet packing. The reason behind is its user-friendly interface which support easy interaction of operator. Moreover, it does not require multiple labours for operation and offers cost-effective way for packing your liquid sauces in flexible sachets.

3.Enumerate The Popular Liquid Sauces Processed By A Liquid Sauce Sachet Packing Machine?

Well, a liquid sauce sachet packing machine is flexible enough to process all kinds of flat to granulated liquid sauces. However, here we well discuss some of the notable ones to shed light on its usefulness. These include:

Tomato Ketchup Sauce

Tomato ketchup- Picture Courtesy: nutritionrefined.com

Who will not be familiar with the most popular dipping sauce around the world? Of course no one! Tomato ketchup sauce is all time favorite liquid sauce taken with fast foods and food like chicken nuggets and others. It is made from fine tomatoes in combination with sugar, water, and some artificial food additives. As the use of ketchup is compulsory, its packing in sachets is inevitable.

Chilli Sauce

Chilli sauce- Picture Courtesy: kitchensantuary.com

Chilli sauce is another famous sauce we use in our daily cooking. It is in thick form as containing ketchup along with chilli and other ingredients. So, their preservation require safe and durable packaging means where freshness cannot be escaped and that is possible with a liquid sauce sachet packing machine.

Mint Sauce

Mint sauce- Picture Courtesy: carvedculture.com

Mint sauce is another common liquid sauce which we often prepare in our homes, but now it is also available in readymade form. It is a mixture of mint, water, chilli, and few other ingredients which can be used for flavor. So, to retain its freshness, sachet packing is preferred.

Soy Sauce

Soy sauce- Picture Courtesy: therecipecitric.com

The origin of this delicious soy sauce can be found in Chinese traditions where they used to blend the fermented soybeans with wheat and salt. But, now with globalization, we see how soy bean is becoming necessary for food like spaghetti, macaroni, and noodles etc., everywhere. That's why, liquid sauce sachet packing machine is crucial to enclose it for consumers.

Hot Sauce

Hot sauce- Picture Courtesy: wholefully.com

As the name illustrates, hot sauce is a thin liquid sauce used to add heat and flavor to food. It is a formulation of chilli pepper combined with vinegar and salt. Therefore, you can simply process it by a liquid sauce sachet packing machine for primary packaging.

Cranberry Sauce

Cranberry sauce- Picture Courtesy: themodernnonna.com

Cranberry sauce is a must have liquid sauce in America and United Kingdom especially during festivals like thanksgiving and Christmas. As the making of cranberry sauce is similar to that of cranberry jam, they are often termed interchangeably. Similarly, its packing can be easily carried out by a liquid sauce sachet packing machine.

4.What Packaging Formats Does A Liquid Sauce Sachet Packing Machine Support?

Liquid sauce sachet packing machine do support multiple packaging formats. These are shown below:

3 Side Seal Sachets

3 side seal sachet- Picture Courtesy: pakona.com

3 side seal sachets refer to sachets with three sides being tightly sealed and one left for providing additional space for liquid sauce. A liquid sauce sachet packing machine can beautifully create 3 side seal sachets for encasing liquid sauce.

4 Side Seal Sachets

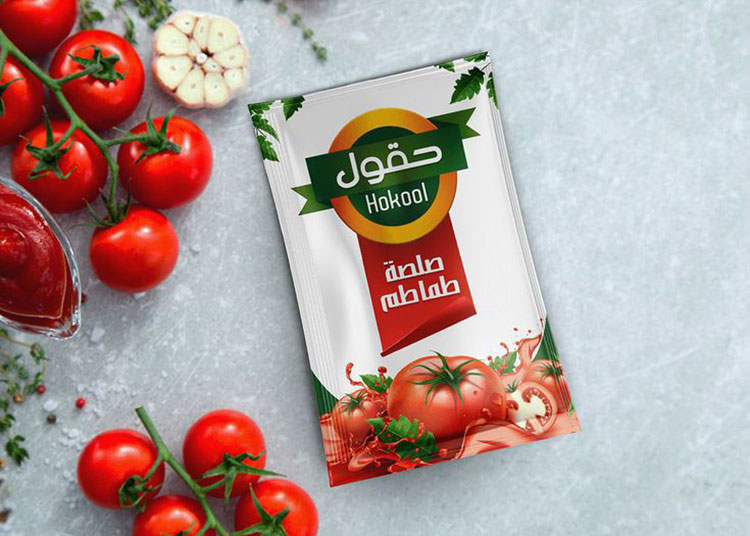

4 side seal tomato ketchup sachet- Picture Courtesy: designerpeople.com

Such type of sachets are having all the four sides; two vertical and two horizontal sealed hermetically. They provide extra strength for products, therefore, most of the liquid sauces are packed in 4 side seal sachets which are accurately made by this machine.

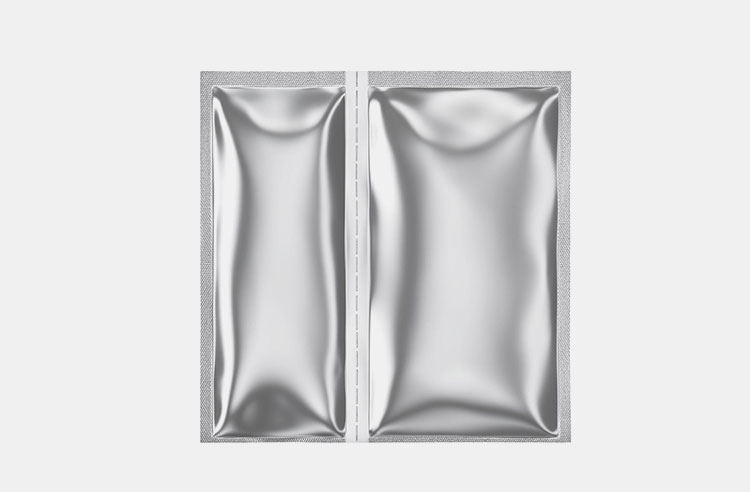

Twin Sachets

Twin sachets- Picture Courtesy: smartymockups.com

Twin sachets are sort of double sachets being interconnected to each other through one side. These sachets are also very popular for delivering two different types of liquid sauces together in individual packs. That's why, a liquid sauce sachet packing machine is tailored to meet this need.

Shaped Sachets

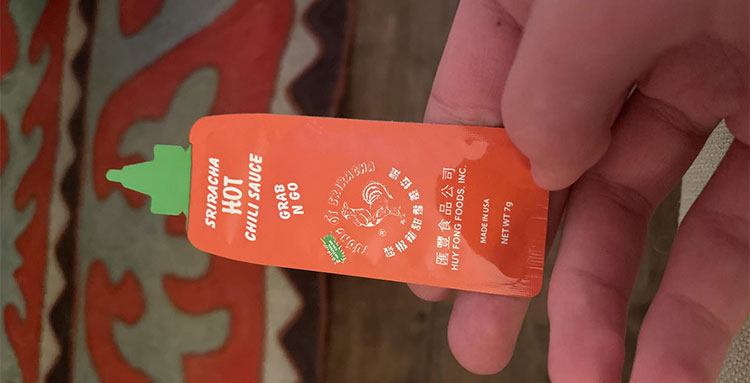

Shaped chilli sauce sachet- Picture Courtesy: reddit.com

Shaped sachets are customized sachets with irregular shapes such as tomato, chilli, and other fruits. Shaped sachets fascinate much quickly to consumers' eyes than that of regular sachets. Ergo, a liquid sauce sachet packing machine is capable of offering such format.

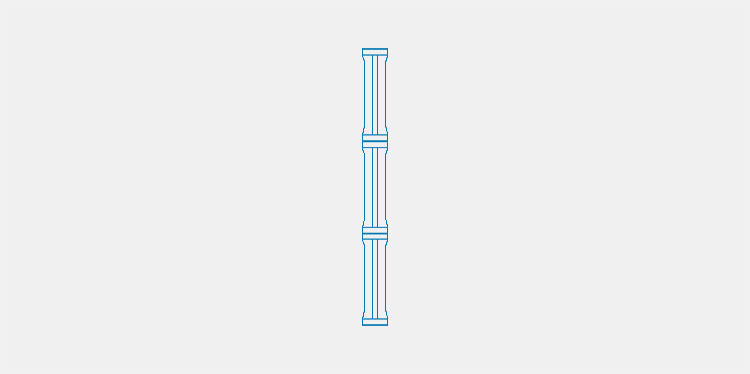

Continuous Sachets

Continuous sachets

A liquid sauce sachet packing can also form continuous sachets which are interconnected to each other without having proper cutting but having perforation for separation.

Designed Sealed Sachets

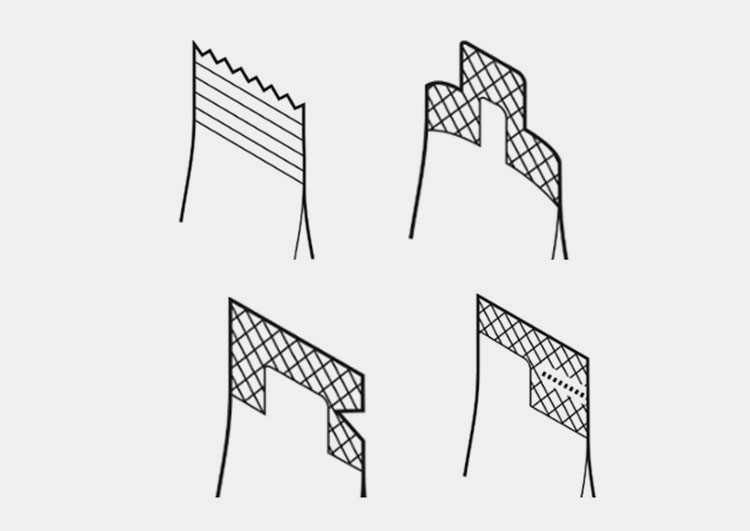

Various designs for sachet sealing

Sachets can be beautifully styled by simply incorporating unique design sealing such as diamond serrated, triangle, and square patterns into its sealing. And this machine is ideally perfect for carrying out these functions.

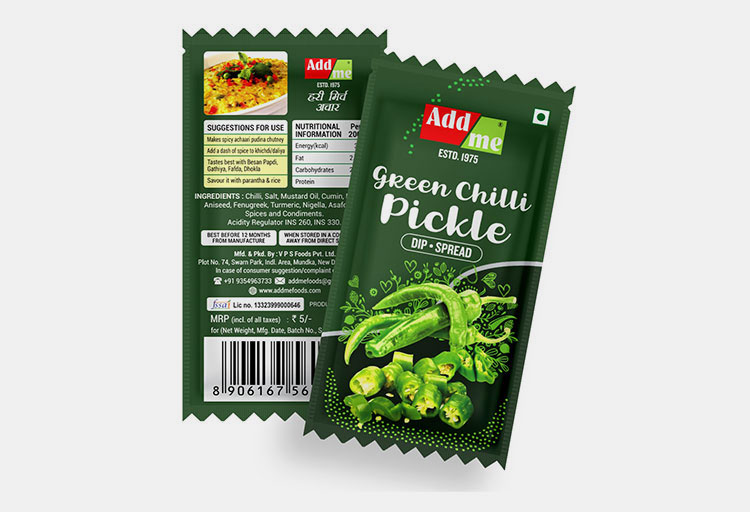

Designed Cut Sachets

Pickle sachet with zigzag cut- Picture Courtesy: Flipkart

You can also employ this machine to add vibrant design cutting into your sachets like zigzag cut, round cut, and flat cut etc.

5.How To Operate A Liquid Sauce Sachet Packing Machine?

In order to operate a liquid sauce sachet packing machine, you need to follow the machine's manual. As, the manual may appear difficult to you, we have simplified it for your assistance. Its working process can be understood by looking into the underlying steps:

Feeding

Feeding

Machine feeding

The machine needs to be loaded first for which the hopper is fed with large volume of any desired liquid sauce, while as, the roll frame is supplied with a film reel. As the feeding step is carried out, next phase is to set up the machine.

Setting

Here, operator is required to set the machine by contacting small computer device. Here, parameters such as the volume of liquid sauce to be filled in each sachet, the length and width of sachet, and temperature of heat sealing jaws are fixed into machine.

Sachet Forming

Sachet forming

Upon setting, a liquid sauce sachet packing machine is now ready to get started. As the machine is powered on, the sachet formation takes place. For this, the multiple rollers, and dancers arm begin unwinding film from roll. This film is then moved ahead and wrapped around the bag former. At the same time, longitudinal and bottom sealing of film is realized which result in the formation of sachet.

Material Weighing

In addition to sachet forming, material weighing is done simultaneously. For this, the integrated weighing system which is responsible for weighing liquid sauce, keep doing its work by taking commands from control system and accurately weighing the volume of liquid sauce.

Material Filling

Material filling

As the liquid sauce is weighed, the next step is its safe dispensing into sachet. To perform this task, measured liquid sauce is taken from weighing pump into the sachets through small filling nozzles. Depending upon the machine design, it can be done through volumetric filling, piston filling, or gravity filling system.

Sachet Sealing

Sachet sealing- Picture Courtesy: packwaymachinery.com

After filling, the most important step of sachet sealing is to be done. For this, the heated sealing jaws get closed which result in the formation of strong sealing of the top of sachet. Similarly, interconnected sachets are cut off from one another through knife.

Ejection

Sachet discharging- Picture Courtesy: packwaymachinery.com

At last, the finished liquid sauce sachets are ejected out of machine via conveyor belt either towards collection container or for further packaging in secondary packaging machine.

6.What Are The Major Components Of A Liquid Sauce Sachet Packing Machine?

A liquid sauce sachet packing machine is composed of several components. These are described below in detail:

Structure of Allpack- APK-130 Horizontal 4 side seal honey sachet machine

Intelligent Control Panel:It is a microcontroller device which controls the functioning of machine by storing the data set by operator. It has a human machine interface which allows user to interact with machine by contacting different settings which appears on the panel.

Stainless Steel Body:The body of machine is made from durable and compact stainless steel and all parts touching the filling material and packaging material are specially made from corrosion resistant and antibacterial stainless steel to avoid product contamination.

Film Guide:Film guide refers to multiple rollers located at certain intervals which help in the synchronized unfurling of film from roll.

Film Reel:Film reel is a stock of film which is in form of roll. It can be either plastic, aluminum, or laminated paper film.

Sachet Former:Sachet former is another crucial component of a liquid sauce sachet packing machine which is in form of a conical type of device. It is useful for turning the flat layer of film into sachet.

Side Sealer:Side sealer is also called vertical or longitudinal seal. Depending upon the type of sachet, either one or two side sealings are added to the sachet.

Data Coder:It is a printing tool which is integrated into the machine for imprinting necessary data like material production date, expiration date, and batch no etc., on sachets.

Cutting Knife:The machine has a fitted pair of fine cutting knife which is utilized for cutting the finished sachets by separation. The sharper the knife the precise will be cutting. Apart from this, the type and design of cutting knife vary as per the operator requirements of packaging formats like curve and flat cutting blades etc.

Stable Foot:A liquid sauce sachet packing machine has four stable feet located on its lower body which enable the machine to stand upright and work smoothly without any disbalance.

Hopper:Hopper is a large conical or pyramidal container situated on the top of machine. Here liquid sauce is poured before starting operation, so, that the machine will process it without any interruption.

Top Sealer:Top sealer refers to the horizontal seal. It consists of a pair of sealing jaws which close the opening of filled sachets.

7.Are There Any Types Of A Liquid Sauce Sachet Packing Machine?

The answer to your question is definitely yes! A liquid sauce sachet packing machine do have multiple types. These types can be better understood by looking into their structure and working procedure. So, let's know about them!

According to Structure

Vertical Liquid Sauce Sachet Packing Machine

Vertical Ketchup Sachet Packing Machine- Picture Courtesy: cankey-tech.com

As the name indicates, this type of machine display a vertical body which occupies less space but give high output ratio. In vertical liquid sauce sachet packing machine, you will be offered to choose a single lane or multi-lane machine model, keeping in view your production line.

Structure

The body of machine is vertical with major parts encompassing a stainless-steel supporting structure with contact parts being made from antibacterial material. Along with that, it houses a workplace for the entire processing of liquid sauce sachet packing.

Working Process

It works on the easy working principles where packaging film is unwinded from a roll located on the top and undergoing it through forming, filling, and sealing in a vertical way. At last finished liquid sauce sachets are ejected out of machine.

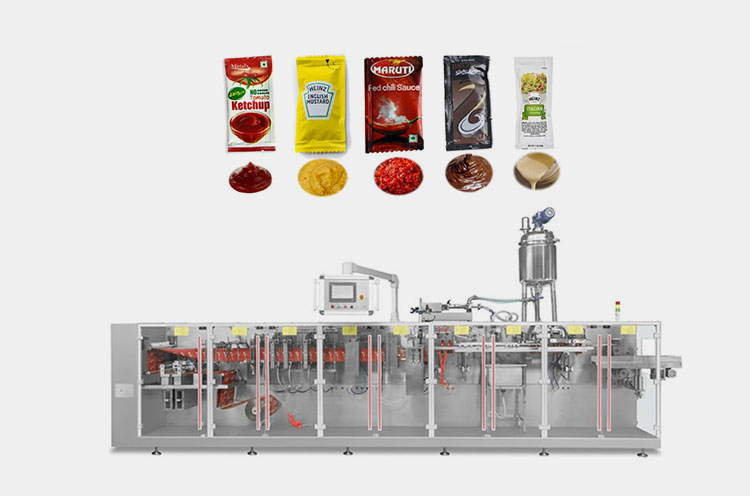

Horizontal Liquid Sauce Sachet Packing Machine

Allpack- APK-130S/240DS premade pouch filling machine

Horizontal liquid sauce sachet packing machine is fully automatic packaging machine that can perfectly pack liquid sauces into single standard sachet as well as twin sachets depending upon the machine model. It is an ideal equipment in liquid processing industry like food, medical, and cosmetic industry etc.

Structure

It has horizontal structure, therefore, require a bit larger space than that of vertical liquid sauce sachet packing machine. It is composed of a sturdy main frame, control panel, electric cabinet, hopper, film roll stock, bag former, sealer, and cutter etc.

Working Process

It works by taking the layer of film from roll and then sealing its longitudinal sides to create sachet. Then the formed sachet is loaded with premeasured liquid sauce and closed from top for final discharge.

According to lanes

Single Lane Liquid Sauce Sachet Packing Machine

Single Lane Liquid Packing Machine For Sachet & Stick Pack- Picture Courtesy: samfull.net

Single lane liquid sauce sachet packing machine is small and compact machine that comes up with a single lane for forming, filling, and sealing sachet. The machine can be customized to create 3 side, 4 side, and irregular shape sachets. Moreover, its easy handling and cost-effectiveness make it reliable for low to medium scale industries in liquid processing area.

Structure

The structure of machine is compact and precise with a single lane being used for packaging of liquid sauce. The major parts constitute a hopper, packaging film, conical bag former, filler, sealer, and control system etc.

Working Process

It needs preloading and setting before starting operation. After these steps are carried out, the film is drawn from a reel via single lane and unwinded for sachet formation. Similarly, as the sachet is formed, pre-weighed liquid sauce is infused into it and the package is sealed and ready for output.

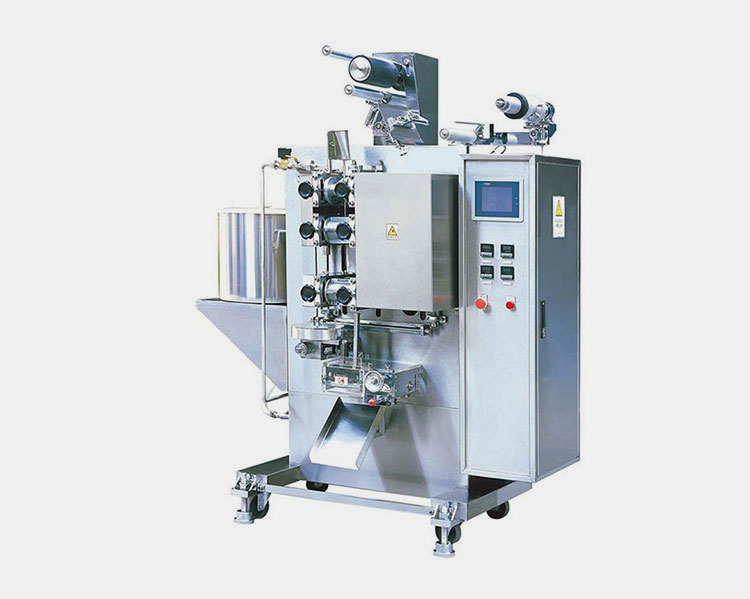

Multi Lane Liquid Sauce Sachet Packing Machine

Multi row four side sealing liquid packaging machine- Picture Courtesy: chengyipacking.com

Multi lane liquid sauce sachet packing machine features advanced technology and have an updated design to cater the modern needs of manufacturers regarding high packaging rate. Its lanes vary from 2-12, and it supports integration with secondary packaging machines such as sachet sorting machine and cartoning machine etc.

Structure

Similar to its name, the structure is also made up of multiple components which, by working together, enable the machine to carry out its function. They include multiple filling nozzles, a storage tank, weighing pump, bag unwinding, creating, and final closing system etc.

Working Process

The working process is simple with the machine unfurling film from roll and passing it through cutting step for splitting. Afterward, individual film layers are transformed into sachets through sealing and filled with liquid sauce. When filling gets done, the next step is to seal the openings of sachet and get them out of machine for further processing.

8.Differentiate Between Liquid Sauce Sachet Packing Machine And Powder Sauce Sachet Packing Machine?

As the nature and flow properties of liquid sauce and powder sauce are different, therefore, two separate machines are used for their packaging. Despite dealing with the packing of sauce, their applications and functions are different. So, let's know the differences that prevail between them!

No	Aspects	Liquid Sauce Sachet Packing Machine	Powder Sauce Sachet Packing Machine
1	Definition	Liquid sauce sachet packing machine is used to process viscous and thin sauces by packing them into single serving sachets.	Powder sauce sachet packing machine is employed to deal with the particles of powder sauces by responsibly encasing them in sachets.
2	Weighing & filling system	It uses multiple weighing and filling system according to sauce properties such as volumetric filling system for thin liquid sauce and piston filling system for viscous and lumpy liquid sauce.	In contrast, the machine can be integrated with either auger filler mechanism for fine powder sauce and volumetric cup filling system for granulated powder sauce.
3	Sachet type	As it deals with liquid sauces, so, it is able to form 3 side, 4 side, and twin sachets with or without spouts for easy discharging of sauce.	While as, it can create 3 side, 4 side, and back side seal sachets without any spouts. However, these sachets may have a zipper for convenient handling.
4	Application	It is applicable for packing all kinds of liquid sauces including ketchup, soy sauce, mayonnaise, chilli sauce, and mint sauce etc.	It is eligible to process sauces available in powder form such as chilli pepper, salt, noodle seasoning powder, and mix condiment powder etc.

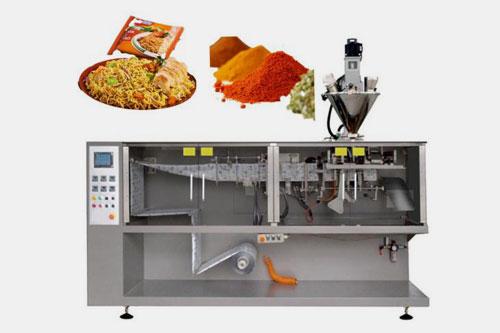

5	Picture	Allpack- APK-130S/240DS premade pouch filling machine	Allpack- APK-130 Horizontal 4 side seal small salt powder granule sachet machine

9.Enlist The Applications Of A Liquid Sauce Sachet Packing Machine?

It is important for buyers of a liquid sauce sachet packing machine to know its worth which can be easily understand by looking into its applications which are given below:

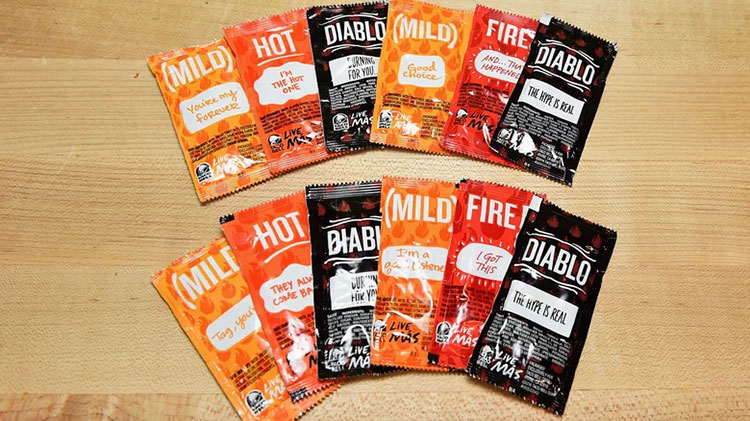

Seasoning Industry

Various sachets of liquid sauces

The use of a liquid sauce sachet packing machine is inevitable in seasoning industry where the manufacturing and processing of products like vinegar, ketchup, soy sauce, and hot sauce is a routine practice. Because they are used as popular serving for fast food and instant food making. That's why, they need single serving and protected primary packaging for which the machine is used.

Beverage Industry

Various juice spouted sachets- Picture Courtesy: Behance

Another prominent application of a liquid seasoning packing machine is beverage industry. As we have seen that juices, drinks, jellies, and smoothies are now available in small size sachets, it is no exception that these liquids are processed by machine other than this one.

Medical Industry

Anti chafing cream sachet

Production and packaging of liquids is also very popular in medical industry. From injection water to cough syrup and ointment, liquids are commonly delivered in handy packages like sachets and stick packs especially for emergency purposes. Therefore, a liquid sauce sachet packing machine can be used for packing these essentials in safe packages.

Beauty Care Industry

Shampoo sachets

Beauty care industry is the fastest growing sector with rise in demand for products such as lotion, shampoo, facial mask, and hair dyes etc. Due to this reason, manufacturers tend to adopt new means of packing and delivering these liquids and most desirable which they found is flexible sachet packaging. Hence, a liquid sauce sachet packing machine can be employed here.

Pesticide Industry

Pesticides packaging- Picture Courtesy: fluidotecnica.com

Pests, pathogens, and insects are the enemies of crops and plants. To keep them away from crops, farmers used to spray pesticides and herbicides etc. Similarly, at homes, people also find it difficult to deal with these organisms for which they opt for pesticides sachets. Hence, to pack these liquid chemicals, a liquid sauce sachet packing machine is suitable.

10.What Is The Method For Checking Leaks Tests of Sachets Being Made By A Liquid Sauce Sachet Packing Machine?

Vacuum leak test of liquid sachets- Picture Courtesy: sanatron.com

Well, the common method being employed for assessing the presence of leaks in liquid sauce sachet is vacuum leak test. It is a non destructive method to check the leaks in flexible packages.

It simply begins with the placement of a sample in an evacuation test chamber. After placing the liquid sauce sachet, chamber is tightly closed and the tester is powered on for functioning. Now, vacuum is applied to pre-set level and the change in vacuum level over a predetermined period of time show the results of the test.

Conducting this test for your finished liquid sauce sachets will ensure safe packaging.

11.What Is The Preventive Maintenance Of A Liquid Sauce Sachet Packing Machine?

A well-maintained machine will uplift your production and will perfectly serve your targets for years to come. That's why, we are sharing a list of guidelines regarding the preventive maintenance of a liquid sauce sachet packing machine to help you make your business more lucrative. They are as follows:

Operator maintaining machine

Machine Inspection:Inspecting machine while during operation is of utmost importance as it enable you to keep recording the inconsistencies being occurred in machine. In addition, you can examine the noise of machine, the misbehavior of any part of the stagnation of any component which is further disturbing other sections from proper working.

Regular Cleaning:Cleaning is obligatory step to be conducted on regular basis. It ensures the safety and hygiene of your machine especially those parts which are in directly contact with material such as hopper, filling nozzles, and sealing jaws etc. For cleaning, it is necessary to use the means and methods as directed in the machine manual and make sure to properly remove out the residues from narrow parts.

Parts Changeover:Liquid sauce sachet packing machine has multiple parts, few with long term functioning while others may face frequent breakdowns. So, you need to be cautious of them and replace them timely in case of wear.

Lubrication:Lubrication is also very important to keep the movable parts of machine smooth running and avoid friction. So, use the recommended grease for lubrication.

12.How To Tackle The Sudden Issues Caused By A Liquid Sauce Sachet Packing Machine?

While operating a liquid sauce sachet packing machine, you may face spontaneous errors which have some technical background and can be easily solved. So, let's know the most common ones!

Machine is not starting

Control panel- Picture Courtesy: Utmost Pack

Cause

The power switch is disconnected with electric board.

There may be incoming power issue due to insufficient power availability.

Solution

Check and replug the power switch.

Make sure to provide sufficient voltage of power as per the requirement of machine.

The temperature of sealing bars is uncontrollable

Marked sealing jaws- Picture Courtesy: universalpack.it

Cause

The temperature sensor is faulty.

Heating device to sealing jaws is damaged.

Solution

Check and repair temperature sensor, replace it if damaged.

Change the heater for sealing jaws.

Improper film tracking during unwinding

Film unwinding issue- Picture Courtesy: Optima Packaging

Cause

Film reel is not placed in the center of spindle or film frame.

The splice tape may be trapped in sachet former.

The belts for unwinding film are settled inaccurately.

Solution

Reset the film and locate it in the center of spindle.

Remove the splice tae from sachet former and check if the former is titled causing film to stick.

Set-up the film pulling belts properly.

Bad vertical and horizontal seals

Bad vertical & horizontal seal

Cause

Inconsisten vertical seal is the result of improper installation of forming tube backstop and the presence of unparallel distance between film and sachet former.

Faulty horizontal seal is caused by the trapping of liquid sauce in seal space.

Solution

Reinstall forming tube backstop and reset the distance between film and bag former.

Readjust the fill and seal time to allow adequate time for liquid to settle in sachet.

13.Things To Know For Choosing The Best Liquid Sauce Sachet Packing Machine?

Every entrepreneur desire to have the best machine but when it comes to purchase a liquid sauce sachet packing machine, most of them get puzzle. So, we have brought for you some valuable tips to consider. These include:

Production Volume

Various liquid sauce sachets

Determining your current production volume is one of the pivotal factor to choose the compatible machine. It simply means to know whether you are running small size industry, medium size, or large size. Thus, it will help you know to choose for single lane or multi-lane liquid sauce sachet packing machine.

Packaging Style

It refers to the outlook of liquid sachet which is influenced by its shape, cutting, and sealing style. So, it you will know the type of packaging style you want to use for your liquid sauce packing, it will be easy for you to opt for the right machine. Moreover, packaging style also affect the selection of different parts such as cutting blades, sealing jaws, and bag former etc.

Quality

Quality

Quality icon- Picture Courtesy: mark1systems.com

Liquid sauce sachet packing machine is meant to deal with edible liquids. Therefore, it must be made from quality material. In this way, ISO, FDA, and GMP are the prominent quality standards which your machine should meet with.

Customer Support & Warranty

Warranty icon

Another significant fact to know is the availability of customer support on part of vendor and their warranty policy. After all you are making a big purchase. So, keep in mind these things while purchasing a liquid sauce sachet packing machine.

Conclusion

To put in a nutshell, Liquid Sauce Sachet Packing Machine is a spectacular equipment that perfectly deals with the primary packaging of liquid sauces into sachets. It features automation, convenience, and adaptability to cater vary needs of the businessmen. You can use it alone or integrate it with other machines to excel the output. However, it also requires responsible handling and regular maintenance which can be done by taking help from above provided information. Now, if you are eager to buy a liquid sauce sachet packing machine from reputable supplier then Allpack is the best option. For further details, visit our website!

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Liquid Sauce Sachet Packing Machine from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

Liquid Sauce Sachet Packing Machine: The Complete Buying Guide In 2024 Read More »

Liquid Seasoning Packing Machine: The Complete Buying Guide In 2024

Sachet Machine

Liquid Seasoning Packing Machine: The Complete Buying Guide In 2024

Just a couple of liquid seasoning can enhance the color, taste, and aroma of your food. So, no space is there for spending hours to give your cuisines the savour you want! But how to preserve the quality and freshness of liquid seasoning itself? The answer is simple, a Liquid Seasoning Packing Machine!

Liquid Seasoning Packing Machine is spectacular equipment brought into the field to responsibly pack liquid seasonings into rigid and flexible packages. The machine is highly resilient, efficient, and hygienic to meet all the specific needs required for processing liquid seasonings. It supports multiple packaging formats, having a simple operational procedure with a compact body. So, let's begin exploring all of its aspects one by one!

Add a header to begin generating the table of contents

1.What Is Liquid Seasoning Packing Machine?

Allpack- APK-338-2 High-speed liquid vertical sachet machine

Liquid seasoning packing machine refers to an equipment tailored with advanced features to process liquid seasonings such as soy sauce, chilli seasoning, and ketchup etc., into rigid and flexible packages.

The machine is highly safe with its body being made from 304 stainless steel which is corrosion resistant and antibacterial. Its structure is food grade and thus it fully ensures the sensitivity and hygiene of liquids being processed. The machine has automatic technology which independently administer the liquid seasoning packing. Hence, it is also suitable to be used in industries beyond seasoning.

2.Enlist The Advantages Of A Liquid Seasoning Packing Machine?

You will find multifarious advantages of a liquid seasoning packing machine in the upcoming paragraphs:

Multi Functioning

Bag forming process

Liquid seasoning packing machine has gained proficiency in undertaking all the tasks automatically in one run. Initiating from bag formation to liquid seasoning weighing, filling, and bag sealing, it intelligently carries out liquid seasoning packing.

Convenient Handling

The machine offers extremely easy way for handling throughout operation and after operation maintenance. For instance, by displaying all the necessary information and option on machine interface, it allows user to set the parameters in machine and thus control its functioning with few clicks. Moreover, the detachable filling system makes it so easy to clean and disinfect it from residues.

Enhanced Productivity

Multiple types of liquid seasoning packs

Liquid seasoning packing machine is fully automatic in its performance that's why it gives you extremely high production output. Its advanced technology and structure support the integration of secondary packaging machine like that of counting machine and cartoning machine for enhancing production efficiency.

High Precision

Precisely packed soy sauce sachet

Another most powerful feature of the machine is its outstanding accuracy which it shows in packing. In essence, by taking the help of intermittently located sensors, the machine makes sure to form bags of same sizes and length as fixed by the operator. In addition to it, liquid seasoning packing machine also dispense precise volume of seasoning in each bag to avoid inconsistencies and errors.

Customization

Customized ketchup sachet

In today's world, the most popular word you will listen from active consumers is customization and same goes for their preference during shopping. So, a liquid seasoning packing machine enable you to create the packages of your choice by altering the bag format, sealing shapes, cutting designs, and adding easy tear for customers' attraction.

3.What Type Of Other Food Liquids Are Packed By A Liquid Seasoning Packing Machine?

A liquid seasoning packing machine is capable of packing all kinds of liquid seasonings and other liquids such as sauces, syrups, and edible oil etc. These are described below:

Liquid Seasoning

Various liquid seasonings

This machine can easily pack liquid seasonings of various nature such as free-flowing seasonings and seasonings with particles. Therefore, it may use piston filling or volumetric filling system for liquid seasoning packing.

Soy Sauce

Soy sauce

Soy sauce is another popular food used as liquid seasoning or additive for adding flavor into various dishes such as chicken, spaghetti, and other food. It is popularly delivered in small flexible sachets to rigid bottles.

Chilli Sauce

Chilli sauce

Chilli sauce is one of the most famous liquid seasonings derived from chilies and combination of other ingredients like vinegar and sugar etc. Therefore, chilli sauce can be found in spicy to sweet form. So, a liquid seasoning packing machine can better retain its quality and essence by enclosing it in beautiful, protected packages.

Vinegar

Vinegar

Different types of vinegar in bottles

Vinegar is a sour liquid used as an ingredient to add taste to food. It is obtained from the fermentation of alcoholic liquids and other food materials like fruits. All these vinegars are carrying potential health benefits. Therefore, a liquid seasoning packing machine can easily pack them.

Ketchup

Ketchup

Ketchup presentation idea

Ketchup is a thick paste of tomato combined with other essential ingredients. It is the most favored dressing often spread on fastfood like pizza, burger, and roll etc. So, there is no doubt that a liquid seasoning packing machine can pack ketchup in various types of packages.

Edible Oil

Cooking oil in jug

Edible oil is also known as cooking oil which is extracted from plants, seeds, and animals. A liquid seasoning packing machine is proficient in packing these edible oils into different style packages while reducing waste and inaccuracies.

4.Write Down The Various Packaging Formats Supported By A Liquid Seasoning Packing Machine?

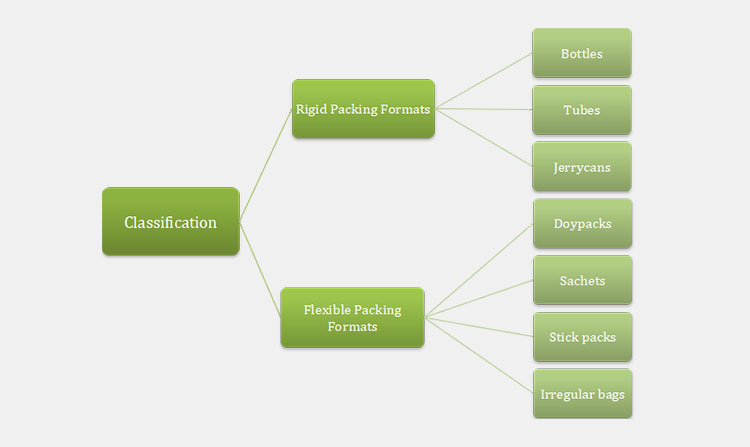

A liquid seasoning packing machine support myriad of packaging formats encompassing both rigid and flexible packages. Let's know them under following headings!

Rigid Packaging

Bottles

Various liquid seasoning bottles

Bottles are small to medium size containers with cap for closing. They are often made from plastic, glass, and occasionally from metal. The taste, color, and freshness of liquid seasonings can be better preserved in bottles, and they offer easy way for closure once opened. Hence, this machine can fill various liquid seasonings into bottles.

Tubes

Tubes

Various liquid seasoning tubes

Another popular rigid packaging type is tube. Tubes are cylindrical shape containers with tapered edges. They are easily squeezable, therefore, most of the sauces like chilli sauce, ketchup, and mayonnaise are delivered in tubes with the help of a liquid seasoning packing machine.

Jerrycans

Soy sauce jerrycan

Jerrycans are rectangular shape containers which can hold large volume of liquid seasoning and other food like cooking oil, dressings, and sauces etc. With recloseable lids and handle for carrying, they are better for storing liquids for long time.

Flexible Packaging

Doypacks

Various liquid seasoning doypacks

Doypacks are also known as standup pouches due to their ability to stand tall on surface without any external support. They are good for holding medium size volume of liquid seasoning and provide strong barrier against light, heat, and moisture. So, a liquid seasoning packing machine can form or process readymade doypacks for packing liquid seasoning.

Sachets

Sachets

Liquid seasoning sachet

Sachets are small size pouches with standard flat and rectangular or square shape. They are easy-to-use and, therefore, used for encasing low volume of liquid seasoning. The common example of liquid seasoning sachet packing is the delivery of liquid seasoning with a noodle pack.

Stick Packs

Various stick packs encasing liquids

Stick packs are narrow tubular shape packages resembling sticks. They are best known for delivering single serving liquid seasoning, dressings, and sauces. Hence, a liquid seasoning packing machine can create beautiful stick packs with eclectic design sealing and cutting.

Irregular Shape Bags

Irregular shape bags of ketchup

Irregular shape bags have no fixed shape rather their shape and format is determined by the manufacturer. As the customization on part of consumers is growing, irregular shape bags are becoming more popular and have a good demand. So, a liquid seasoning packing machine can be better used for making irregular shape bags for liquid seasoning packing.

5.Explain The Working Process Of A Liquid Seasoning Packing Machine?

Working process of a liquid seasoning packing machine depends upon the type of machine. Hence, in upcoming paragraphs, you will be shown the working principles of a premade liquid seasoning packing machine and form, fill, and seal liquid seasoning packing machine. So, let's get started:

Working Process Of A Premade Pouch Liquid Seasoning Packing Machine

Machine Loading & Setting

Hopper loading

Firstly, the loading phase is supposed to be carried out for which bundle of premade pouches are supplied to the magazine of a machine and along with that, the hopper of machine is loaded with liquid seasoning. Afterwards, the operator, by contacting human machine interface, set the basic parameters for machine execution such as data for printing, amount of liquid seasoning, and sealing temperature etc.

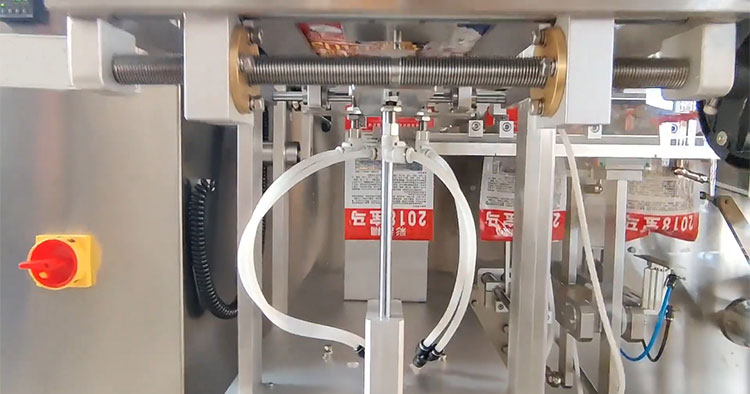

Pouch Opening & Filling

Pouch opening & filing

Secondly, when the machine is powered on, automatic pouch grippers come into action, grab an empty pouch from the rack, and open it by pulling the opposite sides of pouch. Similarly, the optional coding step is carried out where necessary data about material is printed over the pouch and pouch is moved ahead for filling.

Here, the machine start dispensing the pre-weighed amount of liquid seasoning into opened pouch. During this time, the integrated filling system strictly administer the filling to reduce overfilling and under-filling.

Pouch Sealing & Discharging

Pouch sealing & discharging

Finally, when pouch is filled, the next step is to seal it properly for which heated sealers come together and create airtight stringent sealing. Hence, the finished liquid seasoning premade pouches are discharged one by one from the machine in a collection container or adjoined machine for further packaging.

Working Process Of A Form, Fill & Seal Liquid Seasoning Packing Machine

Machine Loading & Setting

Before starting operation, it is significant to load the hopper of machine with liquid seasoning and most importantly supply the machine with a rollstock of film. After machine loading, basic setting of machine is fixed by the operator through touch screen penal.

Pouch Formation

Pouch formation

Now, the machine is switched on and the very first component which comes into action is the film roll wheel. It starts moving in backward direction which results in the unwinding of film. This film is then pulled and guided by rollers. Afterwards, by adding vertical and horizontal seals, the layer of film is turned into pouches.

Pouch Filling

Pouch filling

Moving forward, the formed pouches are now filled with liquid seasoning. However, before filling, the amount of liquid seasoning is properly measured by the machine with the help of concerned filling system such as piston filler or volumetric filler.

Pouch Sealing & Cutting

Pouch sealing & cutting

Upon filling, the filled pouches are pushed forward where a strong sealing is added into each passing pouch. Similarly, the sealed pouches are further beautified by the addition of distinct cut style which varies according to the type of cutting blades being used. Hence, finished pouches are separated from one another through cutting.

Pouch Discharging

Pouch discharging

At last, pouches are ready for outlet and, therefore, they are ejected out of machine for further processing.

6.Describe The Structure Of A Liquid Seasoning Packing Machine?

The structure of liquid seasoning packing machine varies from one type of machine to another; however, the basic components are similar and can be found in every type of machine. Below, we have described the structure of a multi-lane liquid seasoning packing machine:

Structure of 4 side sealing multi-row liquid packaging machine

Hopper

Hopper is the storage tank of machine. It is made from 316 corrosion resistant and antibacterial stainless steel to hold large volume of liquid seasoning inside it and supply the machine liquid seasoning during operation for smooth running.

Weighing Pump

Weighing pump is another crucial component located under the hopper. It is used to measure the volume of liquid seasoning for pouring into each bag. Therefore, it is connected with filling nozzles in its lower side.

PLC Touch Screen

Programmable logic controller touch screen is a human friendly device and a type of small computer placed in the machine. It is solely responsible for noting the parameters setting fixed by the operator. It also displays over it, multiple type of information regarding machine, so, that the user will control machine by interacting with this part.

Filling Nozzles

Filling nozzles are also known as filling heads which are long narrow tubes attached to weighing pump. With the help of these filling nozzles, liquid seasoning is precisely injected into bags.

Bag Former

Bag former is another important tool of a liquid seasoning packing machine. It is responsible for turning the flat layer of film into bags through its specific shape conical heads around which film is wrapped.

Horizontal Seal

The machine has a set of horizontal seal which makes the bottom and top of bag through heat sealing. In addition to horizontal seal, there is a pair of vertical seal which constitute the longitudinal seals of bags during bag formation.

Cutting Device

Cutting device refers to the tool located under the horizontal seal. It is placed in a liquid seasoning packing machine to separate the connected bags into individual packages and also the cutting blades of different shapes and designs are employed for modifying the cutting styles like zigzag, flat, and round etc.

Conveyor

Conveyor is a transmission device attached to the main machine for purpose of mobilizing finished liquid seasoning bags from machine into a collection container or adjoined machine for further packaging.

Main Frame

Main frame constitutes the support body of machine which is made from 304 stainless steel. It is very helpful in keeping all other components together and ensuring smooth performance of machine.

Control Board

It is the brain of machine comprised of several knobs including emergency stop, start button, and temperature regulating button etc.

Control Cabinet

Control cabinet is an electric enclosure with a door. Here the electrical connections of machine in form of wires, boards, and fuses are placed for safety purpose.

Film Roll

Film roll is a stock of film and is also called a film reel. It is supplied to the machine for making bags.

Film Unwinding Unit

Multiple rollers or pulleys which help in film unwinding and guiding are collectively known as film unwinding unit.

7.What Is The Classification Of A Liquid Seasoning Packing Machine?

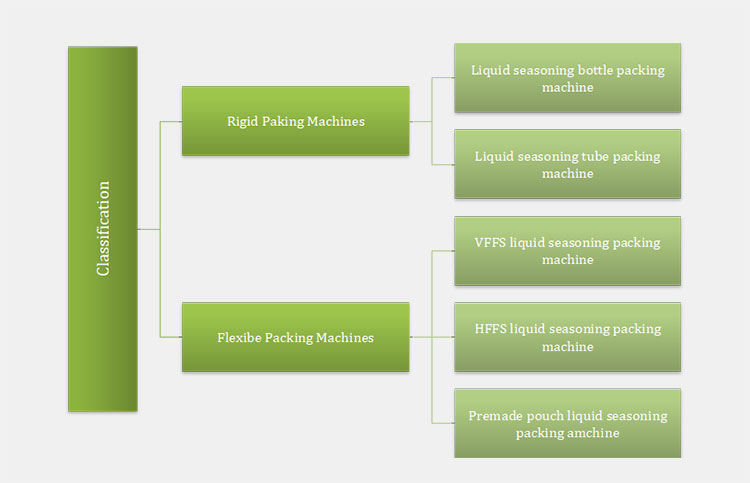

Liquid seasoning packing machine can be classified into different types which are explained below:

Rigid Packing Machine

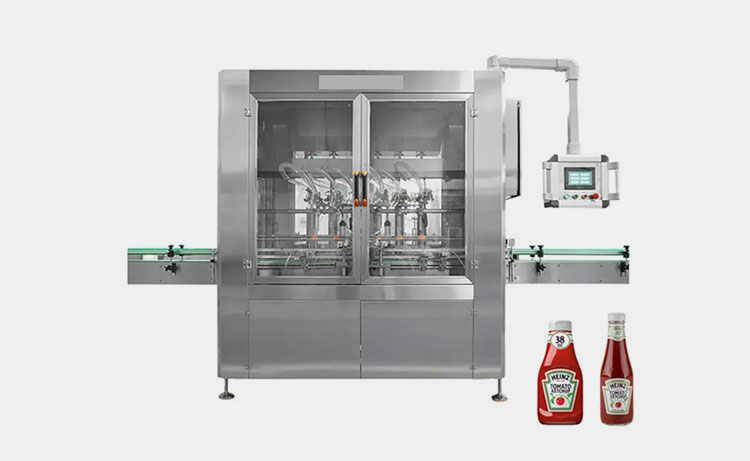

Liquid Seasoning Bottle Packing Machine

Ketchup filling machine

Liquid seasoning bottle packing machine is the latest new automatic machine employed to deal with the ever-increasing demand of liquid seasoning packing in bottles. The machine has multiple filling nozzles and a fitted piston filling system to ensure nonstop consistent packing. By adjusting its structure, bottles of various sizes and shapes can be processed by it.

Structure

The structure of machine is composed of several parts including a stainless steel body, electric cabinet, PLC touch screen, filling heads, a piston filler, and a conveyor belt.

Working Principles

The machine start working when bottles are fed onto conveyor belt. When these bottles reach the filling station, the machine detect their presence and filling heads start discharging liquid seasoning into bottles until the desired level is reached. Now, bottles are conveyed for capping and labeling.

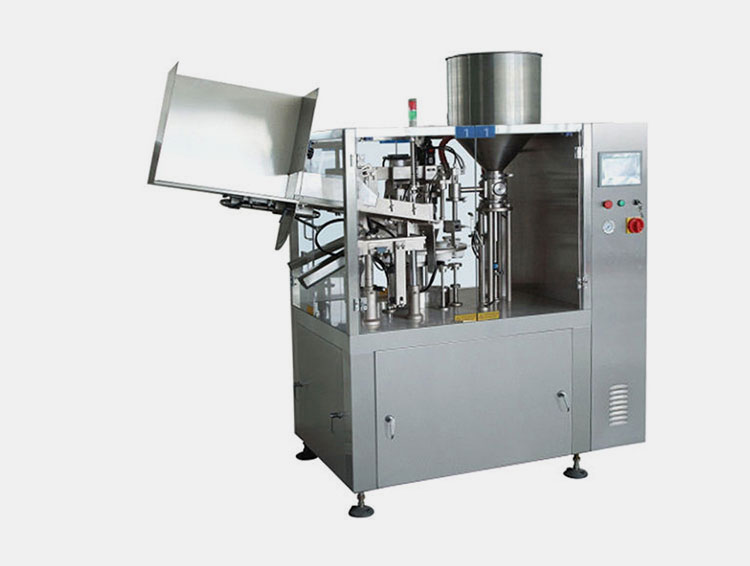

Liquid Seasoning Tube Packing Machine

NF-60 Automatic Plastic/Laminated Tube Filling & Sealing Machine

Liquid seasoning tube packing machine is unique design automatic machine tailored to pack liquid seasoning into tubes through filling and sealing. This machine is specialized in packing free-flowing and thick liquid seasoning. It is multi tasking with the same machine performing tube orientation, filling, sealing, coding, and trimming. It has fast production output with finishing up to 50 tubes per minute.

Structure

The machine is an assembly of several small to large parts including a stainless-steel body, four stable feet, electric enclosure, tube magazine, material hopper, control panel, and a rotary turret for tube filling, sealing, and cutting etc.

Working Principles

The working principles of the machine are simple with tubes feeding into a machine where tubes are fitted on a rotary turret. This turret then start rotation and take pauses after intervals which result in tube filling, sealing, printing, and final ejection from machine.

Flexible Packing Machine

Vertical Form Fill & Seal Liquid Seasoning Packing Machine

Allpack- APK-338-2 High-speed liquid vertical sachet machine

Vertical form fill and seal liquid seasoning packing machine is an excellent machine with small footprint. It can beautifully create bags of various sizes and length with vibrant sealing and cutting formats. It allows you to increase production and reduce downtime by combining the bag filling and sealing into single step.

Structure

The body of machine is vertical in its construction; therefore, it is quite easily manageable and can be mobilized conveniently from one place to another. It consists of a side hopper, bag forming mechanism, electric enclosure, vertical and horizontal seals along with control system and film roll.

Working Principles

It carries out the function of liquid seasoning packing by unwinding film from roll location on the top side of machine. This film is then drawn downward in vertical direction and is sealed from bottom and sides. Afterwards, the bag is loaded with liquid seasoning, sealed from top, and ejected from machine after cutting.

Horizontal Form Fill & Seal Seasoning Packing Machine

Allpack- APK-240D Horizontal honey ketchup sachet machine

Horizontal liquid seasoning packing machine is characterized by its horizontal body which proficiently carry out multiple tasks of bag forming, filling, and sealing. The machine support twin bag formulation with 3 or 4 side seal and having a good production output with packing up to 100 bags per minute.

Structure

The structure of machine is horizontal covering more workspace. Its major parts include a main frame, double hopper, control system, bag forming system, material weighing and filling system and sealing system etc.

Working Principles

It works by unwinding film from roll which is then passed through guiding rollers. The film is then turned into bags through folding and sealing. Similarly, the material is measured and then filled into bags. At last, ready liquid seasoning bags are taken out of machine via discharge chute.

Premade Pouch Liquid Seasoning Packing Machine

Allpack- Rotary liquid premade pouch filling machine

Premade pouch liquid seasoning packing machine is designed to meet extremely high production targets; therefore, it is used to just fill and seal the readymade pouches with liquid seasoning. The machine has an attached piston filling system which can be altered with other filling system depending upon the material need.

Structure

The structure of machine is heavy-duty but compact with two major parts including filling system and pouch processing unit. The main components are motor, support body, pouch magazine, bag processing channel, control system, and conveyor belt.

Working Principles

The working principles of machine are simple with the first step involving pouch picking from magazine. After that, the grippers hold the pouch, open it, and get it filled with liquid seasoning. Similarly, the pouch is sealed and ready for delivery through conveyor belt.

8.Differentiate Between Liquid Seasoning Packing Machine And Solid Seasoning Packing Machine?

In the table below, you will know about the differences that prevail between a liquid seasoning packing machine and solid seasoning packing machine:

No	Factors	Liquid Seasoning Packing Machine	Solid Seasoning Packing Machine
1	Definition	Liquid seasoning packing machine is a specialized equipment designed to pack all kinds of liquid seasoning into bags and containers.	On the other hand, solid seasoning packing machine is used for packing solid seasoning into packages.
2	Type of filling system	It uses volumetric filling system, piston filling system, or gravity filling system for liquid seasoning packing.	While as, this machine takes help of an auger filler, volumetric cup filler, or basculating filler for dealing with solid seasoning intricacies.
3	Type of bag	Such type of machine is capable of packing stick packs, spouted doypacks, and flat pouches.	In contrast, this type of machine can easily pack pillow bags, gusseted bags, and retort pouches.
4	Type of material	It is capable of packing liquid seasonings in all its thin to thick and highly viscous form.	Contrary to that, solid seasoning packing machine is proficient in packing powdered and granulated seasonings.
5	Application	It is best suitable for processing soy sauce, chilli sauce, ketchup, mayonnaise, yogurt, and other liquid seasoning.	This machine is perfect for packing powered condiments and seasoning like salt, pepper, chilli powder, and cumin seed etc.
6	Picture	Allpack- APK-130S/240DS premade pouch filling machine	Allpack- APK-130 Horizontal 4 side seal small salt powder granule sachet machine

9.Highlight The Uses Of A Liquid Seasoning Packing Machine?

A liquid seasoning packing machine has wide range of applications in almost every industry where there is processing of liquids. Few of the prominent sectors have been taken into context in the underlying paragraphs:

Seasoning Industry

Various liquid seasoning and sauces in bowls

The very first application of a liquid seasoning packing machine is itself a seasoning industry where products like sauces, dressings, liquid seasoning, and food additives are produced and processed. That's why, this machine can better perform packing of all these products.

Edible Oil Industry

Edible olive oil pouch

Edible oils are obtained from plants, vegetables, and animal sources. They are used in industrial food manufacturing and home cooking throughout the world. Therefore, their demand is quite high. To meet this end, liquid seasoning packing machine is used to efficiently pack edible oil into handy spouted pouches, bottles, and sachets.

Medical Industry

Cough syrup packaging

The use of a liquid seasoning packing machine can be also realized in medical industry where different types of pharmaceutical, nutraceutical, herbal, and veterinary liquid medications and supplements are prepared in liquid form. Therefore, the machine is used to safely pack these materials in packages.

Cosmetic Industry

Liquid hair dye sachets

Another notable application of a liquid seasoning packing machine is cosmetic industry. Here products like shampoo, conditioner, hand washing gel, hair dye, and lotion etc., are safety packed into small and large size packages by taking help of this machine.

Pesticide Industry

The use of pesticides, herbicides, and insecticides is very important for protecting crops from insects, weeds, pests, and other fungal diseases. Therefore, pesticide industry has now expanded its production so as packaging. Similarly, you will see that a liquid seasoning packing machine can be used here to pack liquid pesticides into small and large size packages.

10.How To Ensure Leak Free Packing With A Liquid Seasoning Packing Machine?

It is very essential to make sure that all the packages you pack by using a liquid seasoning packing machine are free from leaks. If not paid heed, the presence of leaks can ruin your production and result in huge losses. Therefore, to ensure leak free packing with a liquid seasoning packing machine you just need to employ a proper leakage test for finished packages.

Leaked liquid sachet

For this, vacuum leak detector is required where a finished pack of liquid seasoning will be placed inside the detector. Now, operator is required to observe the change that take place inside the water filled chamber of vacuum leak detector where package is laying.

If there appear bubbles and the pressure start dropping it means that package has a leak. However, if the pressure remains constant with no change being recorded inside the chamber, then your package is free from leaks and your business is at safe side.

11.How To Maintain A Liquid Seasoning Packing Machine?

Maintenance is very crucial for keeping your liquid seasoning packing machine on right track. It helps you in extending the working life of your machine as well as its working pace. In this way, we have explained some tips for your ease under following headings. So, read them carefully:

Operator maintaining machine

Preventive Maintenance

It refers to the regular maintenance of machine which is conducted for the sake of avoiding failures and sudden breakdowns. Therefore, operator is required to keep inspecting the different parts of machine during operation, lubricate the movable parts, carry out the cleaning of hopper, filling heads, and machine, and most importantly adjust the structure of machine before operation.

It also includes the noticing of parts performance and replacing them timely before they result in any breakdown. Moreover, the resetting of internal parameters of machine is also very significant to make sure that machine works properly.

Breakdown Maintenance

Such type of maintenance is carried out after any part of machine stop functioning due to failure or damage. In such case, it is crucial to repair that part and if the tool is out of order replace it with new functioning one.

12.Troubleshoot The Common Errors Of A Liquid Seasoning Packing Machine?

It is impossible that you operate a machine, and it will function smoothly without any error throughout its working life. Same goes with a liquid seasoning packing machine. Therefore, we have highlighted some of the common problems caused by this machine along with its possible reasons and solutions. They are as follows:

Machine does not power on

Operator checking machine

Causes

There is error in incoming power.
The power is insufficient.
Connection between machine and electricity is disconnected.

Solutions

Check the incoming power.
Make sure the voltage of power is sufficient for machine.
Reconnect the machine by replug.

Film tracking error

Film unwinding error

Causes

Film roll is not placed in the center of spindle.

Accumulation of dirt on brake roller.

Inaccurate tension on film.

Solutions

Place the film roll in center of spindle.

Clean the brake roller for accurate functioning.

Release parallel tension on film from both sides to avoid film unwinding error.

Bad vertical and horizontal seals

Highlighting bad vertical & horizontal seal

Causes

The space between bag former and film is inaccurate.

Sealing jaws are not properly aligned and resulting in wrinkled sealing.

Temperature inaccuracies cause weak or burned sealing.

Solutions

Adjust the distance between forming tube and film.

Align the horizontal sealing jaws for perfect sealing.

Make sure to keep the temperature of sealing jaws at suitable level and in accordance with film properties.

Liquid seasoning filling inconsistencies

Blocked filling nozzles

Causes

The integrated filling system is incompatible.

The filling nozzles are blocked due to residues accumulation.

The machine is not evenly placed on surface.

Solutions

Attach the filling system as per material requirement.

Keep the hopper and filling nozzles clean after daily task to ensure smooth flow of material.

Place the machine on even surface.

13.Factors Responsible For Choosing The Best Liquid Seasoning Packing Machine?

When choosing a liquid seasoning packing machine certain factors must be considered for making a sound purchase. These include:

Machine Specifications

Machine specifications

The buyer should check the specifications of machine including its speed, accuracy, and customization at which it pack the liquid seasoning packages. It will be helpful in a way that the machine will meet the basic needs of manufacturer including its production target and packaging formats.

Machine Quality

Quality control icons

Checking the quality of a liquid seasoning packing machine is another pertinent aspect to consider. It simply includes the examination of machine's compliance to local and international quality standards such as GMP, FDA, and ISO etc. It ensures that machine is highly safe and relevant for processing food products.

Price

Price

Calculating price

The overall cost of machine along with its installation and maintenance cost must be estimated to keep yourself fully prepared for purchasing. Otherwise, your unawareness regarding the price of machine might lead you to money and time loss.

Installation & Warranty

Warranty card benefits

Ask your vendor for installation and after-sale services if any. Along with that, considering the warranty policy of the supplier is another most important factor which will help you determine the quality and assurance of machine.

Conclusion

To sum up this detailed buying guide about a Liquid Seasoning Packing Machine, it is now clear that demand of this machine is growing, and manufacturers are concerned about choosing the best one. That's why, we have thoroughly discussed the features, working process, structure, and types of a liquid seasoning packing machine, so, that you will be able to choose the best for you. If you are still confused or want to have topnotch liquid seasoning packing machine, then contact Allpack which has an amazing inventory of packing machines with one year of warranty. For further updates click on the given link!

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Liquid Seasoning Packing Machine from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

Liquid Seasoning Packing Machine: The Complete Buying Guide In 2024 Read More »

Sachet Machine

Pesticide 4 Side Sealing Packing Machine: The Complete Buying Guide in 2024

Pesticide 4 Side Sealing Packing Machine: The Complete Buying Guide in 2024

1.What is a pesticide 4 side sealing packing machine?

2.What are the benefits of using a pesticide 4 side sealing packaging machine?

3.What are the industrial applications of a pesticide 4 side sealing packing machine?

4.What are the fundamental components of a pesticide 4 side sealing packing machine?

5.How does a pesticide 4 side sealing packing machine work?

6.How do you classify a pesticide 4 side sealing packing machine?

7.What is the typical production speed of a pesticide 4 side sealing packing machine?

8.Can the pesticide 4 side sealing packing machine be customized for different packaging sizes and shapes?

9.What types of pesticides can be packaged using a pesticide 4 side sealing packing machine?

10.What are the maintenance requirements for a pesticide 4 side sealing packing machine?

11.What are the common challenges faced during the operation of a pesticide 4 side sealing packing machine, and how can they be overcome?

12.What should businesses consider when selecting a pesticide 4 side sealing packing machine?

Conclusion

Don't forget to share this post!

CONTACT US

Stick Packaging Machine VS Sachet Machine

Stick Packaging Machine VS Sachet Machine

1.What Is Stick Packaging Machine VS Sachet Machine?

2.What Are the Applied Industries of Stick Packaging Machine VS Sachet Machine?

3.What Is the Difference Between Stick Packaging Machine and Sachet Machine?

4.What Material Do the Stick Packaging Machine VS Sachet Machine Adopt?

5.What Are Advantages of Stick Packaging Machine VS Sachet Machine?

6.What Are the Main Parts of the Stick Packaging Machine VS Sachet Machine?

7.What Technology Do Stick Packaging Machine VS Sachet Machine Adopt?

8.The Market of Stick Packaging Machine VS Sachet Machine

9.Which One is Better? Stick Packaging Machine VS Sachet Machine?

Conclusion

Don't forget to share this post!

CONTACT US

What is the Difference between a Stick Pack and a Sachet?

What is the Difference between a Stick Pack and a Sachet?

1.What Is a Stick Pack and a Sachet?

2.What Are the Applied Industries of Stick Packsand Sachets?

3.What Is the Difference between a Stick Pack and a Sachet?

4.What Materials Can Be Packaged in a Stick Pack and a Sachet?

5.What Is the Advantages of a Stick Pack and a Sachet?

6.What Are the Machines for Producing Stick Packs and Sachets?

Conclusion

Don't forget to share this post!

CONTACT US

Liquid Sauce Sachet Packing Machine: The Complete Buying Guide In 2024

Liquid Sauce Sachet Packing Machine: The Complete Buying Guide In 2024

1.What Is A Liquid Sauce Sachet Packing Machine?

2.Write Down The Eclectic Advantages Of A Liquid Sauce Sachet Packing Machine?

3.Enumerate The Popular Liquid Sauces Processed By A Liquid Sauce Sachet Packing Machine?

4.What Packaging Formats Does A Liquid Sauce Sachet Packing Machine Support?

5.How To Operate A Liquid Sauce Sachet Packing Machine?

6.What Are The Major Components Of A Liquid Sauce Sachet Packing Machine?

7.Are There Any Types Of A Liquid Sauce Sachet Packing Machine?

8.Differentiate Between Liquid Sauce Sachet Packing Machine And Powder Sauce Sachet Packing Machine?

9.Enlist The Applications Of A Liquid Sauce Sachet Packing Machine?

10.What Is The Method For Checking Leaks Tests of Sachets Being Made By A Liquid Sauce Sachet Packing Machine?

11.What Is The Preventive Maintenance Of A Liquid Sauce Sachet Packing Machine?

12.How To Tackle The Sudden Issues Caused By A Liquid Sauce Sachet Packing Machine?

13.Things To Know For Choosing The Best Liquid Sauce Sachet Packing Machine?

Conclusion

Don't forget to share this post!

CONTACT US

Liquid Seasoning Packing Machine: The Complete Buying Guide In 2024

Liquid Seasoning Packing Machine: The Complete Buying Guide In 2024

1.What Is Liquid Seasoning Packing Machine?

2.Enlist The Advantages Of A Liquid Seasoning Packing Machine?

3.What Type Of Other Food Liquids Are Packed By A Liquid Seasoning Packing Machine?

4.Write Down The Various Packaging Formats Supported By A Liquid Seasoning Packing Machine?

5.Explain The Working Process Of A Liquid Seasoning Packing Machine?

6.Describe The Structure Of A Liquid Seasoning Packing Machine?

7.What Is The Classification Of A Liquid Seasoning Packing Machine?

8.Differentiate Between Liquid Seasoning Packing Machine And Solid Seasoning Packing Machine?

9.Highlight The Uses Of A Liquid Seasoning Packing Machine?

10.How To Ensure Leak Free Packing With A Liquid Seasoning Packing Machine?

11.How To Maintain A Liquid Seasoning Packing Machine?

12.Troubleshoot The Common Errors Of A Liquid Seasoning Packing Machine?

13.Factors Responsible For Choosing The Best Liquid Seasoning Packing Machine?

Conclusion

Don't forget to share this post!

CONTACT US

Get the latest information on pharmaceutical packaging equipment.
