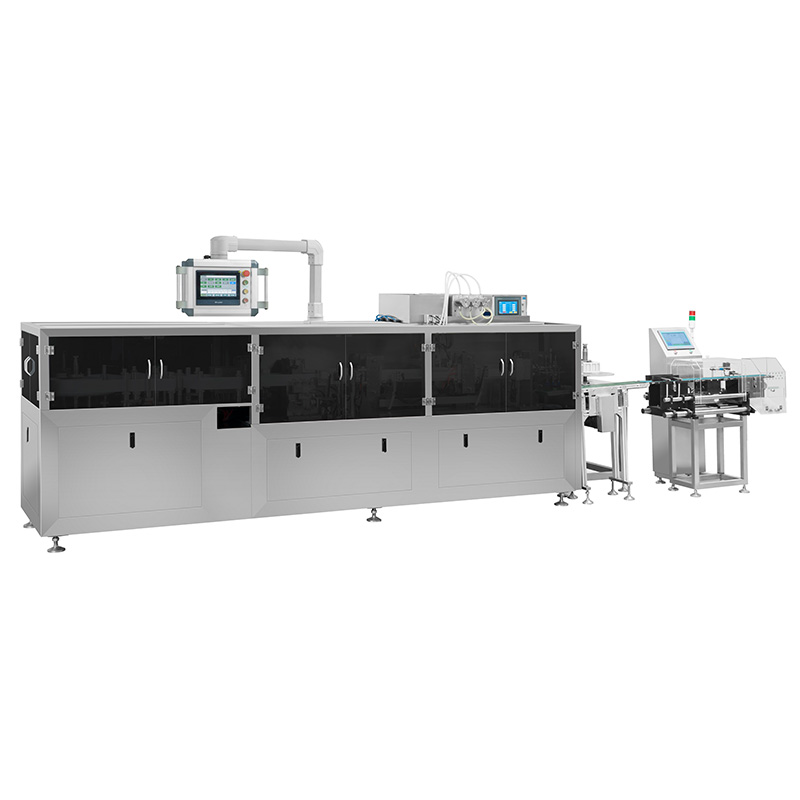

Multi-Function Apk-180 Disposable Snap Sachets Packing Machine 5ml 10ml For Olive Oil Ketchup Liquid Perfume Packing Machine
Allpack one hand snap sachet machine is a novel packaging form for fluid or semi-fluid materials, which can be used in cosmetics, food and other related industries. The one hand sachet machine is widely used for liquid and paste filling in industries such as washing liquid, nursing liquid, oral liquid, disinfectant, secondary throwing, edible oil, cosmetics, honey, tomato sauce, olive oil, seasoning etc.Its characteristics are that the product can be open by one hand, the liquid or semi-liquid can be squeeze out easily,also the product is convenient to carry.
The machine is designed for the single hand opening products. The production process of the equipment includes cutting opening line in the hard film, soft film forming, filling, sealing, full plate cutting,finished product removal, etc. Typesetting can be made according to the different products shape. The packaging appearance can be designed according to the requirements of various special shapes.
Allpack One Hand Snap Sachet Machine Samples:
Multi-Function Apk-180 Disposable Snap Sachets Packing Machine Features:
1. PLC control, imported servo speed control.
2. The 6 stations of unwinding, bag forming, filling, creasing, punching and waste collection are automatically completed by the program.
3. The touch screen is set up, and the operation is simple and clear.
4. The filling head does not drip, foam or overflow.
5. The relevant parts in contact with the liquid medicine are all made of high-quality stainless steel, which conforms to the GMP standard.
6. The main pneumatic components and electrical appliances adopt imported accessories.
7. There are two kinds of electronic ceramic pump automatic control processing system and mechanical filling, with small measurement accuracy error.
Multi-Function Apk-180 Disposable Snap Sachets Packing Machine Technical Specification:
| Maximum forming depth | 12mm |
| Number of Presidents | 0-25 |
| Packaging Materials | PVC/pet/PE(0..4-0.6)×120mm |
| Filling capacity | 1-60ml |
| Total power of power supply | 6.5Kw |
| Voltage | 380V/50Hz |
| Total machine | 1200Kg |
| Dimensions | 3200×850×1400mm |
Multi-Function Apk-180 Disposable Snap Sachets Packing Machine Video:
