Introduction:

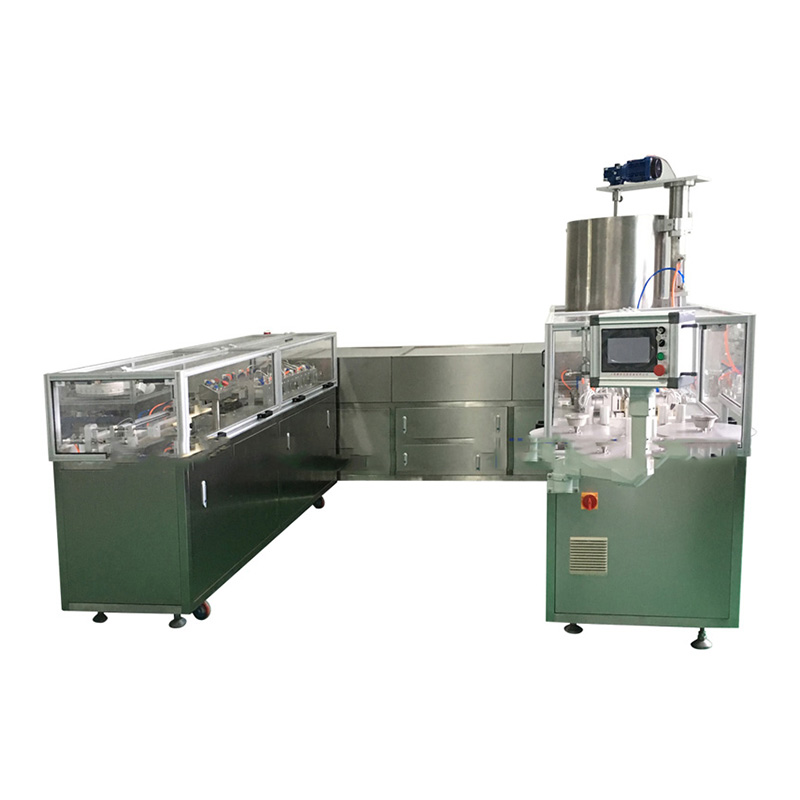

SP- 7L type full automatic filling production line has a stable and efficient suppositories preheating mold, heated mold, molding, belting, canned, frozen, sealing bolt all production processes such as complete system process, grain production capacity of 8,000-12,000 / hour.
Feature:
- Using inset filling, accurate in position, non-dribbling drug, non-hanging wall and high precise in counting.
- Be wide in suitability, can be used to fill high gluing degree gelatin group and the traditional Chinese medicine ware.
- Using PLC written formula control and industry grade person-machine inerface operation, possessing characteristics of high degreeautomatization convenience in adjustment highprecise thermo-control reliability in action and steady in running etc.
- Having big volume storing fluid vessel, laying homeothermia stirring and fluid surface autocontrol assembly.
- Relieving worker’s physical labor strength for lower position of filling drug fluid, laying cycling to supply fluid and keeping thermo equipment of channel pathways, and it will ensure drug fluid not be coagulated when machine stop.
- Small area occupied,easy to operate.
- Machine adopts Stainless Steel 304/316.
Specification:
|
PECIFICATIONS FOR SP-7L Middle Speed Suppository production Line
|
|||
|
Capacity
|
pcs/h
|
8,000-12,000
|
|
|
Volume
|
ml
|
0.5—5
|
|
|
Film thickness
|
PVC/PE
|
0.15mm
|
|
|
Tank volume
|
L
|
50
|
|
|
Working air pressure
|
Mpa
|
≥0.6
|
|
|
Air consumption/minute
|
m3
|
1.5
|
|
|
Water Consumption
|
H
|
50kg (Recycling)
|
|
|
Suitable suppositories
|
Shapes
|
Bullet shape, Duck mouth shape and other shapes
|
|
|
Overall dimensions
|
mm
|
(L)3,200(W)2,930(H)2,100
|
|
