Introduction:

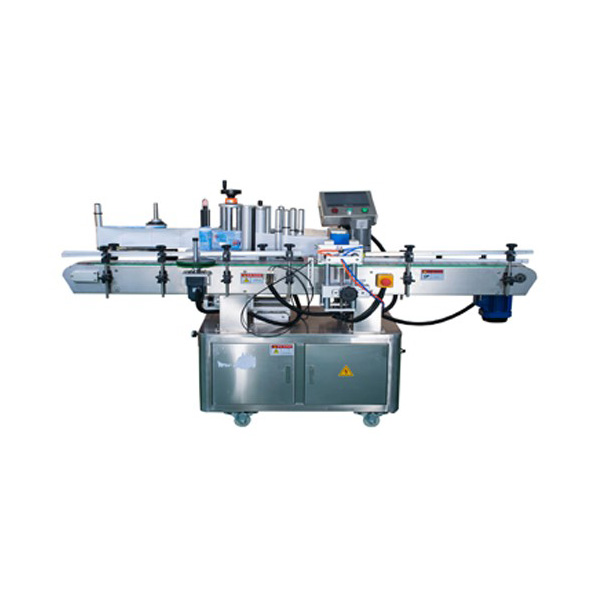

Applies to the circumferential surface of the object class round bottle labeling, can be attached to a single standard
and double standard, are back double standard spacing can be flexibly adjusted, such as gel water round bottles,
cans and other round food labeling, widely used in cosmetics, food, pharmaceuticals, disinfectant and other industries.
Optional peripheral location detection means can be realized in the circumferential surface labeling the specified location.
Optional Tape printer and inkjet printer to achieve the production date printed on the label and batch information to
achieve labeling – endowed integration.
Feature：
1. Powerful, the same device can be realized in a single class of objects round bottle labeling and double standard
labeling standard, double standard spacing can be flexibly adjusted. Optional peripheral location detection device can
be realized in the circumferential surface positioning labeling function;
2. Labels overlap and high pressure top configuration mechanism that combines 3-axis positioning mechanism, to prevent fluctuations in the bottle, improve labeling accuracy;
3. Automatic bottle, using spring-minute bottle organizations to effectively eliminate the error caused by the sub-bottle bottle itself is not smooth, improve stability;
4. Touch screen control, human-machine interface with the operating teaches functions, parameter modification intuitive,
easy to switch various functions;
5. Intelligent control, automatic photoelectric tracking, with no object no labeling, no label auto-correction and auto-detection function labels, tags and drain to avoid wasting stickers;
6. Solid health, primary aluminum production made of stainless steel and high-quality firm, in line with GMP production requirements;
7. With automatic shutdown function, production counting function, power saving function (no production within the set time, the
device automatically to power-saving standby mode), the production number setting prompts, parameter setting protection function
(parameter setting sub-rights management) to facilitate the production and management;
Specification:
◆ Suitable label length (mm): 20mm ~ 285mm
◆ Applicable Label width (backing paper width / mm): 20mm ~ 160mm
◆ Applicable Dimensions (length × width × height / thickness) :/
◆ Applicable Products diameter (for round bottle) and height: diameter: φ25mm ~ φ90mm, Height: 25mm ~ 300mm
◆ Applicable standard roll diameter (mm): φ280mm
◆ Applicable standard roll diameter (mm): φ76mm
◆ Labeling accuracy (mm): ± 1mm
◆ The standard speed (m / min): Servo: 5 ~ 25m/min, Stepping: 5 ~ 19m/min
◆ Labeling speed (pcs / min): Stepping: 25 ~ 45pcs/min, Servo: 30 ~ 60pcs/min
◆ Conveyor speed (m / min): 5 ~ 18m/min
◆ Weight (kg): about 185kg
◆ Frequency (HZ): 50HZ
◆ Voltage (V): 220V
◆ Power (W): Traction Step: 570W, Traction servo: 980W
◆ Device dimensions (mm) (L × W × H): 1950mm × 1200mm × 1530mm
◆ Pressure (Mpa): 0.4 ~ 0.6Mpa
