DESKTOP FIBER LASER MARKING MACHINE RMD-PL200A

DESKTOP FIBER LASER MARKING MACHINE RMD-PL200A

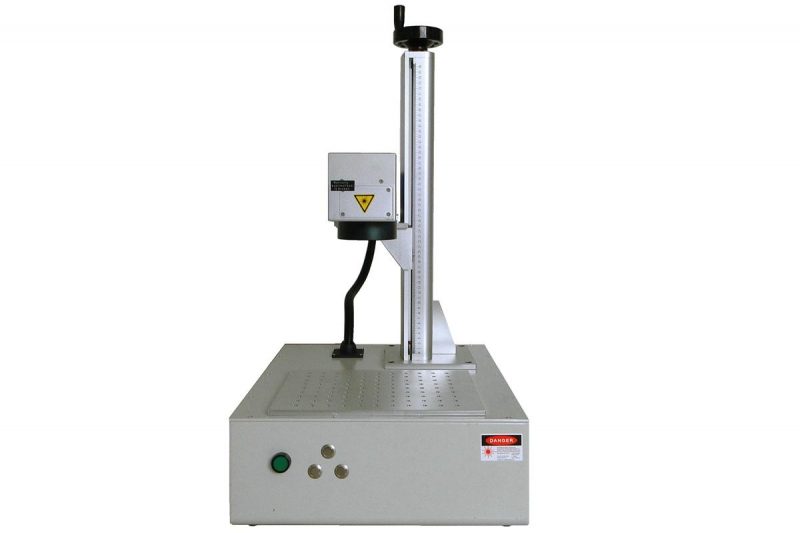

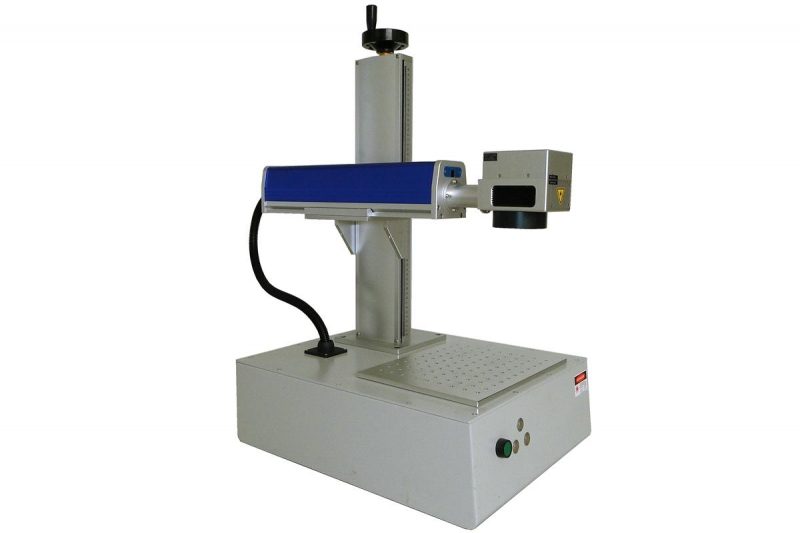

PL200a is desktop fiber laser marking .The precision fiber laser marking machine offers a complete solution for fast speed marking on metal and non-metal materials,such as some hard plastics. The mini fiber laser marker meets user’s various requirements for elaborate patterns.

This type of small laser marking machine is worldwide accepted in the market of less weight metal marking. The machine also can be called mini fiber laser marking machine,small laser marking machine,mini fiber laser marker,small fiber laser marker,mini fiber laser engraver,mini fiber laser engraving machine,laser engraving machine metal.

Application Field:

Materials:Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )

Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC PR PE pipe, medical equipment, packaging bottles, etc.)

Industry:Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.

Product Advantages:

1. Optical Fiber Laser, environment friendly, easy maintenance.

2. Life of the laser can be up to 100000 hours.

3. Runs without consumable spare parts, no need maintenance, great for continuous working.

4. Good touch interface and powerful control system.

5. Advanced digital high speed scanning galvanometer.

6. Small volume, quick speed, good stability

7. New & Original EZCAD Laser marking software

PCX, DXF, support PLT, BMP, SHX, TTF font can be used directly

8. Software running on the WINDOWS platform, English interface, compatible with Coreldraw, AutoCAD, software such as Photoshop file

Technical Parameters:

Machine Model	PL200-20	PL200-30	PL200-50
Laser Power	20w	30w	50w
Laser Wavelength	1064nm	1064nm	1064nm
Fiber Length	2.5m	2.5m	2.5m
Cable Length	1.5M or Customize longer
Laser Unit Using Life	100,000 Hours	100,000 Hours	100,000 Hours
Marking Speed	≤7000mm/s（Character marking speed and production line speed depend on material, character size and desired marking quality）
Marking Speed	2-3 digital(2*3mm)/0.01s	3-5 digital(3*5mm)/0.01s	3-5 digital(3*5mm)/0.01s
Marking Deepth	0.01-0.1mm(Based on Material)	0.01-0.2mm(Based on Material)	0.01-0.2mm(Based on Material)
Min.Line Width	0.01mm	0.01mm	0.01mm
Min.Character Height	0.2mm	0.2mm	0.2mm
Marking Filed	F160/110*110mm,F210/145*145mm,F254/175*175mm or Customize longer
Power Supply	220V/110V 50HZ/2A	220V/110V 50HZ/2A	220V/110V 50HZ/2A
Power Consumption	600W/Hour	600W/Hour	600W/Hour
Cooling	Air	Air	Air
Positioning	Visible Red Power	Visible Red Power	Visible Red Power
Operating Temperature	0°C-40°C	0°C-40°C	0°C-40°C
