PLC automatic control
High accuracy fabrication technology for deposit piston and copper
Stable running with low noise and long life
Tell us your material or budget, we'll reply you ASAP within 24 hours

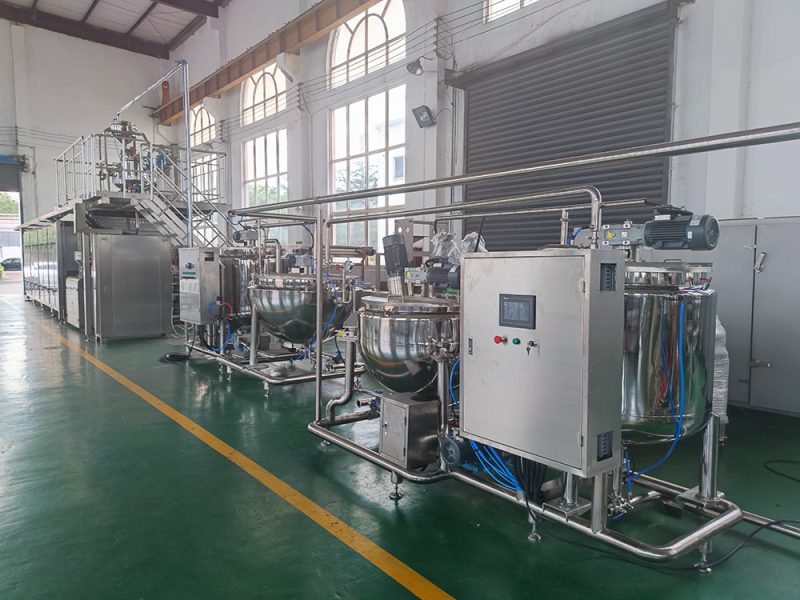

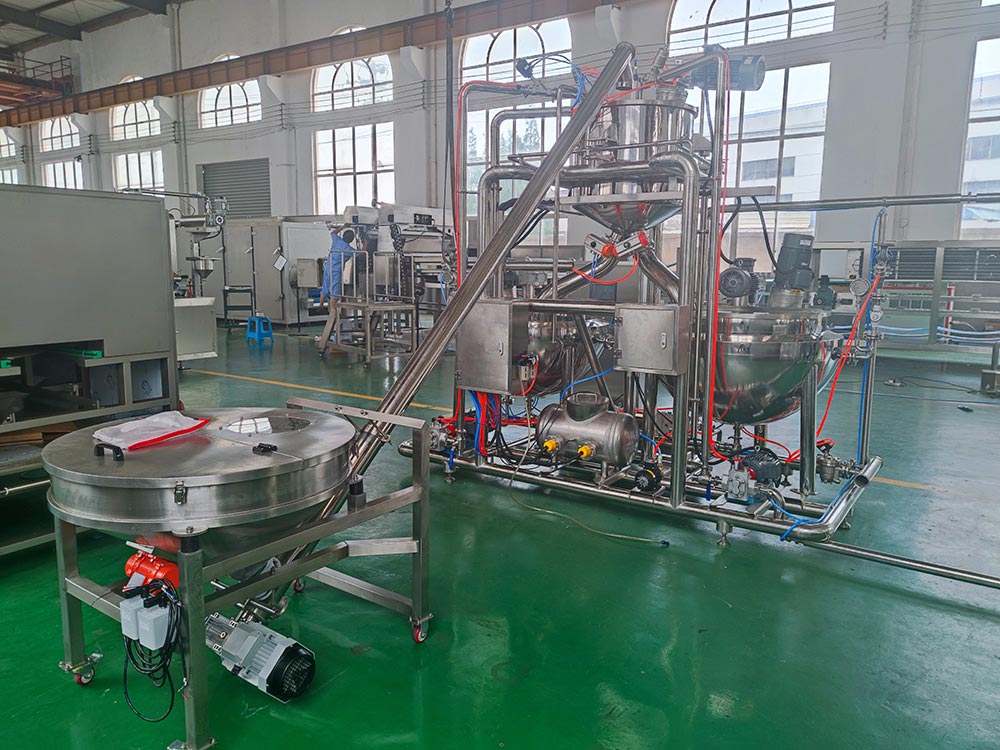

APK-GM600Q Large Scale Gummy Making Machine Jelly Gummy Candy Bean Depositing Line
Allpack APK-GM600Q large scale gummy making machine can be used to produce various styles of candy and a variety of formulas and shapes of candy, including soft candy, hard candy, toffee sugar, jelly gummy candy, chocolate and so on. It is widely used in small output candy production line, laboratory candy forming processing equipment. Features Multi-purpose, suitable for pouring hard candy, soft candy, toffee and all kinds of pouring shaped candies. Compact shape, compact structure, stable performance, easy control. The depositing quantity can be selected, the running speed can be adjusted according to the need. The working power of this machine is compressed air, and the whole working environment is clean and hygienic, which meets the production requirements of food hygiene.
Allpack APK-GM600Q Large Scale Gummy Making Machine Features:
1.PLC /computer process control available.
2.An LED touch panel for easy operating.
3.The production capacity is 600kg/h or more.
4.The contacting food parts are made of hygienic Stainless Steel SUS304.
5.Optional (mass) flowing controlled by Frequency inverters.
6.In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid.
7.Dosing pumps for the automatic injection of colors, flavors and acids.
8.One set of extra jam paste injection system for making fruit jam-center filled candies（optional.
9.Use automatic steam control system instead of the manual steam valve which control a stable steam pressure supplying to the cooking.
10.Moulds can be made according to the candies samples provided by the customer.
Allpack APK-GM600Q Large Scale Gummy Making Machine Technical Specification:
| Model | APK-GM80Q | APK-GM150 | APK-GM300 | APK-GM450 | APK-GM600 |
| Capacity | 80 kg/h | 150kg/h | 300kg/h | 450kg/h | 600kg/h |
| Candy weight | As per the candy size | ||||
| Depositing Speed | 25～35 n/min | 25-45n/min | |||
| Steam requirement | 80kg/h,
0.4-0.6MPa |
250kg/h,
0.5-0.8MPa |
300kg/h,
0.8-1.2MPa |
400kg/h, 1.2-1.6MPa | 500kg/h, 1.6-1.8MPa |
| Compressed air requirement | 0.2m3/min,
0.4-0.6MPa |
0.2m3/min,0.4-0.6MPa | 0.2m3/min,0.4-0.6MPa | 0.25m3/mi,0.4-0.6MPa | 0.3m3/min,
0.4-0.6MPa |
| Working condition | Temperature 20℃-25℃；Humidity45-55% | ||||
| Electric power needed | 55kw/380V | 65kW/380V | 75kW/380V | 80kW/380V | 85kW/380V |
| Total Length | 8m | 16m | 18m | 18m | 20m |
| Weight of machine | 2500kg | 3500kg | 4000kg | 4500kg | 5000kg |
