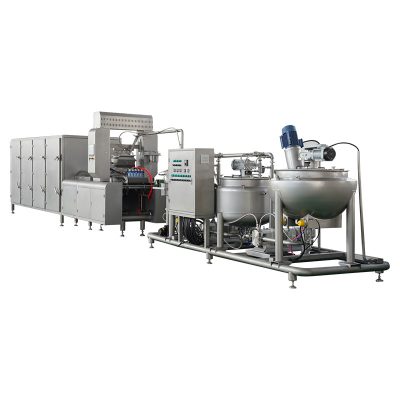

APK-GM300Q Large Scale Gummy Making Machine Pectin Gelatin Gummy Production Line
Allpack APK-GM300Q large scale gummy making machine is Suitable for gummy/vitamin C functional gummy/gummy with special powder ingredient, can replace molds on same machine to produce different shapes, sizes, colors, or center filling gummy. It is the best production line for production of gelatin, pectin, agar, carrageenan based gummy. The depositing machine is made of 304 stainless steel, which is healthy and safe. The operation is simple and convenient. When using the device, be careful not to touch the hopper to prevent burns. The equipment has functions such as oil spray, brush, and air blowing, which helps to better release the candy from the mold.
Allpack APK-GM300Q Large Scale Gummy Making Machine Features:
1. Using famous-brand PLC, the performance is more stable, and the programming automatically controls the vacuum boiling temperature, time, holding temperature and pouring speed.
2. The 10.7-inch large touch screen displays the process flow chart, the working status of each part, the setting and display of parameters such as temperature, pouring speed, etc., making it easier for users to operate and master.
3. Frequency conversion speed control controls the accurate flow of sugar liquid, and the quality of massecuite is stable.
4. The dynamic mixer completes the quantitative filling and mixing of flavors, pigments, and acids online.
5. Conveyor belt, cooling system and double demoulding mechanism ensure demoulding.
6. Various shapes of candies can be produced according to different molds.
7. Replace part of the cooking and equipment and molds. This production line can produce soft candy series.
Allpack APK-GM300Q Large Scale Gummy Making Machine Technical Specification:
| Model | APK-GM80Q | APK-GM150 | APK-GM300 | APK-GM450 | APK-GM600 |
| Capacity | 80 kg/h | 150kg/h | 300kg/h | 450kg/h | 600kg/h |
| Candy weight | As per the candy size | ||||
| Depositing Speed | 25～35 n/min | 25-45n/min | |||
| Steam requirement | 80kg/h,
0.4-0.6MPa |
250kg/h,
0.5-0.8MPa |
300kg/h,
0.8-1.2MPa |
400kg/h, 1.2-1.6MPa | 500kg/h, 1.6-1.8MPa |
| Compressed air requirement | 0.2m3/min,
0.4-0.6MPa |
0.2m3/min,0.4-0.6MPa | 0.2m3/min,0.4-0.6MPa | 0.25m3/mi,0.4-0.6MPa | 0.3m3/min,
0.4-0.6MPa |
| Working condition | Temperature 20℃-25℃；Humidity45-55% | ||||
| Electric power needed | 55kw/380V | 65kW/380V | 75kW/380V | 80kW/380V | 85kW/380V |
| Total Length | 8m | 16m | 18m | 18m | 20m |
| Weight of machine | 2500kg | 3500kg | 4000kg | 4500kg | 5000kg |
