Simple structure in linear type ,easy in installation and maintain.
Adopting advanced world famous brand components in pneumatic,electric, operation parts
High pressure double crank to control the die opening and closing
Tell us your material or budget, we'll reply you ASAP within 24 hours

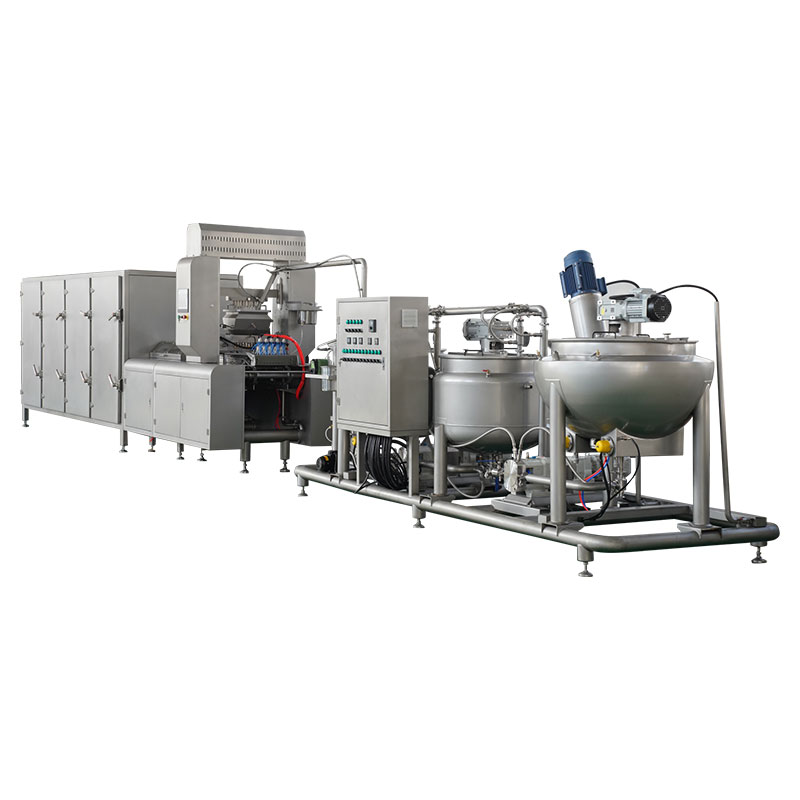

APK-GM150Q Medium Scale Gummy Making Machine High Quality Jelly Candy Depositing Line
Allpack APK-GM150Q medium scale gummy making machine is simple structure in linear type ,easy in installation and maintain. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts, can make pure candy, double color candy, center filling candy and gummy bear candy. This gummy manufacturing manufacturing line mainly consists of Jacket cooker, storage tank,weighing and mixing system,depositor and cooling machine and adopt the advanced servo system to control. It is is not only an ideal equipment which can produce products of good quality ,but also an advantage for the candy manufacturer to pass the GMP,HACCP,QS authentication easily.
Sugar and carrageenan/ gelatin/ pectin dissolving
→ mixing→cooling
→ transporting
→ depositing
→ cooling
→ de-moulding
→drying
→milk coating
→packing
Allpack APK-GM150Q Medium Scale Gummy Making Machine Features:
1.PLC /computer process control available;
2.An LED touch panel for easy operating;
3.The production capacity is 80,150,300kgs/h(based on 4.0g gummy candy ) or more;
4.The contacting food parts are made of hygienic Stainless Steel SUS304
5.Optional (mass) flowing controlled by Frequency inverters ;
6.In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;
7.Dosing pumps for the automatic injection of colors, flavors and acids;
8.One set of extra jam paste injection system for making fruit jam-center filled candies(optional);
9.Use an automatic steam control system instead of the manual steam valve which controls a stable steam pressure supplying to the cooking.
10.Moulds can be made according to the candies samples provided by the customer.
Allpack APK-GM150Q Medium Scale Gummy Making Technical Specification:
| Model | APK-GM80Q | APK-GM150 | APK-GM300 | APK-GM450 | APK-GM600 |
| Capacity | 80 kg/h | 150kg/h | 300kg/h | 450kg/h | 600kg/h |
| Candy weight | As per the candy size | ||||
| Depositing Speed | 25～35 n/min | 25-45n/min | |||
| Steam requirement | 80kg/h,
0.4-0.6MPa |
250kg/h,
0.5-0.8MPa |
300kg/h,
0.8-1.2MPa |
400kg/h, 1.2-1.6MPa | 500kg/h, 1.6-1.8MPa |
| Compressed air requirement | 0.2m3/min,
0.4-0.6MPa |
0.2m3/min,0.4-0.6MPa | 0.2m3/min,0.4-0.6MPa | 0.25m3/mi,0.4-0.6MPa | 0.3m3/min,
0.4-0.6MPa |
| Working condition | Temperature 20℃-25℃；Humidity45-55% | ||||
| Electric power needed | 55kw/380V | 65kW/380V | 75kW/380V | 80kW/380V | 85kW/380V |
| Total Length | 8m | 16m | 18m | 18m | 20m |
| Weight of machine | 2500kg | 3500kg | 4000kg | 4500kg | 5000kg |
