More accurate speed, stable operation
Low energy consumption and high reliability
The head moves up/down automatically
Tell us your material or budget, we'll reply you ASAP within 24 hours

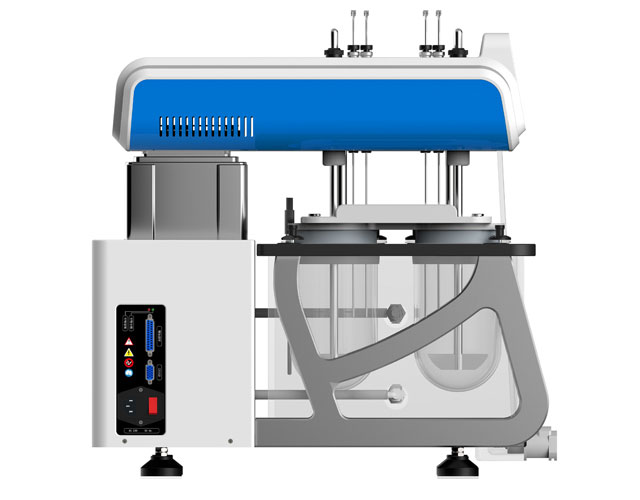

APK-8N Dissolution Tester
Allpack APK-8N dissolution tester strictly follows the current “Chinese Pharmacopoeia” and “United States Pharmacopoeia” specifications and “Guidelines for Mechanical Validation of Drug Dissolution Testers”. It is an 8-channel high-performance drug dissolution test device and fully complies with data integrity specifications.
APK-8N Dissolution Tester Features:
1.Built-in three-level user authority management, audit tracking, and test record management.
2.Test reports can be printed or output to USB through the device interface.
3.Common sample information management for easy access.
4.High-precision real-time constant temperature control, with dual over-temperature protection and temperature calibration functions.
5.Internally equipped with scheduled heating, users can set the system to start heating at a specified time.
6.Manual synchronous dosing function.
7.Dissolution cup and stirrer automatically center.
8.Sealed anti-evaporation cover design effectively reduces medium volatilization.
9.More convenient water circulation pipeline design, professional medical-grade quick connector. Free IQ/OQ certification documents.
10.Optional small cup method accessories.
APK-8N Dissolution Tester Technical Specification:
|
Product model |
APK-8N |
|
Product number |
10100106 |
|
dissolution channel |
8 channels |
|
Stirring paddle swing range |
≤0.5mm |
|
Basket swing range |
≤1.0mm |
|
Deviation of rotary rod and dissolution vessel axis |
≤1.0mm |
|
Speed setting range |
10~300RPM |
|
Steady speed error |
≤±1% |
|
Temperature range |
Room temperature ~45.0C |
|
Temperature resolution |
0.1°C |
|
Temperature control accuracy |
≤±0.3°℃ |
|
Sampling times |
≤100 times |
|
Sampling timing time |
≤999 hours, 59 minutes and 59 seconds |
|
power supply |
AC220V±10% 50Hz |
