Easy operation and stable performance
Micro processor and LCD Display
Water circulating in the bath to keep the temperature conformity with magnetic pump
Tell us your material or budget, we'll reply you ASAP within 24 hours

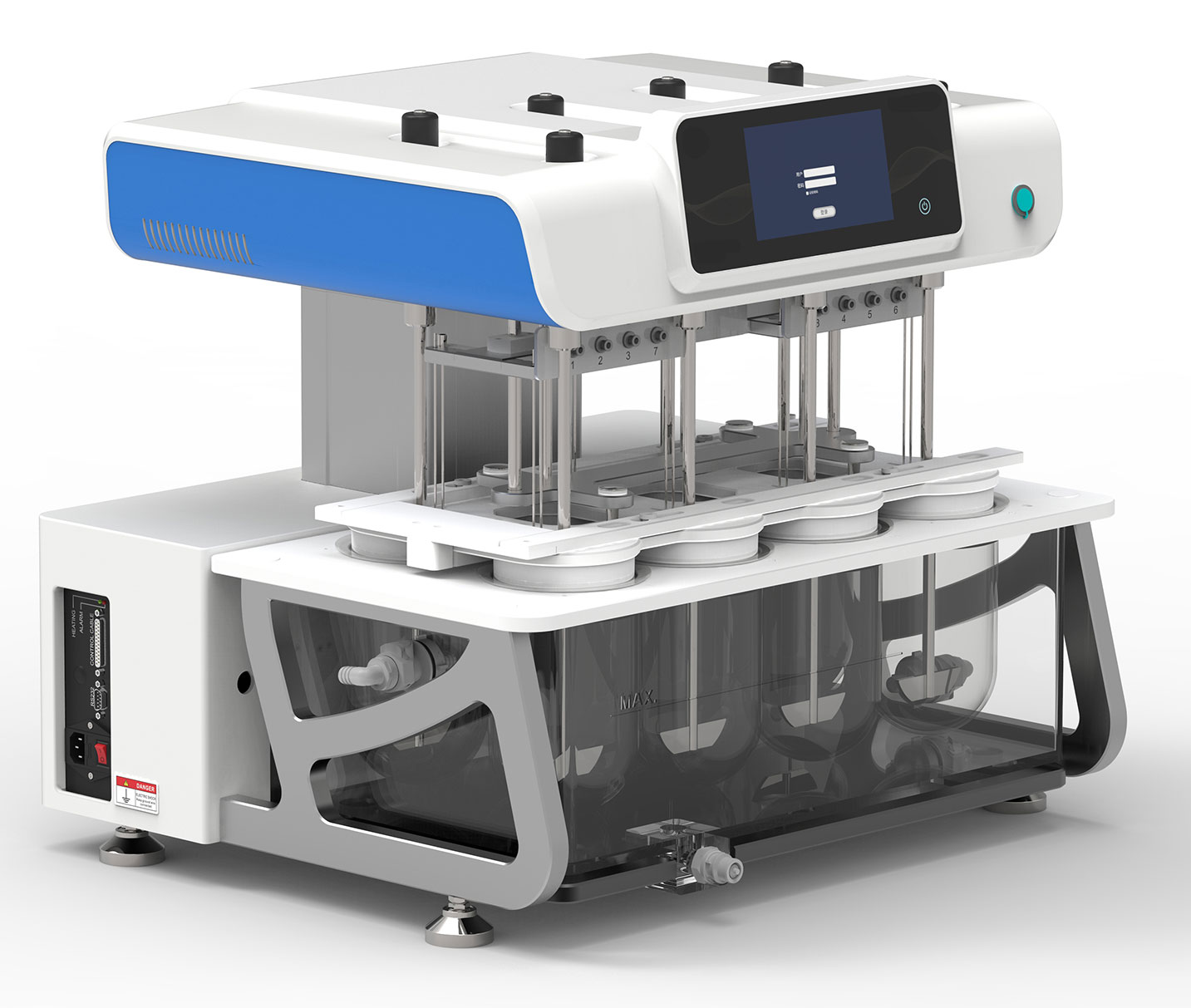

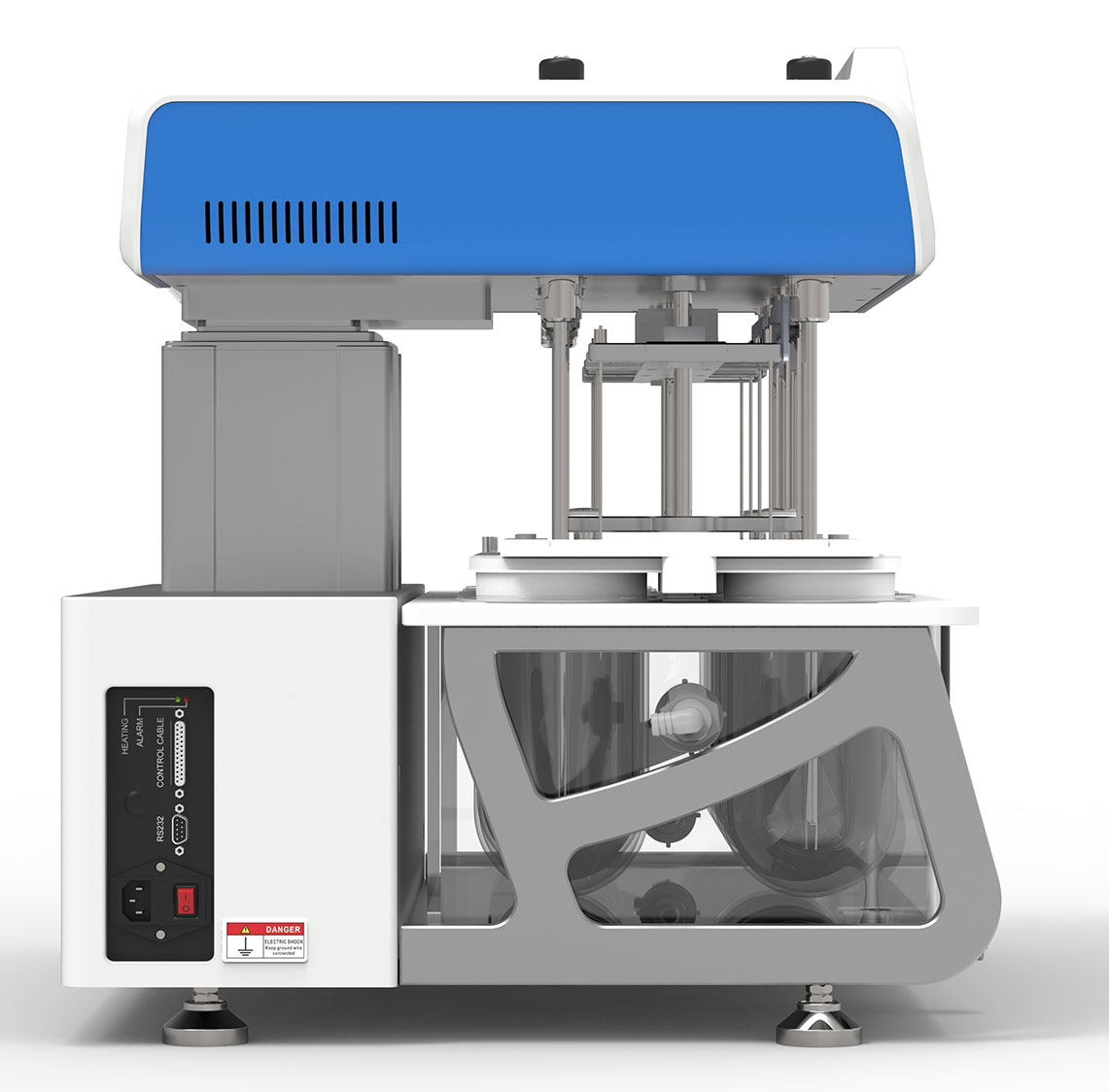

APK-8A Dissolution Tester
Allpack APK-8A dissolution tester strictly follows the current “Chinese Pharmacopoeia” and “United States Pharmacopoeia” specifications and “Guidelines for Mechanical Validation of Drug Dissolution Apparatus”. It is an upgraded and developed 8-channel high-performance drug dissolution test device that fully complies with data integrity specifications. Can be matched with APK-8A sampling system to form a dissolution automatic sampling system.
APK-8A Dissolution Tester Features:
1.Built-in three-level user authority management, audit tracking, and test record management.
2.Test reports can be printed or output to USB through the device interface.
3.Common sample information management for easy retrieval and use.
4.Common test plan management for easy retrieval and use.
5.High-precision real-time constant temperature control, independent temperature measurement for each dissolution cup, with dual over-temperature protection and temperature calibration functions.
6.Internally equipped with scheduled heating, users can set the system to start heating at a specified time.
7.Manual and automatic synchronous dosing function.
8.Manual and automatic sampling dual mode.
9.Split agitator design for quick replacement.
10.Automatic centering of dissolution cup and agitator.
11.Sealed anti-evaporation cover design to effectively reduce medium volatilization.
12.More convenient water circulation pipeline design, professional medical-grade quick connector. Free IQ/0Q certification documents.
APK-8A Dissolution Tester Technical Specification:
|
Product model |
APK-8A |
|
Product number |
10100108 |
|
dissolution channel |
8 channels |
|
Stirring paddle swing range |
≤0.5mm |
|
Basket swing range |
≤1.0mm |
|
Deviation of rotary rod and dissolution vessel axis |
≤1.0mm |
|
Speed setting range |
10~300RPM |
|
Steady speed error |
≤±1% |
|
Temperature range |
Room temperature ~45.0C |
|
Temperature resolution |
0.1°C |
|
Temperature control accuracy |
≤±0.3°℃ |
|
Sampling times |
≤100 times |
|
Sampling timing time |
≤999 hours, 59 minutes and 59 seconds |
|
power supply |
AC220V±10% 50Hz |
