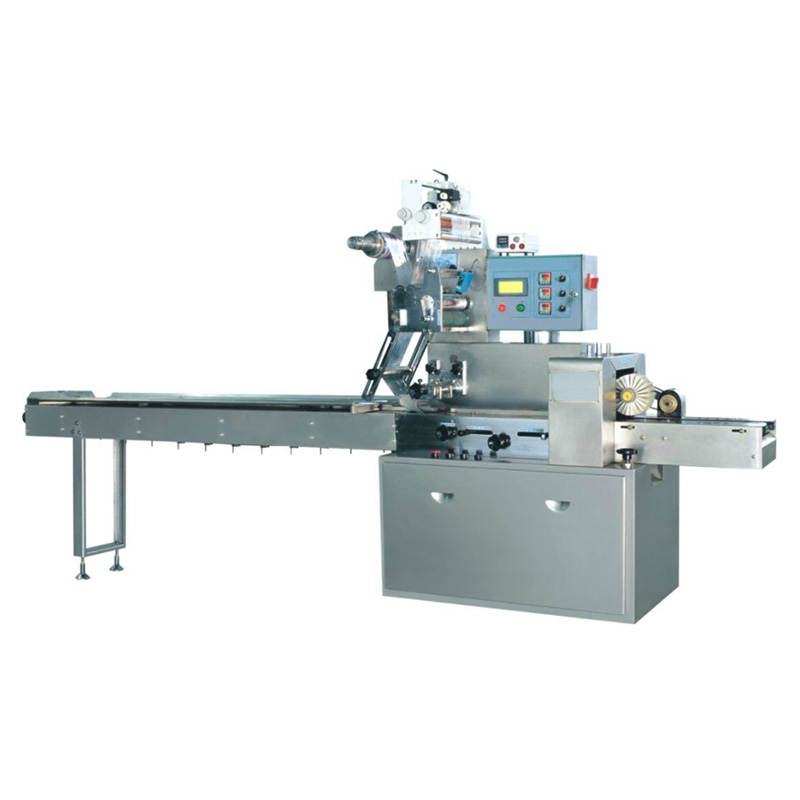

APK-300B High speed full automatic medical products flow wrap machine

Category:

Aipak APK-300B flow wrap machine is suitable for the packaging of biscuits, bread, moon cakes, egg yolk pie, fruit pie, candy, daily necessities, hardware parts, cartons or trays and other solid and regular objects.Controlled by touch screen controller with human-machine interface, the machine is easy to set parameter, works in high speed with high efficiency.Adopt photoelectric tracing technology and digital input to ensure accurate sealing & cutting position.You can set the machine stopping position, that will make no sticking to the knife and no film wasted.

FEATURE:

1.Compact structure, stable function, and simple operation.

2.Double frequency converter controller, length of package will cut immediately once setting, adjustment needless, saving time and film.

3.It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.

4.Self-checking function, trouble can be read easily. High sensor photoelectric color chart tracking, make the cutting position more correctly.

5.Dependant temperature PID controlling suitable for various materials of the packaging membrane.Position stop function, no adhesive and no waste of membrane.

6.Clean the rotation system, more reliable operation, and more convenient maintenance.

7.All the controlling operates by the software, convenience for function adjustment and technical upgrading.

DATA SHEET:

Model APK-300B
Bag size (mm) long*wide*high 65~190mm*30~110mm*5~40mm
Vertical and horizontal sealing strength (Newton/mm ²) > 15 n/mm squared
Packing speed (bags/min) 30~150Bags/min
Packaging film width (mm) 80~300mm
The power supply specifications 220V 50/60Hz 2.4KVA
Machine weight (kg) 800kg
Overall dimensions (length × width × height) 3780×640×1560mm
