Introduction:

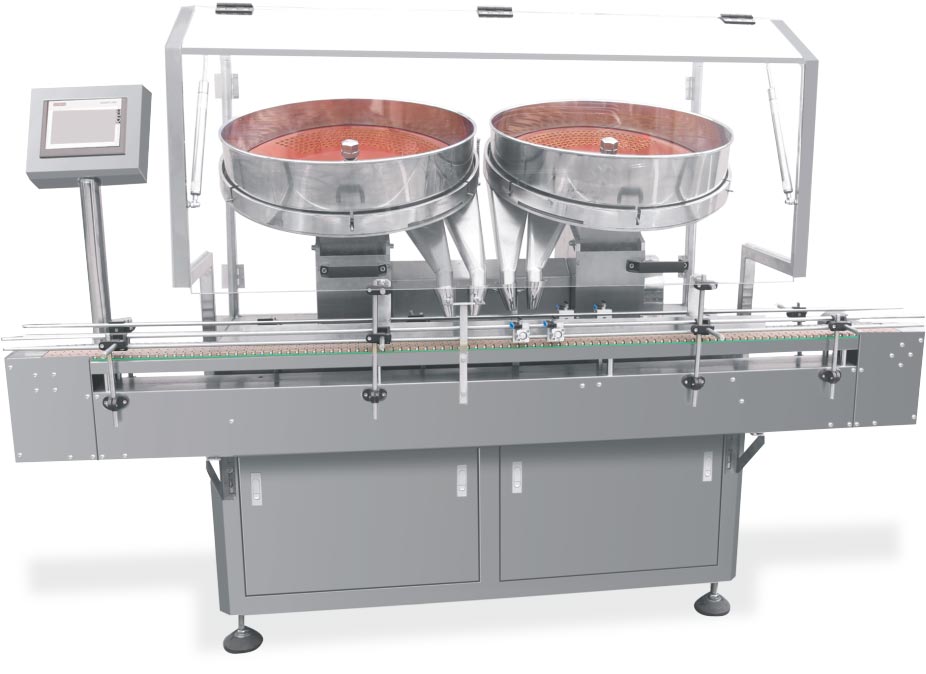

Template Counting Machine sorts and counts grains through several templates, then spins medicines to let them enter filling channel for bottling.
Feature:
- Strong compatibility,Template Counting machine can count and bottle various kind of solid preparation or solid granules for example , tablet (including heteromorphism tablet),capsule,soft capsule( transparent and non-transparent),pill etc.
- Vibration cutting: 12 channel vibration under homogeneous materials, unique patent agencies blanking,turning out material is steady, no damage.
- Anti high dust :Adopting the anti high dust photoelectric sensing technology only developed by our company ,Template Counting machine also can work stably under the high dust circumstance.
- Correct counting :With automatic photoelectric sensor counting ,the error of bottling is less than nation standard.
- Special structure of the discharge spout, can prevent blocking drugs, small bottle can fast bottling (optional) .
- High intelligence :It has various alarm and control functions like no bottle no count, check fault automatically and so on.
- High intelligence :Template Counting machine has various alarm and control functions like no bottle no count,check fault automatically and so on.
- Easy operation :Adopting intellectualized design, all kinds of operation data can be set according to the requirement .It can store 10 groups of setting parameters for use.
- Convenient maintenance :After simple training, the worker can operate easily.It is easy to disassembly,clean and change the components without any tools.
- Sealing and dustproof :Dust collection box is available, it can reduce the dust pollution.
Specification:
Applicable bottle shape :round,square plastic bottle
Filling material: Φ0~5#capsule,soft capsule,Φ5.5~12compressed tablet,special-shaped tablet,sugarcoated tablet,Φ3~12pill
Production capacity:20~40 bottles per minute(It depends on the bottle size,filling quantity and the tablet size)
Setting range of bottling volume:1—9999
Power supply:AC220V 50Hz 0.8kw
Accuracy rate:>99.5%(higher than the industrial standard )
Air pressure:0.6Mpa
Overall dimension:1450×900×1450mm
Weight:420kg
Configuration
| NO | Name | Manufacturer |
| 1 | Moto | TQG(Taiwan) |
| 2 | See bottle of photoelectric sensor | OMRON |
| 3 | Count the Photoelectric Head | Adopt Everlight Electronics., Ltd |
| 4 | Pneumatic Components | SMC |
| 5 | Switch button | French schneider |
| 6 | man-machine interface | Adopt Delta-China(Siemens) |
| 7 | Main control chip | Using imported STMicroelectronics co., LTD |
| 8 | The leakage switch | Germany’s Siemen |
| 9 | Switching power suppy | French schneider |
