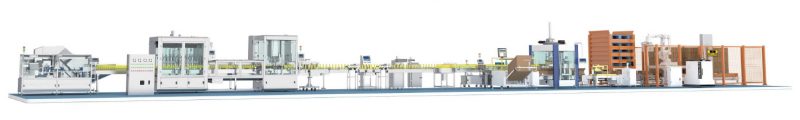

Allpack 50-1000ML Pesticide Filling Machine Standard Automatic Liquid Filling Line

Allpack pesticide filling machine standard automatic liquid filling line is used for different liquid products packaging from 50-1000ml. This standard automatic liquid filling line is made of a bottle unscrambler, pesticide filling machine, capping machine, weight checking machine, induction sealing machine, inkjet printer, buffering machine, labeling machine, carton erecting machine, carton packing machine, carton sealing&strapping machine and robot palletizing machine.

The automatic liquid filling line is designed and manufactured in accordance with the latest veterinary drug GMP standards. It is widely used for automatic filling from 50-1000ml in agrochemical, chemical, fertilizer, personal care products, oil, and other related industries.

The whole pesticide filling machine is of in-line structure, driven by a servo motor and volume metering filling principle, which realizes high precision of filling dosage. It adopts PLC control, human-machine interface, and the whole machine is easy to operate. The whole machine adopts arc frame, which is beautiful and generous. High precision electronic scale automatic weighing data transmission system is selected to make dose adjustment more convenient and quick.

Allpack 50-1000ML Pesticide Filling Machine Features:

1.Servo motor drives the piston cylinder, filling accuracy is high, filling speed is fast, filling performance is steady, is especially suitable for filling of viscous liquid.

2.SUS304 piston cylinders are customized based on different capacities.

3.PLC programmable control system, one button to adjust the filling amount, one button to calibrate the filling amount, the operation is quite simple.

4.SUS304 material receiving plates to avoid the liquid to drip, the liquid doesn't remain on the bottle mouth or on the bottle body.

5.The filling valves adopt SUS304 or SUS3016L, they are very clean and can meet characteristics of multiple materials.

6.This machine is widely used for round bottle, square bottle, flat bottle and many kinds of special-shaped bottles.

Allpack 50-1000ML Pesticide Filling Machine Technical Specification:

LP-200E Automatic Bottle Unscrambler

1.Applicable Bottle Size:φ40-95mm, H: 80-230mm

2.Speed: ≤10000 Bottles/hour (100ml)

3.External Dimension: 3550*2008*1800mm (L*W*H)



CCG1000-16TJ Piston Filling Machine

1.Applicable Bottle Size: Round Bottle :φ 40-95mm, H: 80-230mm

2.Flat/Square Bottle:L: 40-95mm, W: 40-95mm, H: 80-230mm

3.Capacity: ≤6000BPH (100ml)

4.Filling Precision: ±1g (100ml), ±3g (200-1000ml)

5.External Dimension: 2435*1125*2480mm (L*W*H)



FX-6AS Rotary Capping Machine

1.Applicable Bottle Size: φ 40-95mm, H: 80-250mm

2.Capacity: ≤6000BPH (100ml)

3.Cap Size: φ25-60mm, Cap Height: 20-40mm

4.External Dimension: 2000*1300*2300mm (L*W*H)



TN-150 Self Adhesive Labeling Machine

1.Applicable Bottle:φ 35-95mm

2.Capacity: ≤7000 Bottles/hour (100ml)

3.Labeling Precision: ±1mm

4.External Dimension: 2435*1000*1400mm (L*W*H)



KZ-1D Carton Packing Machine

1.Applicable Bottle SIze:φ 40-95mm, H: 80-230mm

2.Capacity: 4-8 cartons/min

3.Carton Size: L: 280-500mm, W: 200-400mm, H: 100-300mm

4.External Dimension: 2240*2250*2780mm (L*W*H)



ABB Mechnical Arm Palletizing Machine

1.Loading Weight: 110Kg

2.Positioning Precision: 0.1mm

3.Reaching Distance: 2.4m

4.Base Size: 1136*850*320mm
