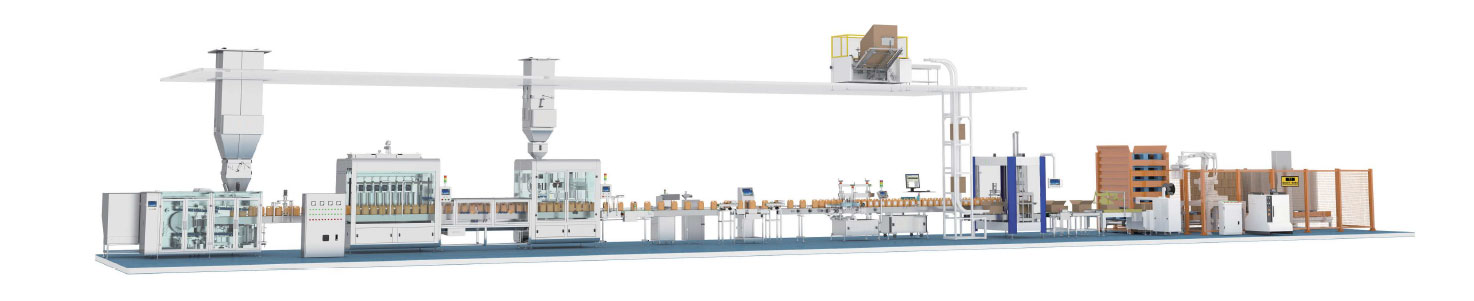

Allpack 1-5L Bullet Train Daily Chemical Shampoo Filling Machine Automatic Shampoo Filling Line

Allpack 1-5L Daily Chemical Shampoo Filling Machine Features:

1. Equipped with PLC and intelligent man-machine interface, touch screen for your simple operation.

2. Self-diagnosis of fault alarm is clear at a glance.

3. The center-feeding die head completely eliminates the shampoo bottle confluence line, and it is convenient and quick to change the material and color.

4. The moving mold adopts double linear guide rails and center clamping. The force is evenly applied to ensure a smooth cut of the shampoo bottles.

5. The hydraulic system adopts proportional hydraulic control and is equipped with imported hydraulic components, which makes the shampoo filling accurate, stable, and energy-saving.

6. The high-speed, high-efficiency, low-energy plasticizing system of the automatic blow molding machine, with excellent mixing uniformity, ensures the purity of the shampoo.

Allpack 1-5L Daily Chemical Shampoo Filling Machine Technical Specification:

LP-D70 Automatic Bottle Unscrambler

1. Applicable Bottle Size: L: 120-230mm, W: 70-120mm, H:250-350mm

2. Speed: ≤3000 Bottles/hour (5L)

3. External Dimension: 3300*2310*1950mm (L*W*H)

CCG5000-8TS Piston Filling Machine

1. Applicable Bottle Size: Round Bottle: φ80-140mm, H: 140-340mm

Flat/Square Bottle: L: 80-200mm, W: 80-140mm, H: 230-340mm

2. Capacity: 800 BPH (5L)

3. Filling Precision: ±5g (1L), ±8g (5L)

4. External Dimension: 2365*1600*2750mm (L*W*H)

FXG-1H Follow Type Capping Machine

1. Applicable Bottle Size: Min: 140*60*180mm, Max: 260*145*330mm

2. Capacity: 2500BPH (1000ml)

3. Cap Size: φ25-60mm, Cap Height: 20-40mm

4. External Dimension: 2000*1450*2400mm (L*W*H)

TS-150B Self Adhesive Labeling Machine

1. Label Size: L: 20-260mm, Max Height: 140mm (Round Bottle)

L: 20-150mm, H: 20-160mm (Flat/Square Bottles)

2. Capacity: ≤2400 Bottles/hour

3. Labeling Precision: ±1mm

4. External Dimension: 3000*1500*1850mm (L*W*H)

KZ-1D Carton Packing Machine

1. Applicable Bottle Size:φ 40-95mm, Height: 80-230mm

2. Capacity: 4-8 cartons/min

3. Carton Size: L: 280-500mm, W: 200-400mm, H: 100-300mm

4. External Dimension: 2240*2250*2780mm (L*W*H)

ABB Mechanical Arm Palletizing Machine

1. Loading Weight: 110Kg

2. Positioning Precision: 0.1mm

3. Reaching Distance: 2.4m

4. Base Size: 1136*850*320mm
