Compact size and movable for limited space
With HMI and PLC control system for easy parameter setting
Simple basic structure,easy for daily maintenance
Tell us your material or budget, we'll reply you ASAP within 24 hours

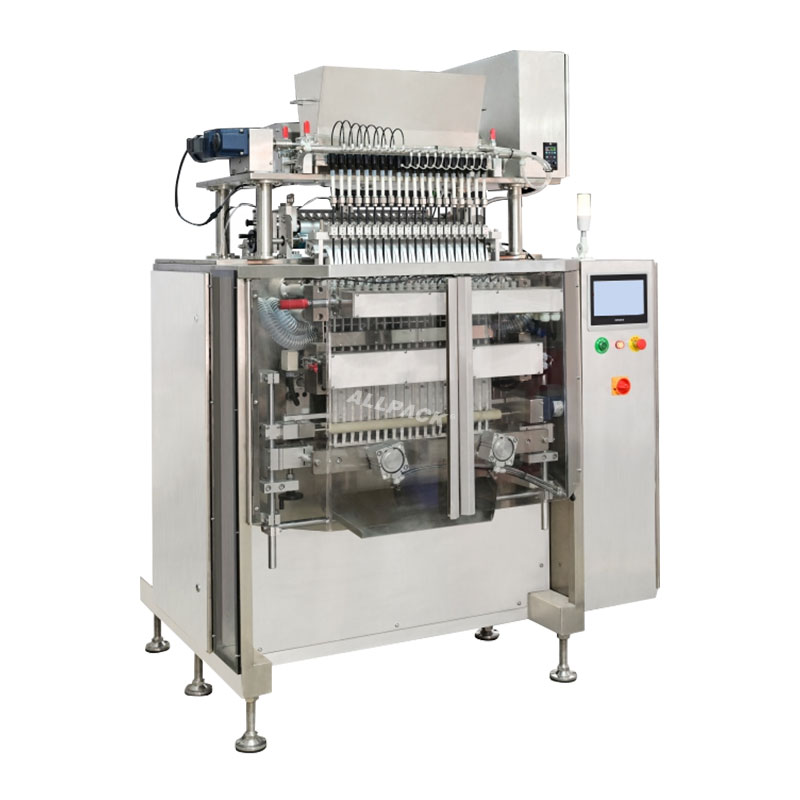

20-lanes Heat-seal Dry/Moist Packing Machine Snus Packing Machine
ALLPACK 20-lanes snus packing machineĀ is equipped with a microcomputer control system with english dispaly and a smart temperature controller to ensure beautiful and smooth seal. The machine can automatically complete such discontinuous operations as measuring,filling,bag marking,counting,printing etc. Lower consumption,high efficiency, safety and cleanness,it’s an ideal equipment which can be used for packing wheat flour,paper powder,yeast powder,instant powder,spices,cocoa powder etc.
20-lanes Heat-seal Dry/Moist Packing Machine Snus Packing Machine Features:
1.The outer sealing paper is controlled by stepping motor, the bag length is stable and the positioning is accurate;
2..Adopt PID temperature controller to control the temperature more accurately;
3.PLC is used to control the movement of the whole machine, man-machine interface display, easy to operate;
4.All accessible materials are made of SUS304 stainless steel to ensure the hygiene and reliability of products;
5.Some working cylinders adopt original imported parts to ensure the accuracy and stability of their work;
6.The additional device of this machine can complete the functions of flat cutting, date printing, easy tearing etc.
7.Ultrasonic and thermal sealing form can achieve linear incision, save the filling space inside the mounting ear, and reach 12g packaging capacity;
8.Ultrasonic sealing is suitable for all non-woven packaging materials cutting, cutting success rate is close to 100%;
9.The equipment can be equipped with nitrogen filling device, date printing device and stirring device, etc.
20-lanes Heat-seal Dry/Moist Packing Machine Snus Packing Machine Technical Specification:
| Hostname:20-lane Heat-seal Dry Packing Machine | 20-lane Heat-seal Moist Packing Machine |
| ApplicableĀ material:DryĀ granule | Wet granule |
| MeasuringĀ method:Dry:HorizontalĀ screwĀ stem Moisturelevel:3-10% | Wet:Rotary measuring cup |
| 25%-40% | |
| PackagingĀ weight:0.4-0.6g | 0.4-0.6g |
| Speed:30-45cuts/min | 35-45cuts/min |
| Bag style:Back sealpouch,inner and outer sealing | |
| WebĀ width:600mm | |
| Pouch size:Pouch width 13*pouch length 20-50mm | |
| Verticalseal:4mm,without vein | |
| HorizontalĀ Ā seal:4mm,without vein | |
| PouchĀ pullingĀ method:Heat-sealedĀ bag,support servoĀ motor drives synchronousĀ belt,horizontalĀ bag sealingand clampingreciprocatingup and down | |
| Cutting Style:Flat cut(Die cut device) | |
| Air pressure and Consumption:0.6-0.8Mpa,2.5-3mĀ³/min | |
| Power:220V/50Hz,3.5Kw | |
