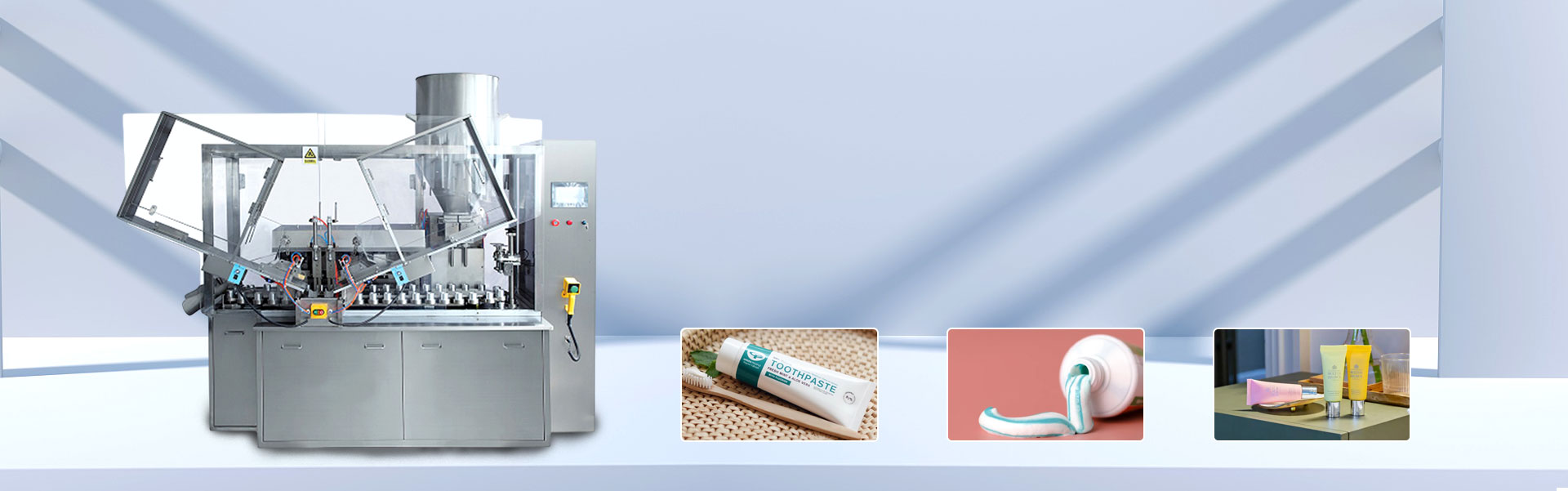

Tube Filling Machine

1.What Is A Tube Filling Machine?

A tube filling machine is a specialized piece of automated equipment used to fill tubes with products such as ointments, creams, and pastes efficiently and precisely. The tube filler operates by feeding empty tubes into the machine, which is automatically filled with product and then sealed at both ends.

Depending on the type of tube filling machine, these machines may offer options for tube decoration, coding, and capping. Tube fillers are widely used in the pharmaceutical, cosmetic, and food industries due to their high accuracy and speed of operation. Moreover, they are a cost effective solution for filling tubes with precision while consistently providing quality products.

Tube fillers come in various sizes and models to suit the needs of different businesses, from manually operated tube fillers to fully automated tube filling machines. With a tube filler machine, companies can achieve faster production times, greater accuracy, and more consistent product quality.

2.What Are The Components Of A Tube Filling Machine?

These are the main components of a tube filling machine;

Tube Hopper

This is the tube storage area where tube cartridges are placed and supplied to the tube filling machine when needed.

Feeder

The tube feeding device, which can be mechanical or manual, supplies tubes one by one to the next stage of the tube filling process.

Filling Chamber

The tube-filling chamber houses two plates that move up and down to “close” off each tube as it is filled with product.

Filler Nozzle(s)

The nozzle used to fill each tube with a product depends on size and shape. Fillers come in various sizes, shapes, and materials (plastic and metal).

Sealing Device

The tube-sealer is used to close off the tube after filling it with the product. This can be a roller, heat, or impulse sealer and comes in different sizes depending on tube size.

Trim Cutter/Crimper

The trim cutter is used to cut off excess tube material around the top of the tube once it has been sealed. A crimper is then used to press down the edges and create a tight seal between the tube and lid.

Accumulator Table

Also known as an exit conveyor, this device collects all of the filled tubes before they are discharged from the tube filling machine. It helps control tube flow, ensuring that only filled tubes are discharged.

Control Panel

Most tube filling machines have an easy-to-use control panel that allows the operator to adjust tube speed, size, and filler settings from a single location. This helps to quickly make changes without having to change multiple components simultaneously.

Vision System

Some tube filling machines have a vision system that inspects each tube for defects before it is sealed. This helps eliminate faulty seals or product contamination inside the tube that could harm consumers.

Safety Guards

Lastly, safety guards are installed around certain areas of the tube filling machine to prevent you from coming into contact with moving parts or dangerous fluids during operation. This important safety measure must be adhered to in tube filling applications.

3.What Are The Advantages Of A Tube Filling Machine?

Safety features

Tube-filling machines often come equipped with built in safety features that can help protect you from common hazards associated with tube filling processes, such as skin irritation caused by prolonged contact with chemicals.

Accuracy

Tube filling machines generally provide higher accuracy than manual methods, resulting in fewer rejections due to incorrect measurements.

Increased Efficiency

Tube-filling machines are designed to fill tubes quickly and accurately, with the ability to produce up to 300 tubes a minute. This allows you to meet deadlines and increase production without requiring additional workforce or resources.

Flexibility

Tube fillers can be programmed to handle different tube sizes and volumes quickly and easily, providing flexibility in terms of product range.

Durability

Tube fillers offer excellent value for your money. These machines typically have a longer lifespan than manual tube filling techniques and require minimal maintenance to keep them running smoothly. This means you can enjoy increased productivity without the need for frequent replacement or costly repairs

Reduced Costs

Automated tube-filling machines can reduce labor costs associated with manual tube-filling processes by eliminating the need for extra personnel and increasing overall productivity.

4.What Are The Applications Of A Tube Filling Machine?

Tube filling machines are used in a range of industries. They include:

Pharmaceutical Industry

Tube filling machines are essential as they efficiently fill ointments, creams, gels, or pastes into tubes. The accuracy of these machines helps you ensure that each tube contains an exact dosage while eliminating waste due to overfilling or mess associated with manual handling.

Cosmetic Industry

Cosmetic products such as lotions and creams also require precise filling operations making tube filling machines a great asset in this sector.

Food and Beverage

Tube filling machines are also great for food and beverage production, allowing for quick and hygienic tube filling of sauces, syrups, pastes, jellies, and jams.

5.What Are The Working Principles Of A Tube Filling Machine?

The tube filling machine loads empty tubes onto the spindles that feed into the hopper. This hopper feeds tube material into the tube, filled with either a pre-measured dose or weighed on an onboard scale.

Once filled, the tube is sealed using heated rollers and cutters to form a tight seal. A tube printing attachment can also be added to include product branding and ingredient information on each tube before sealing. Finally, after being sealed, the finished tube is ejected from the machine for further processing.

6.What Are The Different Types Of Tube Filling Machines Available On The Market?

a) Automatic Tube Filling Machines

Automatic tube fillers are designed for large-scale production lines and high speed operations. They feature advanced control systems that allow precise control over the machine’s settings to ensure accurate filling with minimal wastage.

Additionally, automatic tube fillers typically have multiple stations for loading, sealing, cutting, labeling, and inspecting tubes before moving on to the next station. These machines can also handle a wide range of tube sizes and shapes

b) Semi-Automatic Tube Filling Machines

Semi-automatic tube fillers are designed for smaller scale production lines where speed is not as important as accuracy. Also, semi-automatic tube filling machines typically feature a single station with adjustable settings for the tube’s size and shape, allowing for more precision in tube filling operations.

Generally, these type of machines have fewer stations than their automatic counterparts but can still provide high-quality tube filling results.

c)Rotary Tube Filling Machine

This type of tube filling machine is suitable for high speed production lines, as it can load and unload multiple tubes at once. The rotary tube filling machine includes a rotating tube holder that holds several tubes for simultaneous loading, filling and sealing operations.

7.What Is The Difference Between Fully Automatic And Semi-Automatic Tube Filling Machines?

a)Fully Automatic Tube Filling Machines?

Fully automatic tube filling machines are designed to operate without human intervention and complete a tube-filling process from start to finish with minimal manual input.

This type of tube filling machine is typically used in large scale production operations, as it can fill large numbers of tubes quickly and accurately. Fully automatic tube filling machines take care of tube loading, sealing, and product discharge independently, with little or no human assistance required.

Components

Fully automatic tube filling machines have several components that work together to produce a finished product. The main components of an automatic tube filling machine include the following:

• A set of pumps and valves – these are used to transfer materials into the tubes, which are then sealed by the machine.
• Sealing heads are responsible for sealing the opening at each tube end using heat or pressure-sensitive seals.
• Automatic fillers allow precise control over how much material is poured into each tube. Automatic fillers also help reduce waste and ensure consistent results every time.
• Control systems include computers, sensors, and other devices that control the machine’s operation. Automatic tube filling machines typically have a user interface that allows you to customize settings and monitor the machine’s performance.
• Automatic shut-off systems prevent spills, overfilling, or other potential hazards. Automatic shut-off systems stop the material flow into each tube when it reaches a certain level. These systems also reduce waste and help maintain consistent results every time.

Working Principle

Automatic tube filling machines work by using a variety of stations that fill, seal, and package products in tubes. The process usually starts with a hopper that stores the product, which is then fed into the machine by an auger or gravity feed system.

The product is then portioned out accurately into each tube and is pushed down to the end, where heat-sealing or ultrasonic sealing methods seal it. After the tube is filled and sealed, labels can be applied automatically before being cut off from the reel and sent through another station for packaging.

Application

Automatic tube filling machines are used in various industries to fill tubes with products ranging from food and beverages, pharmaceuticals, and cosmetics to sealants, adhesives, and gels. The automatic nature of the process ensures a fast and reliable operation that maximizes output while minimizing waste.

b)Semi-Automatic Tube Filling Machines

Semi-automatic tube filling machines require more hands-on involvement than fully automatic tube filling machines, as human operators must assist in some stages of the tube-filling process. These machines are primarily used for short runs that require accurate control over the tube-filling process but don’t lend themselves to full automation.

Semi-automatic tube filling machines enable operators to load tubes manually, adjust tube positions, and start tube sealing processes before product discharge is completed. This tube filling machine balances cost and accuracy for short runs where manual input may be necessary.

Component

A semi-automatic tube filling machine consists of several components: A loading station, an alignment mechanism, a filling head, and a sealing system. The loading station is responsible for feeding the tubes into the machine orderly. The alignment mechanism ensures that the tubes are precisely aligned before moving to the next production stage.

The filling head is used to fill each tube with the desired material and then dispense it accurately into the tube. Finally, the sealing system seals off each filled tube to safely store or transport it to its intended destination.

In addition to its core components, semi-automatic tube filling machines may also have features such as a counting mechanism or a labeling system. The counting mechanism ensures that the exact number of tubes are filled for each batch. In contrast, the labeling system can apply specific product information or promotional graphics to each tube.

Working principles

The semi-automatic tube filling machine works by using a rotating disk to fill the tubes with the desired product. The disk is typically filled with several different hoppers containing the product, and each hopper has its nozzle that dispenses the material into the tube.

After all the hoppers are filled, they are rotated in sequence to ensure an even product distribution into each tube. As the disk rotates, a vacuum mechanism pulls air out of each tube as it’s filled, creating an airtight seal on top of the product. Once completed, a tamper ensures that all tubes are securely sealed.

Applications

Common applications for semi-automatic tube filling machines include cosmetics and personal care items such as toothpaste and lotions; food items such as sauces, condiments, and honey; medical supplies including adhesives and ointments; industrial products such as adhesives or lubricants; and pharmaceuticals.

8.What Materials Can Be Used To Make Tube Filling Machines?

The following  materials are commonly used in tube filling machines because of their unique properties and effects on tube filling processes.

Stainless Steel

Stainless steel is a popular choice as a tube filling machine material because of its corrosion-resistant properties, durability, and relatively low cost. This metal is also lightweight, making it easier to move the tube filling machine around whenever necessary.

Aluminum

Aluminum is another common choice for tube filling machines due to its strength and durability. It is also lightweight, making it easy to transport the tube filling machine from one place to another. Additionally, aluminum can be shaped into specific designs that allow for efficient tube filling process.

Plastic

Plastic is an affordable tube filling machine material choice due to its low cost and light weight. It is also resistant to corrosion and can be molded into specific shapes for tube filling processes.

Copper

Copper is a tube filling machine material that is favored due to its superior strength and durability. Additionally, copper has excellent conductive properties and does not corrode easily making it an ideal tube filling machine material choice.

9.What Products Can Be Filled In Tubes Using A Tube Filling Machine?

A tube filling machine is a versatile piece of equipment that can fill various products into tubes of different sizes and shapes. Some common products that can be filled using a tube filling machine include:

Creams

These products are typically filled in cylindrical aluminum or plastic tubes, which are then capped by the tube filler before being sealed. The tube-filling process ensures that these products have an airtight seal to prolong their shelf life.

Pastes

Pastes are often packaged in flexible squeeze tube containers that require an airtight seal for maximum product integrity. A tube filling machine will ensure the correct product is dispensed into the tube before sealing it.

Adhesives

Many tube filling machines can fill hot melt and cold glue adhesives into tubes with precision

and accuracy. These adhesives require even dispensing to ensure a strong bond when used in the application.

Gels

A tube filling machine is a perfect solution for packaging pharmaceutical products such as gels because it can precisely control the amount of product being dispensed into the tube.

10.What Safety Measures Should Be Taken While Working With A Tube Filling Machine?

The tube filling machine is an important piece of equipment that must be operated with the utmost caution to ensure the safety of users and other employees in the vicinity. You must know the potential risks of tube filling machines, including their moving parts and sharp edges. Certain safety measures should be taken when working with tube filling machines.

Wear Proper Protective Clothing

When operating tube filling machines, it is important you always wear the correct protective clothing and equipment such as safety glasses, gloves, and safety shoes.

Keep Work Area Clean

Keep the work area clean and free of debris. This will help reduce the risk of slips, trips, and falls.

Read Operating Instructions Carefully

Before operating a tube filling machine, it is important to carefully read and understand the manufacturer’s instructions and safety information.

Check Machine for Damage

Before starting a tube filling machine, check the machine for any visible signs of damage and wear that may have occurred during shipping or handling.

Clear Work Area of Obstructions

Remove any items, such as tools and other materials, that could get in the way while operating tube filling machines.

Keep Children Away from Machines

Ensure children are not around tube filling machines to prevent them from being injured by moving parts or hot surfaces.

Ensure Proper Ventilation

Ensure tube filling machine operators are provided with proper ventilation to prevent inhaling dangerous gases or fumes.

Avoid Overloading Machine

It is important to never overload tube filling machines beyond their capacity as this could cause injury or damage to the machine.

Shut Down Machine Before Cleaning

Always shut down tube filling machines before cleaning them to reduce the risk of injury

Monitor Machine for Proper Functioning

Monitor tube filling machines for any malfunction or damage and contact a professional if needed.

11.What Are The Common Challenges Associated With Tube Filling Machines, And How Can They Be Overcome?

Tube filling machines are a valuable tool for many businesses in the food, cosmetic, pharmaceutical, and other industries. However, their use comes with certain challenges.

Common tube filling machine challenges include:

Poor Tube Quality

Tube filling machines are incredibly sensitive and require a high level of tube quality to achieve optimal results. Poor tube quality can lead to inaccurate fill levels and poor seals, resulting in product wastage and potential contamination.

Solution

It is necessary to use high quality tube holders that have been accurately calibrated to ensure proper tube alignment.

Inadequate Cleaning.

If the tube filling machine isn’t cleaned properly, it can lead to contamination of the product and cause serious health risks.

Solution

Tube filling machines must be regularly cleaned to ensure that the tube-filling process is hygienic and in compliance with industry standards.

Variable tube sizes

Variations in tube size can cause problems with tube filling, such as inaccurate fill levels and poor seals.

Solution

To achieve accuracy and efficiency, tube filling machines must accommodate various tube sizes.

Inaccurate Fill Levels

If the tube isn’t filled correctly, it can result in product wastage or contamination.

Solution

Tube filling machines require precise timing and pressure to achieve proper fill levels

Poor Tube Seals

Tube sealing is a critical component of tube filling machines, ensuring that the product stays fresh and uncontaminated. Poor tube seals can lead to product contamination and increase the risk of spoilage.

Solution

A consistent sealing process should be implemented to ensure tube integrity. Finally, proper tube filling systems must be utilized to ensure accurate and repeatable results.

12.What Are The Maintenance Procedures Of A Tube Filling Machine?

To ensure your tube filling machine is running effectively and efficiently, it’s important to implement regular maintenance procedures. This will help you ensure the tube filling process runs smoothly and prevent any problems from occurring.

Typical maintenance procedures for tube filling machines include:

Cleaning

Ensure the tube-filling machine is cleaned daily to remove any debris or residue accumulated on its surfaces. Also, you should ensure all machine components are wiped down with an appropriate cleaning solution before use.

Inspection

Check the tube-filling machine periodically to ensure all parts are functioning properly and that there are no signs of damage or wear and tear. Replace worn-out parts promptly to avoid costly repairs down the line.

Lubrication

Ensure the tube-filling machine’s moving parts are adequately lubricated. This will help you to reduce friction and prevent wear and tear of components.

Calibration

It’s important to calibrate the tube-filling machine regularly to ensure accurate readings from its sensors and meters. Doing this regularly can help you maintain high production rates while avoiding costly mistakes.

Maintenance Log

Keep a detailed log of tube-filling machine maintenance, including dates, parts replaced, and any other information that may be useful in the future. This can help you keep track of issues as they arise and ensure your tube-filling machine is operating optimally.

Adjustment

Periodically adjust the tube-filling machine’s settings to ensure it is producing accurate results. Make sure all components are correctly aligned and adjusted for optimal performance.

Troubleshooting

Be prepared to troubleshoot any problems that arise with the tube-filling machine. Use an appropriate procedure manual or consult with a professional if necessary.

Upgrades

Consider upgrading older tube-filling machines with new technology or parts to keep up with changing production needs.

Testing

Test the tube-filling machine after any repairs, replacements, or adjustments have been made to ensure it is running correctly.

Compliance

Make sure the tube-filling machine complies with all safety regulations and standards that may apply. This can help you avoid costly fines and penalties.

13.What Factors Should Be Considered Before Purchasing A Tube Filling Machine?

Cost

When you are selecting a tube filling machine, it is important to consider the cost of purchase and operation. Factors such as the size of the tube being filled, speed requirements, and complexity of tube feeders and tube sealers will all affect the overall cost of a tube filling machine.

Size of Tubes

The type and size of the tube that will be filled with the product must be considered to select an appropriate tube filling machine. Different machines are designed to accommodate various tube sizes, so ensure that you select a model suitable for your needs.

Speed Requirements

As tube-filling machines vary greatly in speed, it is important to determine what speeds are needed to ensure optimal production. The complexity of tube feeders, may be simple or complex depending on the application.

Simple tube feeders can use gravity to move products and are most suitable for products with low viscosity; however, more complex tube feeders may require additional components such as motors, pumps, and valves to ensure accurate filling.

Tube Sealer

Different tube sealers may be needed depending on the type of product being filled. A heat sealer is typically used for high-viscosity products, whereas a mechanical press might be necessary for lower viscosity products.

Product Waste

The amount of product waste generated by the tube filling machine should be considered when selecting a tube filling machine.

Cleaning Requirements

The tube filling machine should be easily cleaned to prevent cross-contamination and reduce the risk of product spoilage.

Maintenance Requirements

Different tube filling machines may require varying maintenance levels to ensure optimal performance over time.

Quality Assurance Testing – Quality assurance testing must be conducted regularly on tube-filling machines to ensure that products are being accurately filled and sealed before shipping or use by customers

14.Why Choose Allpack For Your Tube Filling Machine?

Allpack is a renowned tube filling machine supplier in China, offering superior tube filling machines designed to meet your production line’s needs. The following are some of the reasons as to why you should choose Allpack for your tube filling machine:

• With our tube filling machines, you can maximize efficiency and accuracy while minimizing costs.
• Our tube fillers are easy to use and operate, with initiative control panels for quick setting changes and adjustments.
• We also offer advanced features like volumetric or weight based dosing systems, automatic tube loading functions, batch-size selection settings, and rapid yet accurate speed adjustment capabilities.
• Allpack tube filling machines are built with quality components that are durable and reliable.
• Our engineers have years of experience creating tube filler designs tailored to specific requirements, such as high output rates, precision measurements, and complex tube shapes.
• We also offer tube filling machines that are fully automated, allowing your team to focus on other important tasks and maximize production output.

CONCLUSION

A tube filling machine is a great investment for any business that needs to fill tubes with products like lotions, creams, pastes, gels, or adhesives. There are many different types of machines on the market and choosing the right one can be tricky. With Allpack tube fillers, you can be sure of the quality and reliability of your tube filling machine system. Our experienced technicians will help you select the best tube filler for your needs, ensuring that your tube fillers are up-to-date with the latest technologies. We also offer custom solutions if you have unique requirements. Contact us today to get started!
