10 Most Popular Types of Capping Machines

Are you having trouble locating the ideal capping equipment for your packing operation? Do you possess any concerns regarding what kind of capping machine would be ideal for your particular industry? Choosing the best capping machine might be difficult with so many variations available.

Picture Courtesy: Kandacork Glass

In the chaotic arena of production and packaging, efficient sealing is crucial in preserving product’s quality, safety, and customer contentment. The capping machines are designed to achieve the highest level of precision, speed, efficiency, and quality of the finished products. From beverages to medicines, these devices exist in a variety of designs, each suited to satisfy the demands of a particular sector.

In this blog post, we will describe the ten most popular and commonly used types of capping machines, highlighting their special features, uses, and advantages they offer to the packaging line. Join us in this unraveling journey!

Add a header to begin generating the table of contents

1.Capping Machine

Capping Machine

The capping machine is an essential element of various production lines where receptacles are filled. It is a remarkable technological innovation which automatically apply seals, caps, and lids to the containers making them airtight and protects the material within them from the external environmental effects.

The device is a highly versatile and adaptable piece of equipment that can be personalized easily and is therefore, a popular tool across industries for varying applications.

2.Different Types of Caps/Closures

A capping machine can process a particular type or can be customized to handle multiple types of closures. There are various forms of caps applied based on the material type and packaging requirements. So, let’s get to know about common types of closures:

Screw Closures They are frequently applied closures for receptacles housing water, beverages, and food goods.
Pop Top Closures Such closures are usually used for materials that require frequent openings, like shampoos, lotions, and food dressings.
Tamper Resistant Closures These closures are applied for extra safety of the material. They provide proof if a receptacle has been tempered with. They are usually applied for medical items and cosmetic goods.
Spray Closures Spray closures are applied to dispense liquids as a spray, like perfumes, hair sprays, and cleansers.
Trigger Closures They are employed for distributing liquids in a splash. They allow for directed sprays and are typically used for floor cleaners, pesticide sprays, and other such chemicals.
Child Resistant Closures These closures are applied to avert materials from the reach of children to avoid accidental ingestion. They are commonly employed for pharmaceutical and chemical goods.
ROPP Closures The roll-on pilfer proof closures are usually applied to liquor bottles, producing a secure bolt.
Cork Closures They are traditional fasteners for liquors and wines, offering a tamper-proof lock.
Crown Closures These closures are employed for vessels containing soft drinks and beer.
Pump Closures Pump closures are applied for dispensing viscous liquids, like lotions, soaps, shampoos, and dishwasher fluids.

3.10 Most Popular Types of Capping Machines and their Functioning

There are heft of the options available on the market. Opting for the equipment is essential to preserve the product’s safety and quality. We will go over the 10 most popular types of capping machines and provide some important information along the way to assist you in making this choice.

3 Capping Machine Types on the Basis of Automation

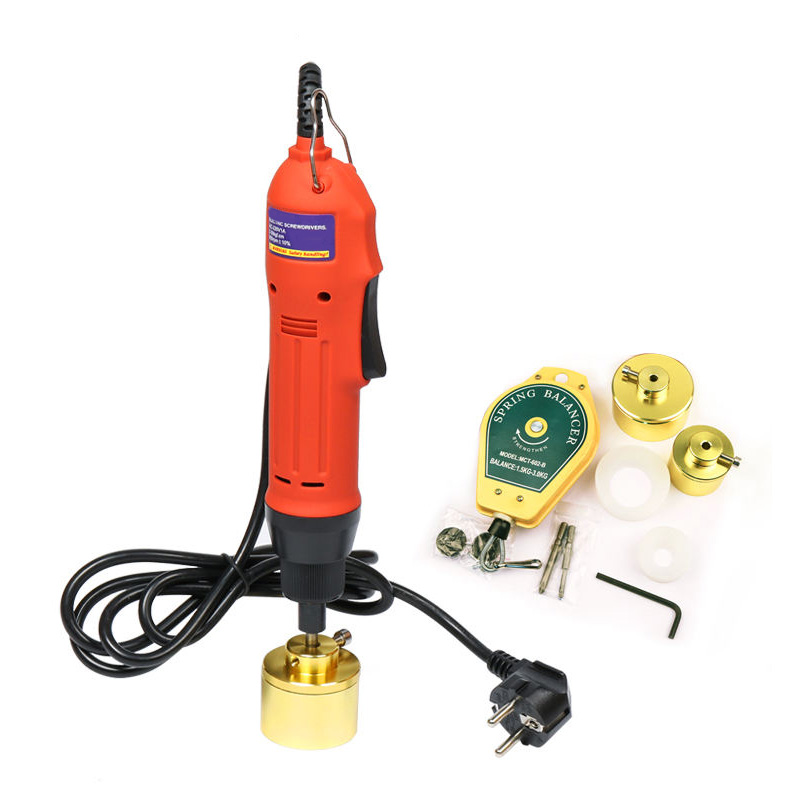

Manual Capping Machine

Manual Capping Machine

The manual capping machine is a handheld operated device. It is a perfect gadget for minor tasks. It has minimum processing capacity, relying upon the worker’s skills. It has a simpler design and an affordable price. Newly established businesses can hugely benefit from this easy-to-use tool.

Working

Each processing step is performed manually. The task initiates by putting receptacles on a flat surface. An appropriate lid is placed on the receptacle. A handheld tool is gripped over the lid. The device handle is pushed lower and the lob rotates to screw the cap.

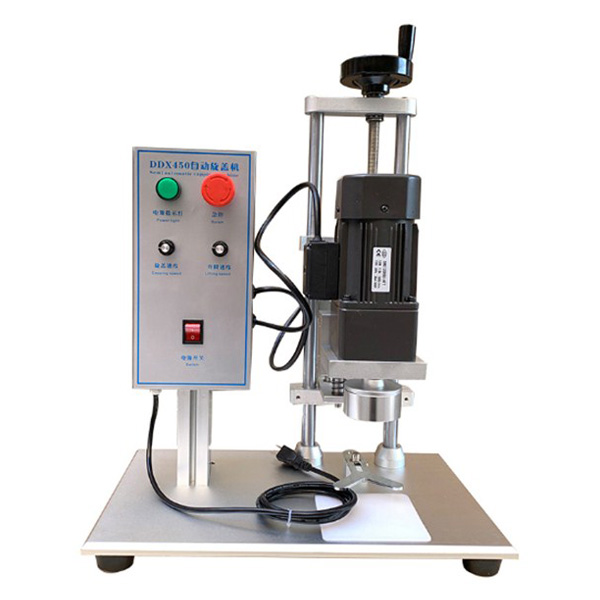

Semi-Automatic Capping Machine

Semi-Automatic Capping Machine

A combination of hand-operation and mechanized control is involved in the semi-automatic capping machine. The equipment is a best possible solution for modest operational needs. It has a processing capacity of about 25-30 receptacles per minute.

Working

The task is initiated by manually putting convenient lids on the vessel heads. The receptacles are then directed firmly toward the equipment. Next, you must turn ‘ON’ the gadget. The piston will regulate the lob to ascend and descend to close the caps.

When the lob comes in contact with the closure, a motor starts functioning. The lid is secured and then the device automatically stops. Now, the gadget can be turned ‘OFF’. The lob will set free the cap and you can take the receptacles.

Automatic Capping Machine

Automatic Capping Machine

The automatic capping machines are tailored with the latest technological components, offering greater processing capacity (up to 200 receptacles per minute) and effectiveness. They consist of several capping and bottle feeding mechanisms.

Working

The containers are conveyed toward the capping segment on the conveyor. The best fitted lids are sorted and directed toward the capping head. The caps are then settled onto the receptacles, which then leave for the screwing segment.

The automatic gadgets also comprises gripping belts to clasp the receptacles and cap stabilizers to prevent closures from tumbling. The capping head grabs the settled caps and applies twists to screw them up.

The capped receptacles are set free and are transported to the next production phase on the conveyor belt.

5 Capping Machine Types on the Basis of Capping Techniques

Chuck Capping Machine

Chuck Capping Machine – Picture Courtesy: CVC Tech

The chuck capping machine is an efficient variant that comes in single and multi-head layouts. The device comprises several pivotal elements, including the capping and chuck/lob head, the conveyor platform, and the cap transporter.

Working

Chuck Capping Technique

The receptacles are transferred on the conveyor. The closures, loaded into the hopper, are dispensed to the chuck head, which hauls down and grasps the lid. A required amount of torque is applied to screw the lid. The chuck head liberates the lid and lifts up.

Spindle Capping Machine

Spindle Capping Machine – Picture Courtesy: Brightwin

The most renowned form of capper is the spindle capping machine. It has a similar structural design as the chuck capper with a different cap application approach, consisting of spindle discs.

Working

Spindle Capping Technique

The conveyor carries the receptacles. Caps are arranged and settled on them, followed by passing from the rotating spindle discs that applies torque, and screw the lids. The closed receptacles get an exit from the device while moving along the conveyor.

Snap Capping Machine

Snap Capping Machine – Picture Courtesy: Levapack

The snap capping machine makes use of a press-on tool to exert pressure on the lids and get an efficient seal. It is a popular device across several sectors, including personal care, beverages, and medical care.

Working

Snap Capping Technique

The moving belt directs the receptacles toward the capping segment. Lids are settled onto them. The capping head hauls down with a required amount of force and pressed the lids down onto the receptacles, securing a leak-proof closure.

ROPP (Roll-on Pilfer Proof) Capping Machine

ROPP (Roll-on Pilfer Proof) Capping Machine

ROPP (Roll-on pilfer proof) cap is a form of bottle closure. It is typically made up of fine grade aluminum due to its ductile nature. The cap starts off as soft, silky, fringed cover. The device rollers mold the cap to fix into the grooves on the bottle neck.

The ROPP capping machine is a remarkable screw-type device which forms the strain by exerting pressure against the receptacle. This device is available as a single and multiple head arrangements. A huge advantage offered by this gadget is that it bottom-seals the closure as well, producing a tamper resistant setting.

The capping head of the device comprises a threading and overlapping rollers.

Working

ROPP (Roll-on Pilfer Proof) Capping Technique

The device works by precisely propping the receptacles under capping heads via the moving belt. The lids picked by the cap feeder are then accurately settled on the receptacles, followed by lowering of the capping head which grasps the lid, forming a drift and seal at the same time.

The head offers a leveled, consistent pressure, resulting in a firm cap and a tamper resistant seal. The receptacles are then set free to move along the conveyor.

Vacuum Capping Machine

Vacuum Capping Machine

The vacuum capping machine is a sublime piece of equipment typically employed to effectively seal glass caskets of varying dimensions. The device imparts a hermetic closure that preserves the material longer than usual. Vacuum casing increases the product’s shelf-life due to limiting the oxygen presence.

The capping head can be customized to adjust different forms of receptacles and closures.

Working

Vacuum Capping Technique

The vacuum capping machine is an easily operated device. The glass containers are conveyed into the vacuum chamber. The chamber is corked to generate a vacuum. Lids are suppled and settled over the containers. The capping head hauls down and screws the lid under vacuum. After capping, containers are liberated and exit the vacuum chamber.

2 Capping Machine Types on the Basis of Configuration

Inline Capping Machine

Inline Capping Machine

The inline capping machine is structured to handle and close the vessels in a linear configuration. The device comprises a moving belt to transit the receptacles in a symmetrical line. The gadget can hold different types of heads simultaneously.

Working

The vessels are conveyed on the moving belt and directed towards the capping section. Closures are put onto the vessel tops. The capping head hauls down, secure the closures and then liberate the heads.

Rotary Capping Machine

Rotary Capping Machine

The rotary capping machine is engineered for huge processing volume and high working pace. It comprises a rotary disc instead of a conveyor for carrying receptacles.

Unlike linear capping machines, which can hold many types of heads simultaneously, applying several kinds of heads requires manually dismantling and reorganizing the heads.

Working

The receptacles are loaded onto the rotary disc, which positions them under the capping nobs. Closures are settled, the disc continues rotation, and each capping nob hauls down and close the vessel. The closed receptacles exit the spinning disc and move along the moving belt.

4.Applications of Capping Machines

Capping machine is an indispensable component of various production lines across industries. Their ability of handling numerous container types and closing them with personalized closure types make them popular in several sectors. Some common businesses are enlisted here:

Food Sector

Applications of Capping Machines in the Food Sector

A number of liquid (free-flowing and non-free-flowing) food items are contained in different form of vessels. They are precisely capped using a capping machine. Some common items are: soy-sauce, tomato ketchup, vinegar, BBQ sauce, food oils, and salad dressings.

Medical Care Sector

Applications of Capping Machines in the Medical Care Sector

In the medical sector, multiple products (liquid and solid dosage forms and other medical care products, such as pyodine and methylated spirit) are closed within different forms of vessels. Their effective sealing is crucial for maintaining the material’s inherent characteristics.

Beverage Sector

Applications of Capping Machines in the Beverage Sector

Several beverages are contained within various receptacles for retail and wholesale distribution. The capping machine applies effective closures on these receptacles. Some common beverages are: energy drinks, soft drinks, tea, coffee, and flavored juices.

Chemical Sector

Applications of Capping Machines in the Chemical Sector

Majority of chemicals cause skin abrasion and therefore must be efficiently packaged within their containers. Common chemicals capped within containers include: liquid detergents, pool chemicals, phenyls, dish washers, toilet cleaners, and laboratory chemicals.

Cosmetic Sector

Applications of Capping Machines in the Cosmetic Sector

Several cosmetic products, such as shampoos, conditioners, lotions, and moisturizers, are effectively closed within bottles using a capping machine to preserve the item’s characteristics.

Automotive Care Sector

Applications of Capping Machines in the Automotive Care Sector

Windshield washer fluids, mobile oils, and radiator coolants are hermetically capped within containers using a capping machine to avoid leakage and any incident.

5.Maintenance

Picture Courtesy: Levapack

Regular maintenance of every industrial equipment is essential to preserve its optimal functioning and a longer lifetime. Neglecting proper and timely maintenance will cause you experience more breakdowns and a possible early deterioration of the device. In this section, you will find some key tips to follow for maintaining your capping machine.

Cleaning: perform routine cleaning of your gadget to prevent dust accumulation that could result in reduced efficiency. Conduct deep cleaning programs periodically to wash out the components that are difficult to clean during regular maintenance.

Polishing: polish and scrub the device parts with a clean cloth for efficient and precise results.\

Greasing: oil the moving parts, such as the motor and the conveyor belt, to reduce friction and ensure smooth operation.

Inspection: timely inspect each component for any sort of damage. Immediately replace the broken parts to avoid costly incidents and breakdowns.

6.Tips for Investing in a Particular Capping Machine for Your Business

Every manufacturer wants their equipment to satisfy their needs and work smoothly and efficiently. Therefore, a right choice of equipment while shopping is the most critical for your production line and your business growth. Here we will unravel some tips or factors involved while selecting a particular capping machine for your packaging solutions.

Assess Your Requirements

Assess Your Requirements

You must assess your production needs before investing in a capping machine. If your demands are low or you own a newly established business, a manual or semi-automatic variant or an inline model would be a suitable option for your business. For huge production demands, an automatic rotary capping machine should be a go-to option for you.

Versatility and Adaptability

Versatility and Adaptability

If you deal with varying container and closure types, you need a device with greater versatility and flexibility. Therefore, you should know about your current dealings and your future objectives as well. Additionally, some models handles a specific type of closure and container, you must also take that into account.

Speed and Efficiency

Speed and Efficiency

If you own a large manufacturing facility and possess a huge manufacturing demands, an automatic rotary device is a recommended one for you. It offers greater speed and efficiency and is engineered for large processing needs.

Cost Factor

Cost Factor

It is the most critical factor involved in the shopping of a capping machine. Evaluate your budget and opt for the variant having a reasonable expense calculation and can effectively meet your demands.

Manufacturer Reputation and Support

Manufacturer Reputation and Support

Always buy your capping machine from a reputed and licensed manufacturer that provides maintenance and technical support to avoid unexpected troubles.

The Bottom Line

Now you have seen, there are a heft of variants of a capping machine. You must also have understood their unique features and applications. Selecting the best device for your business can significantly influence your overall production efficiency and product’s quality. Therefore, consider the tips mentioned in the blog before opting for a particular model. If you need further assistance in purchasing or want to know more about capping machines, feel free to contact Allpack, you will be guided better!

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Bottle Capping Machine from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

How to Troubleshoot Common Problems of Capping Machines

Capping Machine

How to Troubleshoot Common Problems of Capping Machines

Do you own or work in the packaging industry? What is the daily cap count you have to operate? Your answer must be “a lot”.

The capping machine is one such crucial element in various industrial packaging lines. The entire manufacturing timeline will be impacted if it malfunctions out of the blue. So, what should you do?

Understanding the major components of the capping machine and its operation is crucial in establishing a solid foundation for effectively troubleshooting your capping machine. With this information, you can identify the reason for its malfunction and eventually get your capper back on track.

This blog post will cover the common problems of capping machines, their underlying causes, and some of their possible troubleshooting techniques. Now let's get right to it!

Add a header to begin generating the table of contents

1.Capping Machine

Capping Machine – Picture Courtesy: Weighpack

A capping machine is useful industrial equipment that applies caps on various containers, making them airtight and the products within them secure. This device plays a major role in packaging and is one of the most critical components of packaging lines across industries, such as pharmaceuticals, food, chemicals, cosmetics, and beverage.

The capping machine is a versatile equipment and its capability of handling multiple types of containers coheres its place as a fundamental part of packaging solutions.

2.Different Types of Capping Machines

The capping machine is renowned for its speed and precision. You will observe various designs and versions on the market, specifically engineered for varying manufacturing demands. They are typically categorized into 3 classes according to the degree of automation.

Manual Capping Machine

Manual Capping Machine

The handheld capping device is a perfect tool for smaller tasks. It is a portable tool, providing you with meticulous check over the process. It is a reasonable device for newly constituted businesses. It has a limited production capacity, entirely relying on the operator’s skills and energy.

Semi-Automatic Capping Machine

Semi-Automatic Capping Machine

The semi-automatic capping machine involves manual functions and device automation. It is suitable for medium-sized industries. The manufacturing limit is approximately 20 to 30 containers per minute, offering a significant speed at an affordable price.

The manual tasks include placing a cap on the vessel head and the discharge of screwed vessels. The rest of the process is completed by the device through automated mechanisms.

Automatic Capping Machine

Automatic Capping Machine

The automatic capping machine is a smart device that can finish the complete process automatically and efficiently. It is a recommended device for large-scale activities. It can process about 200 containers per minute. The device has two capping mechanisms; spindle and chuck technique. The most commonly used technique is spindle capping.

3.How to Troubleshoot Common Problems of Capping Machines?

Now you know about different models of capping machines. They are sophisticated devices but like every industrial device, they also encounter certain problems due to continuous operation and extensive usage. To keep your workflow optimized and to rectify the issues, you must know about these problems and their possible reasons.

Here you will get to know about the common problems encountered in several models of capping machines and how to troubleshoot them. So, without any further delay, let’s get to the topic:

Manual Capping Machine Problems and Solutions

A user-friendly manual capping machine is made possible by its straightforward construction. Still, it may malfunction from time to time. So let's examine the potential problems with the device and their fixes.

Detached Cap
Causes Misalignment of cap with the vessel. An incorrect capping method is applied.	Solutions Reposition the bottle’s lid. Employ the appropriate capping method.
Improper Cap Fitting
Causes The capper segment is impaired. The vessel is not aligned with the device or settings.	Solutions Consider replacement of damaged components. Make adjustments to accommodate the bottles.
Deformed Cap
Causes The characteristics of cap is not synchronized with the capping head. A wrong way of capping is employed. An excessive amount of torque is applied.	Solutions Make adjustments to the capping head according to the cap’s features. Employ a correct capping method for respective lids. Balance the amount of torque applied.

Semi-Automatic Capping Machine Problems and Solutions

A semi-automatic capping machine also faces some problems during its operation. Some of the commonly experienced issues and their troubleshooting tips are discussed:

Faulty Motor
Causes The motor is malfunctioned. The motor is moving slowly due to friction. Impaired wiring. Interruption in the power source.	Solutions Replace the impaired motor. Lubricate the motor to reduce friction. Resolve the issue of wiring. Ensure an uninterrupted power supply.
Malfunctioned Pneumatic Piston
Causes Inadequate air pressure. Damaged timer or relay. Defective throttle or solenoid faucet.	Solutions Adjust the air pressure. Substitute the relay and timer. Repair or substitute the faucets.
Insufficient Fastening of Cap
Causes The processing rate is too fast. The torque applied is insufficient. The lid is damaged or has a smooth interior. The size of capping head is not fitting. The cap is improperly settled.	Solutions Adjust the processing speed. Regulate the torque applied to the required level. Remove the damaged or faulty cap. Employ a right-sized capping head. Calibrate or align the cap fitting block.

Automatic Capping Machine Problems and Solutions

Automatic capping machines are the most advanced and adaptable form of equipment. Although it usually does not break down, there may be some faults and you must know them to avoid costly spills.

Knocking Over of Receptacles
Causes The conveyor belt is damaged or inclined. The conveyor speed is too high. The gripping belt has too strong or weak clasp.	Solutions Adjust the conveyor belt to make it level. Replace the damaged conveyor belt. Regulate the conveyor speed and grip of the gripping belt.
Missing Cap
Causes The cap feed and stock are over. There is an obstruction in the cap feeding route. The conveyor speed is not in order with the cap feeder/placer.	Solutions Ensure significant quantities of caps in the hopper. Check for any clogged cap or obstruction in the cap feeding. Clear the obstruction. Synchronize the conveyor speed with the feeder.
Overtightened Cap
Causes The spindle discs are too congested. The torque adjusted is too high.	Solutions Ensure proper spacing between spindle discs. Regulate the torque applied via the operation panel.

4.Key Components of a Capping Machine

Capping machines are advanced equipment composed of several mechanical and electrical components, each contributing uniquely to the overall processing. The key components included in a capping machine are:

Key Components of a Capping Machine

Components	Description
*Conveyor Belt*	The conveyor belt is a platform that transits containers through different processing stages. It ensures streamlined workflow and uninterrupted movement of containers, keeping suitable space and time between them. It can be customized to adjust varying container sizes and processing speeds.
*Rotate Plate*	It is a rotating structure that holds and assembles the containers for capping. It is a useful component for high-speed processing. It houses multiple containers at a time, allowing the capping head to cap containers in succession with ease. The rotational speed can be adjusted to synchronize with the conveyor belt and capping head’s speed.
*Capping Head*	It is a critical component of the device, applying caps to the containers. It positions the cap on the containers and applies the necessary torque to ensure a secure closure. It can have multiple designs or adjustments to handle various caps.
*Cap Pressing Head*	It works in combination with the capping head. It applies descending pressure on the caps and ensures its firm attachment.
*Cap Vibratory Sorter*	It is responsible for organizing the caps before they are positioned onto the containers. It ensures a constant feed of organized caps to the capping segment. The sorter uses the vibratory mechanism to move and orient the caps.
*Operation Panel*	It is a touch screen with software installed. It allows the operators to monitor and regulate the whole process. It makes the device easier to use.
*Powerful Motor*	The motor connects the machine to the power supply necessary for smooth functioning.

5.Working

The capping machine’s working is evidence of one of the wonders of technology and engineering. Let’s examine each phase of the capping procedure, paying particular attention to the screw capping step:

Working

At the beginning of the process, the cap loader assembles and provides the caps to the device. Simultaneously, the containers ready to be sealed are also fed to the device via the conveyor belt.

As the bottle reaches the capping section, the cap that has been gathered already is positioned atop the bottle. It is a critical step in the process, maintaining a streamlined workflow and ensuring each bottle gets its perfect cap.

In the next phase, the bottle along with the cap is guided forward. This is where capping heads play their role. They descend and apply the appropriate amount of torque on the cap. The amount of torque is adjusted suitably to ensure a tightened cap without damaging the bottle or cap.

In the case of semi-automatic variants, the caps are placed on bottles manually following the application of torque by the capping heads.

After the secure capping of bottles, they are discharged along the way on the conveyor belt for further processing.

6.Importance and Benefits

Due to numerous incredible benefits, capping machines have gained importance across various industries. They provide extensive benefits to ensure the product’s integrity, quality, and safety. Some key benefits of the capping machine are discussed here:

Increased Efficiency and Productivity

Increased Efficiency and Productivity

Every manufacturer desires efficient and rapid production to meet the high production demands. And that’s what an automatic capping machine provides. The device automates the processing line, neglecting human involvement, ultimately leading to increased production output while maintaining efficiency and consistency.

Reliable and Uniform Capping

Reliable and Uniform Capping

Another compelling benefit a capping machine offers is its reliable and uniform capping. With proper adjustment of the parameters, each bottle will be sealed in the same fashion, resulting in product uniformity. Automation reduces the chances of capping errors and preserves the finished product’s quality throughout the process.

Improved Product Safety and Quality

Improved Product Safety and Quality

The effective sealing provided by the capping machine ensures the product remains safe and secure, avoiding leaks and spills during further processing, storage, and transportation. Moreover, the consistency in the process enhances the overall product’s quality hence improving customer satisfaction.

Cost Benefits

Cost Benefits

Investing in a capping machine offers long-term cost benefits. It automates the workflow and minimizes the need for labor. Additionally, it reduces the chances of human errors that could lead to spills and leakages and ultimately resource wastage.

Customization

Customization

The advanced versions of capping machines allow manufacturers to process various products, caps, and containers with the same equipment through easy changeovers and customization.

7.Applications

The significance of capping machines is broad. It is a popular device across various sectors. The major ones are discussed below:

Beverage Industry

Applications of Capping Machines in the Beverage Industry

The capping machine is employed in the beverage industry to secure bottles containing carbonated and non-carbonated drinks and juices. The efficient capping preserves the product’s integrity and freshness.

Food Industry

Applications of Capping Machines in the Food Industry – Picture Courtesy: Pasta Sauces

Several food products are effectively enclosed in various bottles using a capping machine. These products include viscous and non-viscous materials, such as ketchup, vinegar, sauces, oils, honey, and jams.

Pharmaceutical Industry

Applications of Capping Machines in the Pharmaceutical Industry

In the pharmaceutical industry, several bottle types are used for packaging multiple dosage forms, including tablets, capsules, syrups, suspensions, and elixirs. The capping machine is used for their efficient capping, protecting them from external environmental effects.

Personal Care Industry

Applications of Capping Machines in the Personal Care Industry

Certain personal care products are packaged in bottles or similar containers in the cosmetics industry. The capping machine allows the material to remain fresh for an extended time by providing efficient closures.

Chemical Industry

Applications of Capping Machines in the Chemical Industry

The bottles containing chemicals need to be effectively sealed and capped as the chemicals inside can be irritating and infectious. Chemicals that are capped using a capping machine include detergents, cleansers, dyes, paints, and other industrial chemicals.

Automotive Industry

Applications of Capping Machines in the Automotive Industry

In the automotive industry, automotive care products are bottled and efficiently capped using a capping machine. Items like windshield washer fluid, mobile oils, and battery acids come in bottles and cans and should be preserved in leak-proof capping.

8.Maintenance

Maintenance of Capping Machine

Apart from obtaining troubleshooting skills for your capping machine, regular maintenance of your device is also important. This will keep the device in optimal condition for a longer period and reduce the chances of errors.

Inadequate proper maintenance will make your device prone to frequent breakdowns. It will result in reduced production efficiency. Here you will perceive a few helpful pointers on your device’s maintenance:

Daily Maintenance

Wipe out the complete device to remove the dust and accumulated particles with water and soft cloth. A suitable detergent can also be used instead of water.

Oil the dynamic parts of the device. Use the lubricant suggested by your device manufacturer.

Examine every nut and screw and make them tight.

Weekly Maintenance

Thoroughly clean your device at least once a week. Disassemble the device and clean all the components. The focus should be more on areas that are hard to clean during daily upkeep.

Inspect the parts for any impairment or tear. Consider immediate replacement or repair.

Check for the electrical wiring. Repair it immediately as loose wiring can be hazardous.

Adjust the capping torque and other parameters appropriately to avoid inconsistency and damage.

Monthly Maintenance

Perform an extensive inspection every month to protect the device from breakdowns.

Document all the maintenance programs conducted, personnel names, dates, and problems identified and fixed.

Conclusion

The capping machine is a must-have component for every production line dealing with products to be packaged in bottles. It offers numerous benefits, including speed, precision, and efficiency. Although it is a sophisticated piece of equipment, it still encounter problems due to continuous working. Every entrepreneur desires of a device with a longer lifetime. If you want your device in top working condition, you must know about the problems encountered and how to fix them immediately plus performing regular maintenance. For more information on troubleshooting your capping machine, please contact Allpack, a leading industrial equipment manufacturer and service provider.

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Bottle Capping Machine from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

How to Troubleshoot Common Problems of Capping Machines Read More »

Bottle Capping Machine: The Complete Buying Guide In 2024

Capping Machine

Bottle Capping Machine: The Complete Buying Guide In 2024

Bottle Capping Machine - Picture Courtesy: SUNHAN PACK

Are you interested in buying a bottle capping machine? Are looking for a suitable bottle capping machine for your process? Do you want to gather more information regarding a bottle capping machine? This platform will sort all your queries and will help you in finding the best suitable bottle capping machine for your process. This buying guide will assist you in finding what a bottle capping machine is and how its operation performed. For getting a complete overview read the complete blog in detail and gets the possible knowledge from it.

Add a header to begin generating the table of contents

1.What Is A Bottle Capping Machine?

A bottle capping machine is a highly versatile machine that is used to apply caps on different types of bottle for making them airtight. The basic requirement of these machines is to prohibit the entrance of particles and microorganism into the bottles so that it can be secured for a longer period. Bottle capping machines are mostly used in food, pharmaceuticals, beverages and chemical industries where the material is packed and delivered in different sizes of bottles.

2.What Are The Industrial Applications Of A Bottle Capping Machine?

Bottle capping machines are widely used in different industries to increase the productivity of that industry and also to make the product look presentable. Some of the industries that mostly uses bottle capping machine are

Beverages Industry

Bottle capping machines are abundantly used in beverages industries as large number of bottles are manufactured there in a single day. The bottles contain both carbonated and non-carbonated drinks that are efficiently secured for a longer period by application of bottle caps. Materials freshness lives the same by maintaining its purity.

Pharmaceutical Industry

Bottle In Pharma - Picture Courtesy: Healthcare Packaging

Bottles in pharmaceutical industries are used for filling of medicines, liquid syrups, ointments and etc. These bottles are filling of material undergo capping process by a highly efficient bottle capping machine. Material spillage and wastage during its transportation can be avoided while applying caps using a bottle capping machine.

Food Industry

Glass And Plastic Food Packaging - Picture Courtesy: Imperial Packaging

Food industry also uses bottle capping machine during packaging of liquid and viscous products like jams, ketchups, milks, dairy products, sauces, oil and etc. Bottles of different sizes and shapes can easily be sealed airtight so that any type of contamination can be avoided and the freshness remains same.

Cosmetic Industry

Cosmetic Packaging - Picture Courtesy: TricorBraun

In some places of cosmetic industry where products like shampoos, creams, lotions and other personal protective products that are filled in bottles are capped using a bottle capping machine. These caps allow the product to remain safe and secure while shipping and movement.

3.What Are Advantages Of A Bottle Capping Machine?

Some of the advantages of a bottle capping machine are

Efficient Capping

Productivity And Efficiency

Bottle capping machines are highly efficient in their process. The machines are available in both manual and automatic modes depending upon the requirement of process. Each of the product gives identical capping result with maximum output rate.

Quality

Quality

Quality Bottle Capping Machine - Picture Courtesy: SureKap

The quality of sealing done by a bottle capping machine is of high quality and precision. The turning effect on each type of bottle can be adjusted according to its cap size and can be changed of required in a bottle capping machine.

Customization

Custom Caps - Picture Courtesy: SKS Bottle

One of the most unique benefits of a bottle capping machine is that it allows process to variety of bottles and their types. Customization can be done by just changing the bottle holder and its turning speed.

4.What Is The Working Principle Of A Bottle Capping Machine?

Capping Machine & How Does It Work - Picture Courtesy: SUNHAN PACK

Bottle capping machine has a simple working principle in which bottles are capped to secure materials so that it can be used for longer period. Some of the basic working steps in the operation of a bottle capping machine are

Initially the setting parameters are installed in the machine according to the size and shape of the bottle. The parameters include speed, height, width, angle, gripping adjustment and filling rate.

In the next step the filling process gets started in the bottle filling machine and the required material is entered into the bottles.

The caps are on the same time inserted in the hopper from where they are then supplied to the capping area through feeding mechanism.

Once the bottles gets filled, it is then moved forward to the capping machine where the capping head moves downward and holds the head of bottle.

The cap chuck header rotates on the head of bottle with a certain pressure and tightens the cap in term of rotating, screwing or direct implementation.

The torque of these caps is checked by highly sensitive sensors and their quality is maintained according to it.

Finally, the filled and capped bottle is moved towards the offloading side by a conveyor and here they are packaged for transportation.

5.What Are The Main Components In A Bottle Capping Machine?

Full Automatic Bottle Capping Machine - Picture Courtesy: ZONESUN TECHNOLOGY

Some of the main components of a bottle capping machine are

Conveyor Belt

This is the feeding mechanism of a bottle capping machine that inserts the filled bottles into the capping process. Speed of a conveyor can be adjusted according to the requirement and productivity.

Hopper

A hopper or a feeding head is the place in which the caps are inserted. Like feeding mechanism of other machines, a hopper can also hold thousands of caps in it and moves them into the system as and when required.

Bottle Guiding Device

In a bottle capping machine, a bottle guiding device is usually connected on the conveyor where guides are used to direct the bottles towards capping process. These guides are mostly made up of rubber and metal part. Any irregularity in movement of bottles can be avoided through these bottle guiding devices.

Capping Chuck

This is the place that holds the caps inserted by the cap feeding mechanism. A capping chuck moves vertically down and up during the capping process. Once the bottle reaches below this capping chuck, it moves down and places the cap on the top of bottle. It also screws, torques and tights the cap so that no spillage of material occurs.

Motor

Mostly servo motors are used in a bottle capping machine due to its highly precise movement and angle detection. It continuously monitors and sends the feedback back to the system. The motor is responsible for the movement of capping chuck in vertical direction and also while the torque is applied on it.

Operational Panel

The operational panel of a bottle capping machine contains all the processing operation control in it. It includes conveyor speed control, system emergency, capping speed, material flow, flow rate, feeding mechanism and systems performance monitoring and display feature. The operator can easily control and monitor the operation through this operational panel.

Electric Eye

The electric eye of a bottle capping machine holds the overall sensing equipment of the process. It detects starting from the movement of bottles throughout the system to the final detection of capping that whether it is properly inserted or not. Complete sensors of the machine are connected with this so that quality capping can be performed.

6.What Types Of Bottle Capping Machines Are Available Globally?

Some of the types of a bottle capping machines are

Screw Bottle Capping Machine

A screw bottle capping machine is one of the mostly used type of bottle capping machine used globally. It rotates the cap on the top of a bottle and tights it to its maximum thread and limit. This type of bottle capping machine is present in all type of bottle processing industries.

Working Principle

Initially, the bottle is loaded on to the conveyor and moves in forward direction.

Once the bottles are filled they enter the capping process and the capping chuck places cap on the top of bottles.

The capping chuck contains rotating head that rotates in a way that the screw threads completely get in contact with the threads on bottle and tights it accordingly.

Finally, the capped bottles are then removed from the offloading side of the bottle capping machine.

Snap Bottle Capping Machine

Automatic Press Snap Bottle Capping Machine - Picture Courtesy: VKPAK

The capping mechanism of this type of bottle capping machine includes engagement of bottles neck with the grooves and applying a snapping fixture. No screwing is required and by only pressing the cap can also be enough in a snap bottle capping machine.

Working Principle

Firstly, bottles are loaded on to the conveyor and are moved in forward direction.

Bottles after getting filled enter in the capping process where the capping chuck places cap on the top of bottles.

Here the capping chuck just fixes the caps on the top of bottle and then applies a low pressure to press it on the bottle neck.

Finally, the capped bottles are then removed from the offloading side of the bottle capping machine.

Cap Placer Bottle Capping Machine

Fully Automatic Press Cap Placer - Picture Courtesy: Rhino-Pak

A cap placer bottle capping machine is somehow a traditional method of applying caps on the bottles as it is only responsible to place caps. Cross threading is applied in this type of bottle capping machine to tight the bolts and threads.

Working Principle

Firstly, bottles are loaded on to the conveyor and are moved in forward direction towards the filling process.

After getting filled, these bottles enter in the capping process where the capping chuck places cap on the top of bottles.

The cross threading mechanism of a cap placer bottle capping machine fixes the caps on the top of bottle and then tights the nut to its maximum required torque.

Finally, the capped bottles are then removed from the offloading side of the bottle capping machine.

In-line Bottle Capping Machine

In-line Bottle Capping Machine - Picture Courtesy: Pharmaceutical Packaging

An in-line bottle capping machine is highly capable of adjusting different sizes and types of bottles in it. Pneumatic processes are used in an in-line bottle capping machine to cap thousands of caps in just a small duration.

Working Principle

In the first step the bottles are loaded on to the conveyor and are moved in forward direction.

Once the bottles are filled they are entered in the capping process where the capping chuck places cap on the top of bottles.

The capping chuck of an in-line bottle capping machine with the help of air pressure applies the caps on different sizes of bottles and containers.

This air pressure air tights the caps so that no spillage or material leakage occurs while travelling hundreds of kilometers.

Finally, the capped bottles are then removed from the offloading side of the bottle capping machine.

7.Which Material Is Suitable For Performing Capping Through A Bottle Capping Machine?

This has been the most asked query that what actually be the capping material to check its suitability. The bottle caps should be made up of

Metal Caps

Metal Bottle Caps - Picture Courtesy: Recycle Caps

One of the widely used types of material is metal. Metals like tin, aluminum or alloys are affective when it comes to stop external air and moisture involvement. Metals caps are used in bottles containing wine, carbonated drinks and other types of chemical spirits and can also be recycled. The seal applied though metal caps are of strong strength and it is precisely placed by a bottle capping machine.

Plastic Material

Plastic Bottle Caps

Most of the plastic caps are made up of polystyrene, polyethylene and polypropylene. These materials are hard and of low cost that makes the product look pleasant and cheaper respectively. Most of the plastic caps are installed by a bottle capping machine on juice, beverages and medicine bottles where the products are directly consumed by human beings.

Rubber Stoppers

Rubber Stopper - Picture Courtesy: Etsy

Stoppers made up of chlorobutyl and bromobutyl class of rubber are resistant towards entrance of any type of environmental material. The materials that are filled in bottles and then sealed using rubber stoppers are mostly related to pharmaceutical industry where high class sealing is required.

8.What Is The Difference Between A Cap Inserting Machine And A Bottle Capping Machine?

Both of the types of machines are mostly used in pharmaceutical, packaging and food industries where large numbers of products are produced on daily basis. Some of the basic differences between both of the machines are

Purpose Of Use

A cap inserting machine mostly refers to just placing the caps the on to the neck of a bottle. It does not involve any type of tightening or torque activity. It is done in the further steps.

Whereas in a bottle capping machine, complete implementation of caps from its placement to its tightening is performed by the capping chuck of the machine. The machine does not rely on any further step.

Operation

In a cap inserting machine, once the bottles are placed beneath the capping head, a vacuum suction mechanism gets started and the caps are precisely placed on the top of the bottle neck. It is then further tightened and sealed on further steps.

On the other hand, as the bottle reached the capping head of a bottle capping machine comes downward, installs the cap and then tights it according to the mechanism of machine. Complete required torque is applied so that the bottle remains air tight and resists any interference.

Applications

Cap inserting machines are widely applied in pharmaceutical, chemical and food industries where large number of products is produced.

A bottle capping machine is a highly precise machine that is used according its automation level and production required. Mostly beverages, chemical, pharmaceutical, food and cosmetic industry uses a bottle capping machine.

Caps Variety

Variety of cap types can be used in a cap inserting machine and they can be further installed on different sizes of bottles.

A single bottle capping machine accommodates single method of capping and the whole system can be changed according to its requirement. But one type of capping is performed at a certain period of time.

9.What Auxiliary Machines Are Associated With A Bottle Capping Machine In A Processing Line?

A bottle capping machine has many auxiliary machine associated with it to perform its process and some are

Bottle Unscrambler

Bottle Unscrambler - Picture Courtesy: Pharma Packaging Systems

A bottle unscramble is basically used to identify and sort different sizes and types of bottles and caps. They align these bottles on the conveying mechanism so that they are moved in a proper way towards the filling and capping process.

Bottle Filling Machine

Bottle Filling Machine

A bottle filling machine is the most important auxiliary machine present in the system as it is primarily used for the filling of material into the bottle that has to be capped. This machine precisely fills the bottle in a way that no spillage can occur afterwards.

Bottle Sealing Machine

Automatic Bottle Sealing Machine

Once the caps are applied mostly rubber and plastic, bottle sealing machines are used further to seal them and form an airtight surface. Sealing machines are set at a certain temperature so that the caps may not get overheat.

Pressing Machine

Pneumatic Cap Press - Picture Courtesy: Adelphi Group

In some of the bottle capping machine processes, pressing machines are also used to press the caps that are inserted previously. These can be rubber stoppers or plastic stoppers.

Labeling Machine

Bottle Sticker Labeling Machine- Picture Courtesy: Secondary Packaging

Once complete sealing is done, labels are applied on these bottles using a labeling machine. These labels contain all products and manufacturer related information so that the customer can easily get aware of it.

Bottle Cartoning Machine

Automatic Bottle Cartoning Machine- Picture Courtesy: Cartoning Machines

In the last step, a bottle cartoning machine is used that packages all the bottles in a single carton. This makes easy handling of bottles and also helps them in traveling long distances.

10.How Different Sizes Of Caps Can Be Processed In A Single Bottle Capping Machine?

Bottle Capping Chuck- Picture Courtesy: Precision Tork

The basic principle of a bottle capping machine adjust variety of cap sizes and cap types in a single machine. It precisely can handle variety of caps just by adjusting the capping head and its feeding mechanism. In a bottle capping machine, easy changeovers can be carried by adjustment of tool and different types of tools can be interchanged at a same level. In this way the required capping tool can be used easily in a bottle capping machine.

Conclusion

Have you got all about a bottle capping machine and its process? Now are you familiar with different types of bottle capping machine? If still you have some queries related to “Bottle Capping Machine” and finding more facts about it, feel free to contact us. We are always here to support, assist and deliver you the best type of machine for your processing setup. Our customer representatives are active 24/7 and can help sorting your concern regarding any type of process and packaging machine.

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Bottle Capping Machine from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

Bottle Capping Machine: The Complete Buying Guide In 2024 Read More »

Screw Capping Machine: The Complete Buying Guide In 2024

Capping Machine

Screw Capping Machine: The Complete Buying Guide In 2024

Are you looking for the perfect solution to your bottle sealing problems? Are you tired of manually trying to screw-cap bottles and striving for a seamless solution? If so, then a screw capping machine is the ideal choice for you.

This type of equipment automatically caps or seals containers using either plastic, metal or composite lids with an airtight seal. It’s highly efficient and can greatly reduce manual labor costs and delivery timeframes without compromising product quality.

Screw Capping Machine

In this blog post, we will dive into all there is to know about screw capping machines: from their simple yet powerful technology behind them to their versatility in use cases as well as how they can provide businesses with additional economic benefits. Keep reading to find out more!

Add a header to begin generating the table of contents

1.What Is A Screw Capping Machine?

Screw Capping Machine-1

A screw capping machine is a device that is used to screw caps onto containers such as bottles and jars quickly, safely, and securely. It can be used for a variety of applications including food and beverage production, pharmaceuticals production, cosmetics production, laboratory use, etc.

The screw capping machine uses the latest technology in closure application systems to screw caps on to containers in a secure and efficient manner. It can apply screw caps of varying sizes and types, from plastic screw caps to metal screw caps with ease.

Also, the screw capping machine offers unparalleled accuracy and speed while ensuring the safety of workers and consumers. This type of machinery is highly reliable, easy to use, and cost-effective.

2.What Are The Components Of A Screw Capping Machine?

Screw Capping Machine-2

Capping head: The screw capping machine has a capping head which holds the cap and screws it onto the container with a chucking motion.

Container handling system: The screw capping machine also has a container handling system which is used to move containers into position for the screwing process.

Chucks: The screw capping machine has a set of chucks which are used to hold the containers in place while it is being screw capped.

Adjustable speed control: The screw capping machine also has an adjustable speed control, allowing you to adjust the screwing process based on container size and product characteristics.

Cap feeding system: The screw capping machine is also equipped with a cap feeding system which ensures that the right amount of caps are fed into the screwing mechanism.

Torque control system: The screw capping machine has a torque control system which automatically adjusts the screwing process to ensure proper tightening of the screw cap.

Rejection system: The screw capping machine also has a rejection system which kicks out any containers or screw caps that fail to meet quality standards.

3.What Are The Benefits Of A Screw Capping Machine?

Benefits Of A Screw Capping Machine

Increased Efficiency

Screw capping machines are incredibly efficient, allowing for faster production of capped containers in comparison with manual screwing. This increased efficiency can lead to a significant reduction in labor costs and an overall increase in productivity.

More reliable seals

Screw capping machines create tighter screw caps than manual screwing, which ensures an airtight seal and prevents the contents inside from being exposed to external elements. This makes screw capping machines a more reliable way of sealing containers than manual screwing.

Greater Accuracy

Screw capping machines enable greater accuracy in screw placement and screw tightness than manual screwing, making the process more precise and consistent. This makes screw capping machines a better option for applications where screw placement and screw tightness are particularly important.

Reduced Waste

Screw capping machines reduce waste caused by manual screwing as they require less packaging material to cover the screw cap and protect it from damage before, during, and after screwing. This reduces the cost of packaging materials and helps to improve sustainability.

More Flexibility

Screw capping machines can be easily programmed to accommodate different screw sizes, screw shapes, and screw lengths, making them a versatile option for companies that produce different types of containers with various screw caps. This flexibility can help businesses save time and money as they won’t need to purchase separate screwing equipment for each screw type.

4.What Are The Applications Of A Screw Capping Machine?

A screw capping machine is widely used in a variety of industries, including pharmaceuticals, chemical production, cosmetics and food & beverage. Here are some of the key applications for screw capping machines:

Food Industry

Food Industry

Screw capping machines can be used to seal jars and other containers with products such as sauces, jams, jellies, pickles etc. This ensures that the product is securely sealed and prevents leakage during transport or storage.

Pharmaceutical Industry

Pharmaceutical Industry

Screw capping machines are also used in the pharmaceutical industry for sealing bottles containing medicines, ointments, and other medicines. This helps to ensure that the products remain uncontaminated and secure during transport or storage.

Cosmetics Industry

Cosmetics Industry

Screw capping machines can also be used in the cosmetics industry for sealing bottles containing creams, lotions and other cosmetics products, thus preventing leakage during transit.

Chemical Production

Chemical Production

screw capping machines are also used in chemical production to seal bottles containing various chemicals, ensuring that the product remains secure during transport and storage.

Beverage Industry

Beverage Industry

Screw capping machines are also used in the beverage industry for sealing bottles containing carbonated beverages, alcoholic beverages, juices and other drinks. This helps to ensure that the product remains secure during transit or storage.

5.What Are The Working Principles Of A Screw Capping Machine?

Working Principles Of A Screw Capping Machine

The screw capping process begins by screwing the cap onto a container and then tightening it to ensure that it stays in place. The screw capping machine is designed to automate this process, ensuring accuracy and consistency. This machine uses a screw head to screw the cap on the container, which requires a specific torque setting for each type of cap.

Once the screw head has been applied, the screw capping machine will provide a series of automated screwing and tightening actions to ensure that the cap is in place. The screw capping machine will then check for torque settings to ensure that each container has been properly tightened according to its specifications.

Finally, the screw capping machine will release the screw head from the container to complete the process.

6.What Are The Different Types Of A Screw Capping Machine?

There are a variety of screw capping machines available on the market. These include:

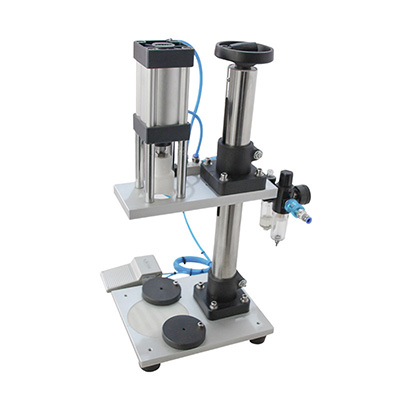

Manual Screw Capping Machine

Manual Screw Capping Machine

Manual screw capping machines are typically used in low-quantity production environments, such as small laboratories or research facilities. They feature manual rotation and tightening of screw caps, allowing operators to carefully deal with delicate screw caps.

Semi-Automatic Screw Capping Machine

Semi-Automatic Screw Capping Machine

These machines are suitable for mid-capacity production runs, and feature a semi-automatic screw cap tightening process with varying speed and torque settings for precise control. They can also be designed to accommodate various screw caps sizes and shapes.

Automatic Screw Capping Machine

Automatic Screw Capping Machine

These machines are suitable for high-capacity screw capping in industrial production environments. The screw cap tightening process is fully automated, allowing for faster and more efficient screw capping operations. Additionally, these machines can be equipped with advanced features such as automatic screw cap sorting and coding capabilities.

High Speed Screw Capping Machine

High Speed Screw Capping Machine

High speed screw capping machines are designed to accommodate screw caps with diameters greater than 5 millimeters. This type of screw capping machine is suitable for high-speed production operations, and can achieve speeds of up to 1000 screw caps per minute.

7.What Is The Difference Between Manual Screw Capping Machine And Automatic Screw Capping Machine

a) Manual Screw Capping Machine

Manual Screw Capping Machine-2

b) Automatic Screw Capping Machine

Automatic Screw Capping Machine-4

The primary difference between manual and automatic screw capping machines is the level of automation. Manual screw capping machines require manual intervention to secure the cap to the product container while automatic screw capping machines can be programmed to secure caps at a much faster rate.

Manual screw capping machines are manual operated, with an operator manually securing the cap onto the container. This manual approach can provide a low cost option for capping but will generally come with slower production speeds and higher labor costs.

Automatic screw capping machines on the other hand are powered by motors and use servo-driven technology to secure caps onto containers at a much faster rate than manual machines.

Automatic screw capping machines also reduce manual labor costs and improve productivity by eliminating manual intervention. The machines are typically more expensive than manual machines but often times offer a faster return on investment due to their higher production speeds and reduced labor costs.

8.What Is The Difference Between Automatic Screw Capping Machine And Semi-Automatic Screw Capping Machines?

a) automatic screw capping machine

automatic screw capping machine-2

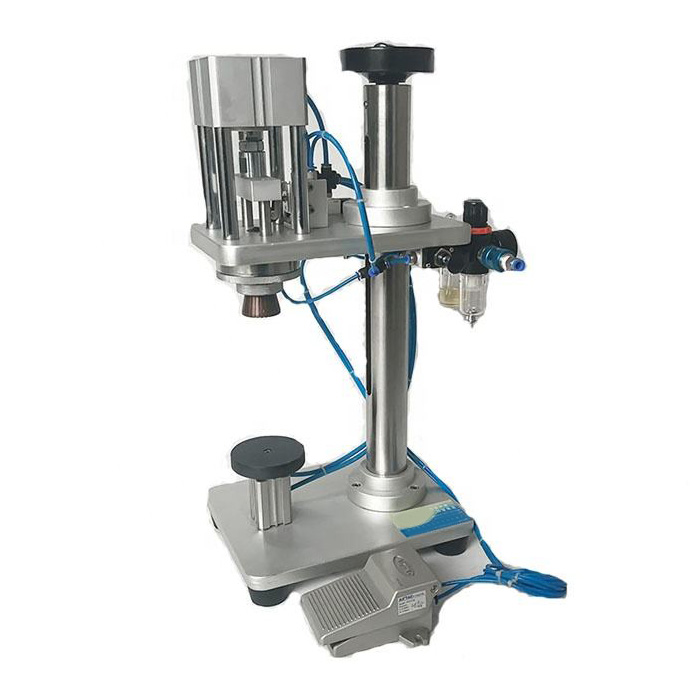

b) semi-automatic screw capping machine

Semi-Automatic Screw Capping Machine

The main difference between automatic and semi-automatic screw capping machines lies in the level of automation.

Automatic screw capping machines are fully automated, meaning that they can operate without any human interference. They have sophisticated programming and sensors to detect when a lid is placed on a container and apply the necessary torque for proper sealing.

Semi-automatic screw capping machines, on the other hand, require manual operation to begin the lid closing process. While automatic machines complete the capping process without any human interference, semi-automatic machines require someone to manually place and tighten the lid onto a container before they can be sealed properly.

Also, while automatic machines can be more expensive upfront, their level of automation makes them ideal for high-volume production lines where accuracy and speed are crucial factors. Semi-automatic machines may be a more cost-effective choice thus suitable for smaller scale production runs.

9.What Type Of Materials Can Be Used With A Screw Capping Machine?

Screw capping machines are versatile tools that can be used with several different types of screw caps to ensure a secure fit. They include:

Plastic Screw Caps

Plastic Screw Caps

A screw capping machine can be used to tightly fit plastic screw caps onto containers. The screw cap is placed onto the container and then tightened by the screw capping machine.

Metal screw caps

Metal screw caps

In addition to plastic screw caps, a screw capping machine can also be used to cap metal screw caps onto metal containers. The metal screw caps are placed onto the container and then securely tightened by the screw capping machine.

Aluminum Screw Caps

Aluminum Screw Caps

A screw capping machine is also able to apply aluminum screw caps onto containers. Once again, the aluminum screw cap is put in place and then tightened with the screw capping machine for a secure fit.

Crimp Caps

Crimp Caps

A screw capping machine can be used to tighten crimp caps onto containers as well. The screw capping machine is able to securely tighten the crimp cap onto the container for a secure fit and seal.

10.What Type Of Containers Can Be Sealed Using A Screw Capping Machine?

Plastic Containers

Plastic Containers

A screw capping machine can be used to seal plastic containers such as PET bottles and jars. This type of machine applies screw caps or screw lids in a uniform manner, ensuring that they are tightly secured.

Glass Containers

Glass Containers

Screw capping machines can also be used to securely close glass containers. These machines are particularly useful when capping jars with screw lids, as they ensure that the lids are tightened in a consistent manner and can guarantee a tight seal.

Metal Containers

Metal Containers

Screw capping machines can also be used to secure screw-top lids or caps on metal containers such as cans or tins. This type of machine can help to provide an effective and durable seal for these types of containers, ensuring that the contents are kept safe and secure.

11.Do Screw Capping Machines Have Printing Capability?

Have Printing Capability

The answer is yes – screw capping machines can be equipped with printing capability depending on the specific model and its features. This capability allows for customized product branding or labeling information to be applied, such as expiration dates, lot numbers, and barcodes.

Having this printer integrated into the screw capping machine not only increases efficiency but also provides a reliable and consistent way of labeling products. Furthermore, screw capping machines can be easily integrated with other packaging equipment for a complete automated packaging system to achieve the highest possible production speeds.

12.What Are Some Of The Common Screw Capping Machine Problems And How To Fix Them?

Common Screw Capping Machine

Over-Tightening

This is the most common screw capping machine problem. It can be caused by uneven screw caps, torque settings being too high, or improper screw cap seals.

Solution

To fix this issue, first check to make sure that all screw caps are consistent and properly seated before putting them on the machine. Additionally, reduce torque settings to a level that is suitable for screw caps. Finally, ensure screw cap seals are properly installed and of the right size.

Screw Jamming

This can be caused by worn-out screw heads or damaged screw threads.

Solution

To fix this issue, inspect all screw heads and threads prior to using them in the capping machine, replacing any that are worn or damaged. Additionally, use a screw thread lubricant to ensure smooth screwing and unscrewing of screw caps.

Poor Capping Performance

This can be caused by improper operation of the screw capping machine, such as not tightening screw caps enough or over-tightening them too much.

Solution

To fix this issue, make sure the screw capping machine is properly operated according to the manufacturer’s instructions. Additionally, ensure screw caps are tightened to the correct torque setting for optimal performance.

Leaks

This can be caused by loose or damaged screw cap seals.

Solution

To fix this issue, inspect screw cap seals prior to screwing them onto the screw capping machine, replacing any that are worn or damaged. Additionally, ensure screw caps are tightened to the correct torque setting for optimal performance.

Unscrewing

This can be caused by loose screw threads, improper screw cap seals, and incorrect torque settings.

Solution

To fix this issue, inspect all screw heads and threads prior to screwing them onto the screw capping machine, replacing any that are worn or damaged. Additionally, use a screw thread lubricant to ensure smooth screwing and unscrewing of screw caps. Finally, adjust torque settings to suit screw caps for optimal performance.

13.How Can Screw Capping Machine Production Be Optimized?

Screw Capping Machine Production Be Optimized

The following are some of the best methods for optimizing screw capping machine production:

Regular Maintenance: A well-maintained screw capping machine can operate more efficiently and last longer. Regularly cleaning the screw capping machine, inspecting its parts for wear and tear, and replacing any worn parts will help ensure that it continues to function at its best.

Adjustable Settings: Adjusting the screw capping machine’s settings to match the product being capped can improve its performance. Different screw capping machine models offer adjustable speed and tension, both of which should be adjusted according to the specific products being sealed.

Automation: Automating screw capping machine production can save time and labor costs. Automated screw capping machines can be programmed to cap a variety of products with different screw sizes and configurations, which can significantly reduce downtime.

Quality Control: Regularly testing the quality of screw caps is essential for optimizing screw capping machine production. Poor screw caps can lead to product spoilage and dissatisfaction, so it’s important to ensure that the screw capping machine is producing screw caps of the highest quality.

14.How Can You Choose A Screw Capping Machine That Suits Your Needs?

Screw Capping Machine-6

Choosing the right screw capping machine can be a daunting task. Fortunately, there are several important factors to consider when selecting the best screw capping machine for your needs.

First, consider the scope of your production needs. What size screw caps do you need to close and how many screw caps will you be producing? Do you need a machine that can handle high-volume production or something smaller for low volume needs? Knowing the scope of your needs will help narrow down your options.

Second, consider the type of screw caps the machine needs to accommodate. For example, there are screw capping machines that are designed to work with screw caps of different sizes and shapes. Make sure the machine you choose is compatible with your screw caps.

Third, consider the speed of your screw capping machine needs. How fast do you need your screw caps to be sealed? Faster machines can seal more screw caps in a shorter period of time, so it’s important to make sure the screw capping machine you choose can meet your speed requirements.

Finally, consider the cost of the screw capping machine. Different machines come with different features and capabilities, so they are likely to vary in price. It’s important to find a screw capping machine that fits your budget while also providing the features you need.

Taking these factors into account will help you make an informed decision when choosing a screw capping machine that best suits your needs. With the right screw capping machine, you can ensure quality screw caps are sealed securely and efficiently, helping to keep your production costs low.

CONCLUSION

Overall, the screw capping machine is an invaluable addition to any bottling facility. It is easy to use and can be adapted to fit different types of caps. This functionality makes it one of the best purchases a business in the bottling industry can make. Furthermore, its advanced technology and carefully designed components reduces time spent, preventing unnecessary complications or issues. If you’re looking for quality screw capping machine, then Allpack should be your first resort! We can guarantee that our machines will help you produce the best-capped products around! Don’t just take our word for it; contact Allpack today if you want more information about our services and screw capping machines!

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Screw Capping Machine from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

Screw Capping Machine: The Complete Buying Guide In 2024 Read More »

Top 10 Global Capping Machine Manufacturers: The Definite Guide In 2024

Capping Machine, Top 10

Top 10 Global Capping Machine Manufacturers: The Definite Guide In 2024

Capping machine is suitable for sorting, pressing and screwing caps of various food, medicine, chemical products, electronic products and bottled products. Different brands and models have different application scopes and usage methods of capping machines. If you are looking for a capping machine for yourself, then this capping machine manufacturers top list is your best choice.

Top 10 manufactures of capping machine in the world

Capping machine is mainly applied for sealing the plastic bottle, glass bottle. They adopt the pneumatic drive capping method, and are suitable for all plastic and glass bottles with threaded openings, such as condiment sauce bottles, canned aquatic products, canned fruits, canned vegetables, canned bean products, etc.

Here are the top list of manufacturers:

RANK	MANUFACTURES OF CAPPING MACHINE	HEADQUARTERS
1	Closure System International	USA
2	Marchesini Group	Italy
3	Kulp Makina	Netherlands
4	ALLPACK	China
5	Tecnocap S.p.A	Italy
6	Arol Group	Italy
7	Accutek Packaging	USA
8	Federal	USA
9	Karmelle	UK
10	APACKS	USA

1.Closure

CONTACT THIS COMPANY NOW

Headquarter: USA

Company Background & Information

Closure-Systems-International-Inc-(CSI)

Closure Systems International Inc (CSI) is a global leader in designing and manufacturing innovative closures for a wide range of applications in consumer and industrial markets. In addition to high quality closures and capping equipment, CSI provides unparalleled customer and technical services for high-speed application systems. Major categories served include carbonated soft drinks, bottled water, juices, isotonics, teas, adult beverages, dairy, foods, pharmaceutical and automotive fluids.

Key Products:

Series-W138-Capper

Series W138 Capper

Series-5000-Capper

Series 5000 Capper

Stainless steel turret
Stainless steel spindles with wear-resistant plastics
Stainless steel headsets
New modular spindle assembly

Recommend Reason

Closure Systems International Inc (CSI) is a global leader in designing and manufacturing innovative closures for a wide range of applications in consumer and industrial markets.
CSI’s cutting-edge closure solutions help customers maximize profits by increasing the marketability of their brands and optimizing their total cost of operations.
CSI’s sustainability expertise and sustainable product offerings ensure customers stay on top of market trends and consumer demands.
CSI is committed to helping their customers maximize their profits.

2. Marchesini

CONTACT THIS COMPANY NOW

Headquarter: Italy

Company Background & Information

Marchesini-Group

Marchesini Group was established in Pianoro in 1974 by virtue of the shrewd intuition of Massimo Marchesini, over the years the company has grown from a small, local business into a major industrial enterprise, thanks to a continuous process of mergers and acquisitions of complementary companies.

Key Products:

ML636

ML636

ML640

ML640

ML618

ML618

Stainless steel covered frame.
Separation between the bottle transport and mechanical area.
Machine main drive unit with electronic speed variation.

Recommend Reason

They design and produce a wide range of packaging machines and lines for the pharmaceutical industry, designed to promptly respond to any kind of request, from standard to extraordinary.
Since 1974 they have been one of the leading forces in the industry, because here ideas, people, technologies, solutions and everything we do are constantly inspired by the extraordinary.
They produce stand-alone machines and complete lines to handle the entire packaging process of pharmaceutical products, from start to finish.
They pursue their business model focusing on sustainability and social and economic responsibility.

3.Kulp Makina

CONTACT THIS COMPANY NOW

Headquarter: Netherlands

Company Background & Information

Kulp Makina is professional packaging machinery founded in 1984 in Netherlands. Kulp provides specially designed and manufactured long-life packaging machines with professional after sales service, KULP continues to lead the way with a desire for handing down its position gained with its – around- 1500 currently working machines domestically and abroad and contributes to development of the sector without compromising with quality.

Key Products:

KAP-932

KAP 932

KAP-937

KAP 937

KAP-938

KAP 938

Meter speed adjustable conveyor line.
Works with 380 volts / 50-60 Hz electrical power.
Heavy Duty Stainless Steel Frame.

Recommend Reason

Kulp provides full packaging process that can be covered in one line, starting from the feeding table, going throught the air rinser, the filling machine with optional diving nozzle system, an agitator or a double jacketed hopper.
Kulp provides whole sealing, the capping and the labeling machines before the packed products ends up on the collecting table.
Kulpconsiders their customers as long term partners, and promises reactivity and efficiency for their buyers.

4. ALLPACK

CONTACT THIS COMPANY NOW

Headquarter:China

Company Background & Information

ALLPACK is a professional packaging equipment manufacturer with 11 years experience in packing machine labeling, and they focus on round bottles. The company covers range of production areas like Carton Packaging, Sealing, Strapping, Vacuum Packaging, Capping Packaging, Labeling, Pharma Machinery, Coding and Marking machines, and so on. They can solve & support your packaging equipment challenges, so you can grow your business.

Key Products:

APC-D901-Pressure-Capping-Machine

APC-D901 Pressure Capping Machine

APC-D902-Capping-Screwing-machine

APC-D902 Capping Screwing machine

APC-D903-High-Speed-Capping-machine

APC-D903 High Speed Capping machine

Strong compatibility ,suitable for various sizes of cap shape,bottle shape.
A pair of cap dropping and wearing device suit for all kinds of bottle caps.
Cap unscrewing torque control, ensure the quality of the screw cap (optional).

Recommend Reason

With service of free shipping and return service, a money-back guarantee, Online support 24/7, and secure payment.
Provide massive and professional machinery and equipment. Various machines can provide different models to meet your different professional needs.
With the complete shop and return policies to meet your unsuitable machine needs. Responsible for the entire shipping and delivery procedures and procedures, and deliver it to your home or company with peace of mind.
Responsible for all after-sales problems. Provide you with a safe, secure, and trustworthy environment

5.Tecnocap S.p.A

CONTACT THIS COMPANY NOW

Headquarter: Italy

Company Background & Information

Tecnocap

Tecnocap is a worldwide metal packaging manufacturer, specialized in metal closures for glass jars and plastic containers. The Group is one of the biggest producers of tinplate and aluminum closures as well as aluminum monobloc aerosol cans and aluminum bottles for some of the world’s best known consumer brands in food, beverages, spirits, cosmetics, nutraceuticals, pharmaceuticals and industrial industries and household products.

Key Products:

TSM-250

TSM 250

TSM-500

TSM 500

Diameters: from 30 to 110 mm.
Container/Jar Height: from 63 to 258 mm.
Container/Jar diameter: from 38 to 168 mm.

Recommend Reason

The Group heavily invests in improving production performance, total quality management and lean manufacturing principles.
Tecnocap works closely with their customers to support them in reaching their sustainability targets by providing responsible packaging solutions.
They help their clients succeed by enhancing the identity of their brand and preserving the safety of their product.
They work as partners and advisors to their clients, improving existing products and developing new designs & engineering solutions.

6. AROL

CONTACT THIS COMPANY NOW

Headquarter: Italy

Company Background & Information

AROL

AROL was founded in 1978: at first specialized in wine industry, it steadily grew as a global provider of capping solutions. AROL SpA designs, produces and globally delivers capping machines & capping turrets, caps feeding systems, caps orienting systems and caps sorters. AROL provides worldwide leading brands in several business areas: food, beverage, wine & spirit, household care, personal care, pharmaceutical and chemical.

Key Products:

Capper-for-Aluminium-Caps

Capper for Aluminium Caps

Capper-for-Plastics-Caps

Capper for Plastics Caps

Stainless steel components
Suitable for complete washing

Recommend Reason

AROL is the specialist in filling and capping of glass containers with twist-off caps for liquid, semi-liquid and pasty products.
AROL develops and produce filling, capping and labelingsystems mainly for the cosmetics industry.
AROL is engineering, and the specialist in designing and manufacturing machines for the production, assembly and cut of aluminium and plastic caps and closures.

7. Accutek

CONTACT THIS COMPANY NOW

Headquarter: USA

Company Background & Information

Accutek

Accutek Packaging is one of the largest privately held packaging machinery manufacturers in the United States. They are a leading developer and manufacturer of complete turnkey packaging solutions. Accutek Packaging Equipment offers a wide variety of packaging equipment that can be custom tailored to each unique product, including filling machines, capping machines, labeling machines, conveyors, and complete packaging systems.

Key Products:

ACT-8

ACT-8

AUTO-ACCUSNAP-CAPPER

AUTO ACCUSNAP CAPPER

ASC-SERIES

ASC SERIES

Bulk feed cap elevator
Container spacing wheel
Custom conveyor and mounting assemblies

Recommend Reason

Accutek engineers are always working to modernize and simplify their designs giving our customers a competitive edge with the most efficient, technologically advanced packaging equipment.
They can customize machinery to accommodate your product and even work with your existing packaging line.
They will supply the highest quality packaging equipment while maintaining customer support, promoting product innovations, and continuously providing fair and competitive pricing.
Their diverse line of equipment has been engineered for products in the food, pharmaceutical, oil, cosmetic, chemical, and other specialty industries.

8.Federal

CONTACT THIS COMPANY NOW

Headquarter:USA

Company Background & Information

Promach

Federal is a subsidiary from ProMach and is a family of product brands that operate across the entire production line in distinct business lines: filling, bottling and capping, decorative labeling, flexibles and trays, pharma, handling and sterilizing, labeling and coding, robotics end of line, and systems and integration with the headquarters ear Cincinnati, Ohio, with facilities worldwide.

Key Products:

GEM-Cappers

GEM Capper

Federal-30-10

Federal 30-10

30 filling valves and 10 capping heads
Enclosure with poly doors
1 set of bottle handling – change parts
Wash rings

Recommend Reason

They are passionate about helping their customers, developing better solutions, and seeing projects -big and small- to the end.
Their number one ambition is to deliver high-level production line solutions.
From standalone machines to complete turnkey lines, they are relentless in accomplishing the ultimate goals of delivering performance and upholding the reputations of our customers.
They hold themselves accountable with their coworkers and their customers and are dedicated to every project they engage.

9.Karmelle

CONTACT THIS COMPANY NOW

Headquarter:UK

Company Background & Information

Karmelle

Karmelle is a UK company who is specializing in the design, manufacture and installation of bespoke liquid filling machines, capping machines and labellers is what we are all about. With over 30 years of proven experience in the liquid packaging industry, Karmelle offer a wide range of equipment to develop cost effective solutions for our clients’ individual requirements.

Key Products:

EK40-Capping-Machine

EK40 Capping Machine

Rotary-Capping-Machine

Rotary Capping Machine

Environmental guarding
Fully automatic system
Mitsubishi PLC driven system

Recommend Reason

They supply equipment to the food and drink, pharmaceutical, cosmetic, chemical and lube oil industries.
They are capable of accurately filling and labelinga variety of containers including bottles, bottle in box, jars, vials, canisters, barrels and much more.
Over the years they have filled water, juice, oil, peanut butter, yogurt, e-cigarette liquids, washing up liquids.
They are well-qualified to provide bespoke liquid packaging solutions for your company.

10.APACKS

CONTACT THIS COMPANY NOW

Headquarter: USA

Company Background & Information

APACKS manufacturers a comprehensive line of filling machines as well as capping machines to handle different ranges of container sizes, fill weight or volume, and product types. APACKS designs and builds packaging machinery to help their customers reach their unique production goal. They build a wide range of filling equipment tailored to the way you do business. Their equipment is hand-built right in America.

Key Products:

Automatic-Servo-Chuck-Capper

Automatic Servo Chuck Capper

Automatic-Spindle-Capping-Machine

Automatic Spindle Capping Machine

Power height adjustment
Comprehensive universal cap chute and escapement
Hand-wheel operated
Gripper Belt height and width adjustment

Recommend Reason

They engineer and build packaging machinery and systems for the packaging industry.
They are not only a filling equipment manufacturer, they design and build Bottle Rinsers, Capping Machines, Cap Sorters, Conveyors, and Bottle Loading and Accumulating Turntables.
Their equipment is engineered for durability and ease of use. We also work with leading manufacturers of Labeling Machines, Induction Sealers, Coding Machines, Shrink Wrapping Equipment, Case Building and Palletizing Machines to deliver complete turn-key packaging lines.

Conclusion

With this definite guide of top 10 global capping machine manufacturers will bring you the inspiration choose the right one of this capping machine. The wide range of uses and powerful functions of the capping machine can bring you unlimited benefits and your business promising future. If you are considering such kind of machine, you can consult us in detail, and we will do our best to make you satisfied and offer you the best and most suitable one for you.

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Capping Machine from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

Top 10 Global Capping Machine Manufacturers: The Definite Guide In 2024 Read More »

Small Capping Machine: The Complete Buying Guide In 2024

Capping Machine

Small Capping Machine: The Complete Buying Guide In 2024

Do you have a small production facility or are you considering expanding your current operations? If so, investing in a small capping machine might be the perfect solution for you! This versatile piece of machinery can easily and quickly cap all kinds of containers ranging from beverage bottles, jars to food cans. With a wide range of features available from various companies, there’s sure to be one that suits your needs perfectly.

Small Capping Machine

In this blog post, we will explore on how a small capping machine works, benefits of investing in a small capping machine, different types available on the market today as well as offer tips for deciding which type is best for your applications. Read on for some key information about these machines so that you can make an informed decision when selecting the best option for your particular application.

Add a header to begin generating the table of contents

1.What Is A Small Capping Machine?

Small Capping Machine-1

A small capping machine is a device that is used to fasten lids or caps onto containers. It is a popular choice for small production runs and low-volume applications, such as small-scale food processing or small craft breweries.

Small capping machines are typically hand-held and manually operated, making them easy to move around the production floor and easy to adjust for different types of caps and containers. Also, these machines offer an economical solution for small-scale production, as they require relatively little space, energy, and maintenance compared to larger models.

Additionally, small capping machines can be configured to fit various bottle sizes and cap shapes thus offering a versatile option for small businesses. Small capping machines are often used in food and beverage production, small medical facilities, small-scale manufacturing operations, or any other industry where small packaging runs are the norm.

2.What Are The Components Of A Small Capping Machine?

Capping Head

Capping Head

The capping head is the part of the small capping machine that actually applies the cap to the container. It typically consists of a plate with several pins or “fingers” that will grab a cap and press it onto a container as it passes through.

Cap Sorter

Cap Sorter

The cap sorter is the part of the small capping machine that sorts and feeds caps to the capping head. It typically consists of a hopper or bowl where caps can be placed, a vibrating mechanism to sort them, and a wheel that will feed a single cap at a time for application by the capping head.

Conveyor Belt

Conveyor Belt

The small capping machine has a conveyor belt that brings containers to the capping head for cap application. The conveyor belt is adjustable so that it can be set to move at different speeds and bring bottles of different sizes through the small capping machine.

Safety Guards

Small capping machines typically come with safety guards to protect operators from the moving parts of the small capping machine. The guards are usually made of plastic or metal, and they can be adjusted to fit different sizes of small capping machines.

Control Panel

Control Panel

The small capping machine has a control panel that allows operators to adjust settings, start and stop the small capping machine, and monitor its operation. This panel typically consists of a display screen, push-buttons, and knobs that allow operators to make adjustments as needed.

Motor

The small capping machine is powered by an electric motor which drives the conveyor belt and the other moving parts of the small capping machine. The motor is typically housed in a separate casing which keeps it safe and provides easy access for maintenance.

Sensor

Sensors are used to detect when containers have passed through the small capping machine and the cap has been applied correctly. This helps ensure that all containers are properly capped before they move on to the next part of the production process.

3.What Are The Benefits Of A Small Capping Machine?

Ensures Product Integrity

Ensures Product Integrity

Small capping machines provide greater control to ensure the integrity of the product. This includes accurate and consistent placement of caps, as well as a secure fit that prevents leakage or tampering.

Improves Product Quality

Small capping machines allow for a more efficient and precise process which results in better-looking products with improved quality and consistency.

Prevents Leakages

Prevents Leakages

Small capping machines are designed with small seals, which can fit precisely around small necks of bottles and containers. Therefore, small capping machines provide an airtight seal that prevents any leakage of liquid from the bottle or container.

Increased Efficiency

Small capping machines are designed to be compact and efficient. They generally require less manpower, are faster than manual capping processes, and can handle small batches of products quickly with ease.

Tamper Evidence

Tamper Evidence

Small capping machines can be used to provide tamper-evident seals for small containers, helping to deter tampering and protect against counterfeiting. This is particularly important in industries that require strict quality control regulations.

Quality Control

Small capping machines help ensure quality control during the capping process by consistently applying caps of uniform size, shape, and pressure. This helps ensure that the product has been securely sealed and will not leak during transportation or storage.

4.What Are The Applications Of A Small Capping Machine?

Food Industry

Food Industry

Small capping machines are used in the food industry to seal bottles and jars with metal, plastic or aluminum caps. This ensures that the product remains fresh for longer periods of time and is securely contained.

Pharmaceutical Industry

Pharmaceutical Industry

Small capping machines are widely used in the pharmaceutical industry to accurately apply tamper-evident seals to medicine bottles. This ensures that the products remain secure and unaltered until they reach the consumer.

Cosmetic Industry

Cosmetic Industry

Small capping machines are used in cosmetics manufacturing to securely cap small containers, such as lipstick tubes and mascara wands. This helps to ensure the product is safely contained and tamper-proof for consumers.

Chemical Industry

Chemical Industry

Small capping machines are used in the chemical industry to precisely apply caps to small containers, such as bottles and vials containing hazardous chemicals or laboratory samples. This helps to ensure that these items remain securely sealed and free from contamination.

Beverage Industry

Beverage Industry

Small capping machines are used in the beverage industry to securely seal small bottles and cans with metal, plastic or aluminum caps. This helps to ensure that the beverages remain fresh and unaltered until consumed.

5.How Does A Small Capping Machine Work?

Small Capping Machine Work

The small capping machine operates by first loading the caps into a hopper. The small caps are then fed through a chute and into a spinning wheel that aligns them in position for application.

From there, the small caps are delivered to a chuck or mandrel where they are held in place with adjustable jaws. The cap is then moved by a carriage and placed onto the container’s opening.

As soon as the capping operation is complete, the retainer grabs hold of the cap and keeps it securely in place until it is unscrewed.

6.What Are The Different Types Of A Small Capping Machine?

a) Automatic Small Capping Machine

Automatic Small Capping Machine-5

These small capping machines are fully automatic and require no manual labor or supervision. They can be used to clamp, unscrew and reseal any type of caps at a consistent speed. This machine is suitable for large production lines and can handle high volumes of small caps quickly and efficiently.

Components

Automatic small capping machines are typically composed of the following components:

Bottle Handling System

This system is responsible for transporting bottles from the filling station to the capping station. It uses belts, wheels, and other mechanical elements to move them quickly and accurately.

Cap Sorting System

In order to ensure that the right size and type of cap are used, automatic small capping machines have a dedicated sorting system. This allows them to quickly identify and sort caps into their proper categories.

Feeder System

Automatic small capping machines also feature a feeder system which can dispense multiple types of caps at once, allowing for faster production rates.

Capping Head

The capping head is the part of automatic small capping machines that physically applies the cap onto the bottle. This part is usually equipped with a motor and gear system to provide enough torque to securely apply caps.

Safety System

Automatic small capping machines also have safety systems in place to ensure that operators do not come into contact with the moving parts of the machine. These systems typically use sensors and light curtains to detect any potential hazards.

Control System

Automatic small capping machines are usually equipped with a control system that allows for easy operation and maintenance. This system can be used to set parameters such as speed, torque, and other settings.

Working Principles

The automatic capping machine first positions the containers properly for lidding or capping. This is done by using an automatic feeder system that ensures each container is properly aligned and in place.

The automatic small capping machine then applies a cap onto the container, using a specialized clamping device that firmly seals it in place.

After the capping is complete, the automatic small capping machine inspects the container to ensure that it has been sealed properly. If any defects are detected, the machine will reject and discard the faulty containers.

Finally, after inspection is complete, the automatic small capping machine dispenses a label onto each container. This label includes product information and other details, such as price and bar coding.

Applications

Automatic small capping machines are commonly used in the food industry to seal jars or bottles with condiments such as ketchup, mustard, mayonnaise, and salad dressings. They can also be used to seal cans containing food items such as fruit, vegetables, and grains.

In addition to the food industry, automatic small capping machines are also used in the pharmaceutical and cosmetics industries to securely seal bottles with medication or creams.

Moreover, automatic small capping machines are often used for industrial applications such as sealing containers that contain chemicals, oils, or other hazardous liquids and materials.

Finally, automatic small capping machines can also be used for packaging and shipping applications, ensuring products are tightly sealed for protection during transit.

b) Semi-Automatic Small Capping Machine

Semi-Automatic Small Capping Machine

These small capping machines are designed to be operated manually and require the operator to clamp, unscrew and reseal any type of caps with one hand. This machine is suitable for small or medium-sized production lines.

Components

The components of semi-automatic small capping machines include:

Automated Feeder

This is a device that is used to feed empty bottles into the machine, which are then filled and capped with appropriate lids.

Dispensing Nozzle

A dispensing nozzle is responsible for providing accurate dosages of the liquid being packaged.

Lid Placing Unit

This component places lids on the bottles before they are sealed with a cap to ensure no leakage occurs.

Sealing Device

The sealing device is responsible for crimping the caps onto the bottles tightly and securely to prevent leakage.

Automated Conveyor

The automated conveyor is used to move the filled and capped bottles from one end of the machine to the other, where they can be collected.

Control Panel

This part of semi-automatic small capping machines is responsible for providing the user interface to control the operations of the machine, such as setting parameters and speeds.

Safety Guards

This part of semi-automatic small capping machines helps to ensure that all parts are safe from harm during operation by preventing any fingers or hands from getting caught in moving components.

Emergency Stop Button

This part of semi-automatic small capping machines is designed to immediately stop the machine in the event of an emergency.

Working Principles

The semi-automatic process begins by placing an empty bottle into the machine, where it will be held in place before the insertion of the cap. A motor then drives the head of the capping machine, screwing the cap onto the container. When properly sealed, the bottle is released and can be sent to the next stage of production.

Applications

Semi-automatic small capping machines can be used in the food and beverage industry to seal products such as sauces, condiments, syrups, oils and juices.

Semi-automatic small capping machines are also used in the pharmaceutical, cosmetics and chemical industries to apply caps on bottles, jars and containers.

Additionally, semi-automatic small capping machines are used to seal cans for storing products such as paints, insecticides and lubricants.

c)Manual Small Capping Machines

Manual Small Capping Machines

Manual small capping machines are manual devices used to accurately seal a variety of containers with tight-fitting caps. These manual machines can be used for both plastic and metal containers, allowing users to easily and quickly secure materials without having to manually screw on each cap.

Manual small capping machines are also capable of applying different types of caps with various shapes, such as tamper evident caps and flip-top caps. Furthermore, manual small capping machines often feature adjustable torque settings for the perfect tight fit.

Components

Tabletop Surface

A manual small capping machine must have a stable tabletop surface to place the containers onto and allow for manual rotation of the cap. This flat, horizontal surface is usually made from stainless steel or aluminum and should have enough room to accommodate large diameter bottles or jars.

Bottle Feeder

The manual small capping machine must have a bottle feeder to ensure efficient manual cap insertion. The manual bottle feeder should be adjustable and capable of accommodating various cap sizes and shapes.

Capping Wheel

This part of the manual small capping machine is responsible for tightening caps on containers. It consists of two concentric wheels and must be able to secure caps of different diameters and shapes.

Cap Dispenser

The manual capping machine must have a cap dispenser that can deliver the correct type and size of cap onto the container for manual insertion by the operator. It should also be adjustable to accommodate various types of caps.

Chute/Rejecter

The manual capping machine must also have a chute or rejecter to separate properly capped containers from those with improperly secured caps. This ensures that only properly sealed containers are sent for further processing.

Control System

The control system is responsible for monitoring all of the manual capping machine’s operations, such as cap supply, manual rotation, and proper cap placement.

Working Principles

Generally, the process of manual small capping machines applies two main principles: compression and torque. The first principle involves compressing the cap tightly against the neck of the container with manual pressure. This helps ensure that the cap is properly sealed and will not come off during transport.

The second principle involves applying the proper amount of torque to secure the cap in place. This is usually done with manual wheel-style tightening devices, which can be adjusted to provide different levels of torque depending on the container’s size and the type of cap being used.

Together, these two principles ensure that manual small capping machines can securely and reliably cap bottles and containers of various sizes.

Applications

Manual small capping machines are suitable for many industries such as food, beverage, chemical, pharmaceutical and cosmetic industries as they provide an efficient way to securely close containers.

d)Pneumatic Small Capping Machine

Pneumatic Small Capping Machine

These small capping machines use compressed air to power their motors. They can be used to clamp, unscrew and reseal any type of caps at a consistent speed. This machine is suitable for large production lines and can handle high volumes of small caps quickly and efficiently.

Components

Compressor

The pneumatic small capping machine contains a compressor to generate pneumatic power for the caps being applied. This can be either an electric or air compressor depending on the model of machine.

Pressure Regulator

A pressure regulator is used to control the pneumatic pressure produced by the compressor. This helps to ensure the pneumatic force applied to the cap is consistent and within tolerance of the requirement.

Cap Tightening Unit

The pneumatic small capping machine contains a cap tightening unit that applies pneumatic pressure on the cap to secure it in place.

Control Panel

A control panel is used to control the pneumatic small capping machine. This allows users to program parameters such as tightening force and cycle time.

Vacuum Chuck

A vacuum chuck is used in pneumatic small capping machines to grip the containers for precise placement of the cap on the bottle or container.

Bottle Turner

A bottle turner is used to rotate the containers and ensure that all sides of the cap are tightened securely.

Sensor

Sensors are used in pneumatic small capping machines to detect the presence of a container, position it correctly for cap application, and check if the cap has been properly applied.

Counter

A counter is used to detect the number of containers that have been processed and can be used for quality control or production tracking purposes.

Motors

The pneumatic small capping machine also contains motors which power components such as the cap tightening unit, vacuum chuck, bottle turner and sensor.

Conveyor

A conveyor is used to move containers through the pneumatic small capping machine and ensure the caps are applied consistently.

Actuator

An actuator is used in pneumatic small capping machines to apply pneumatic force on the cap to secure it in place.

Safety Guard

A safety guard is used to protect users from the pneumatic small capping machine’s moving parts and ensure that it is operated safely.

Electrical Panel

An electrical panel is used in pneumatic small capping machines to control components such as the motors, sensors and actuator.

Control System

The pneumatic small capping machine contains a control system to monitor and manage the system’s operation. This includes parameters such as tightening force, cycle time and total production quantity.

Emergency Stop Button

An emergency stop button is used in pneumatic small capping machines to quickly shut down the system in case of an emergency. This helps to ensure that users are safe while operating the pneumatic small capping machine.

Working Principles

Pneumatic small capping machines are powered by pneumatic pressure, which means they use compressed air to drive their operation.

The pneumatic pressure is generated from an air compressor, and this pressure is used to power pneumatic cylinders, solenoid valves and other pneumatic components that are part of the machine.

These pneumatic components work together to apply force and torque to the caps, enabling them to be securely tightened onto the containers.

Applications

Pneumatic small capping machines are used in a variety of industries for a variety of applications. In the food and beverage industry, pneumatic small capping machines help to package products quickly and efficiently. They are also commonly used in pharmaceuticals, cosmetics, and other industries where precise sealing is needed.

7.What Is The Difference Between Automatic Small Capping Machines And Semi-Automatic Small Capping Machines?

a) Automatic Small Capping Machine

Automatic Small Capping Machine-3

b) Semi-Automatic Small Capping Machine

Semi-Automatic Small Capping Machine-3

The main difference between automatic and semi-automatic small capping machines is the amount of human input required. Automatic machines require no manual intervention in the capping process, using sensors to detect the size of bottle caps, adjusting the speed and pressure accordingly. Conversely, semi-automatic machines rely on an operator to feed bottles into the machine and adjust the pressure settings.

In addition, automatic machines are typically faster than semi-automatic machines and can handle a larger quantity of bottles at one time. This makes them ideal for high production applications where speed is essential. Semi-automatic machines on the other hand, are more suitable for smaller production runs or when a greater degree of control is needed.

In terms of price, automatic machines tend to be more expensive than semi-automatic machines as they require more advanced technology and additional components. However, the cost savings gained from automatic machines often offset the initial investment due to their higher speed and efficiency.

8.Are There Any Alternatives To Small Capping Machines That Small Businesses Can Use?

Alternatives

The small capping machine is a popular choice for small businesses, as it is an affordable and easy-to-use solution to apply labels or caps onto bottles or containers. However, there are also other solutions that small businesses can consider when looking for alternatives to small capping machines.

For example, manual cappers are a cost-effective and easy-to-use alternative to small capping machines. Manual cappers are small tools that can be used to quickly and accurately apply caps onto bottles or containers. They are often more cost effective than small capping machines, and they also require less maintenance.

Another option is to use a hand-held electromechanical capper. These machines are small and portable, but they provide a powerful capping solution for small businesses. They use an electromagnetic field to apply caps onto bottles or containers quickly and accurately, making them an ideal alternative to small capping machines.

Finally, automated cappers can also be used as an alternative to small capping machines. Automated cappers are more expensive than small capping machines, but they can be used to apply labels or caps onto bottles or containers quickly and accurately. They are also usually easier to maintain and require less maintenance than small capping machines.

9.What Are The Differences Between Small Capping Machines And Traditional Packaging Machines?

Traditional Packaging Machines

The main difference between small capping machines and traditional packaging machines is in their size and features. Small capping machines are small and lightweight, making them easier to handle and transport than traditional packaging machines.

Additionally, small capping machines are more efficient than their larger counterparts; they can process small batches much faster than large-scale packaging machines, allowing for greater flexibility and shorter lead times.

Furthermore, small capping machines offer increased safety features; they are designed to limit the risk of injury and protect operators from potential hazards. Ultimately, small capping machines provide a convenient and cost-effective solution for small-scale packaging needs.

10.What Type Of Containers Can Be Sealed Using A Small Capping Machine?

Plastic Containers

Plastic Containers

Small capping machines can be used to seal small plastic containers including jars, tubs, and pouches. The type of cap that is used will depend on the material of the container and its size.

Metal Containers

Small capping machines can also seal small metal containers such as cans and tins with lids or caps.

Glass Containers

Glass Containers

Small capping machines are capable of sealing small glass bottles with a variety of caps such as screw, pushdown, and snap on.

Aluminum Containers

Small capping machines can also be used to seal small aluminum cans with a variety of caps as well.

11.How Can Small Capping Machine Production Be Optimized?

Small Capping Machine-6

Increase Small Capping Machine Speed

Make sure the small capping machines are running at optimal speeds to maximize output while minimizing errors and waste.

Employ Quality Control Measures

Quality control measures such as inspections should be put in place to ensure small capping machines are producing the best quality product with minimal defects.

Invest in Quality Components and Materials

Investing in high-quality components and materials can help small capping machines operate more efficiently and increase the speed of production. Quality components also last longer, reducing the need for frequent repairs and maintenance which can lead to costly downtime.

Ensure Regular Maintenance

To keep small capping machines running in top form, it is important to perform regular maintenance checks and tune-ups. This should include checking all components for wear and tear, lubricating moving parts, and replacing any worn out or damaged components.

Adjust Speed Settings

By adjusting small capping machine speed settings to the appropriate output rate, manufacturers can achieve higher output rates without compromising on quality of production.

12.What Trends And Innovations Should Small Businesses Look Out For In Small Capping Machines?

Automation

Automation

Small capping machines can be automated to reduce manual labor and increase production speed. Automated small capping machines are more efficient, require fewer personnel, and result in higher-quality products.

Digitalization

Many small capping machines now come equipped with digital interfaces that allow operators to quickly change settings, monitor production efficiency, and access real-time data. This helps small businesses maximize their resources and stay competitive in a rapidly changing market.

Connectivity

Connectivity

Small capping machines can now be connected to the internet, enabling small businesses to easily communicate with their suppliers, customers, and other stakeholders. This connectivity can help small businesses better manage inventory and provide faster customer service.

Safety

Many small capping machines are now designed with safety features that help protect workers from potential risks. Such features include emergency stop buttons, noise reduction systems, and intuitive design that helps operators more easily understand how to use the small capping machine safely.

13.What Are The Maintenance Procedures For A Small Capping Machine?

Follow these maintenance procedures to keep your small capping machine running smoothly and with minimal issues.

Testing

Testing

Test the small capping machine to ensure it is working correctly prior to use. Adjust any small settings or tweaks as necessary.

Cleaning

With a soft cloth and mild detergent, wipe down all of the small capping machine’s components to remove any dirt or dust.

Inspection

Inspection

Check for any structural damage to the small capping machine, such as cracks or dents in the body, and repair them accordingly.

Lubrication

Lubricate any small capping machine components that move or rotate, such as screws and bolts, to reduce wear on them and ensure smooth operation of the small capping machine.

CONCLUSION

A capping machine is a device that helps in the packaging process of various products by putting caps on them. Allpack is one of the leading suppliers and manufacturer of small capping machines. Therefore, if you are looking for a high-quality and durable capping machine, then you should definitely get in touch with Allpack. We have a wide selection of small capping machines that will meet your needs. Contact us today for more information. Our team of experts will be more than happy to assist you in choosing the right machine for your needs.

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Small Capping Machine from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

Small Capping Machine: The Complete Buying Guide In 2024 Read More »
